In a big push to get the Pelican luggage attached to the bike before a trip to the Delaware Water Gap, I spent a lot of evenings and a couple weekends frantically trying to finish a workable design and get it prototyped.  As mentioned in the last post, I had what seemed like a workable puck design all sorted out, but the more complex latching/locking component still needed work.

I wasn’t sure at first if I was going to design it such that the Givi rack needed to be modified, perhaps with a different catch component.  In the end, I decided the more interesting challenge was to make it work with an unmodified rack, and also felt this would make a better end product.  So, I set off with this goal, and spent a couple of days trying out different design ideas on paper, and eventually refined them into CAD models.

The approach I ended up with would require a significant hole to be cut in the Pelican cases, for the end of the catch to poke into the case.  I could have avoided this, at the cost of making the bike wider when it had luggage mounted.  I deemed this an acceptable tradeoff, and knew I could solve the case breech with some clever gasketing and another machined plastic part.  I ran out of time to complete this part before the trip, but with some mis-use of thick plastic sheeting and gaffer tape, I came up with a quick fix that worked fine for the trip.

Working out a locking mechanism was also a bit of a challenge, but in the end I came up with an acceptable approach which seems like it will be secure enough for the application.  Unfortunately, I also ran out of time to actually fabricate the locking mechanisms before the trip I had planned, so I used a cable lock and padlocks to keep the cases secure to the bike.  In the near future I will complete the locking mechanism.

Above is a video showing the simple process for attaching and removing the case.  Ultimately, the design ended up being quite solid, and survived an 800 mile shakedown trip with no issues to speak of at all, aside from the inconvenience of not being able to lock them up easily.  It’s not out of the question to improve the strength of the setup even further in the future with a metal backer plate, to be installed inside of the Pelican case.  It’s fairly rigid as it is, using just the durable plastic of the case as support, but it may not survive multiple drops of the bike onto the cases.

The cramped cockpit and limited cargo options of my Kawasaki Ninja EX500 weren’t going to suit my long-term desires for a motorcycle, and I had long been bitten a bit by the adventure touring bug after watching the Long Way Round/Long Way Down series a few years ago.  Having champagne tastes and more of a reputable microbrew budget, I decided to try to find myself a relatively new low-mileage Suzuki V-Strom.  After a couple of weeks of scouring Craigslist, I turned up a nice looking bike in Vermont, and the rest, as they say, is history.

Reeling a bit from the purchase in these tighter economic times, I was not really in a position to go out and plunk down big bucks for the highly regarded Touratech Zega setup, as featured on Ewan and Charley’s bikes in both Long Way series.  I needed a more economical approach that would result in a functional and high quality luggage solution, and look acceptably nice on the bike.  Some DIY was not a problem, and in fact welcome.

I figured my best bet for getting the project done in a reasonable time frame was to start with some off-the-shelf available side racks for the bike.  Sure, I could learn to weld (and in fact, have equipment on loan from my friend Dave to start that process), but there was no way I would be able to produce a nice set of racks in a couple of weeks, which is a deadline based around a trip that I’ve been invited to join.

So, after looking at the options for side racks for the V-Strom, it seemed the least expensive bet was the Givi tubular side racks.  The runner up was the common SW Motech side racks with quick-removal system, but they are more costly and less secure (without modifying them to be more permanent anyway).  Other options were available, but most were specific to particular brands of side cases.

With the side racks decided, choosing cases was next.  Pelican cases are a popular choice for DIYers – they’re waterproof, warranted for life, durable as heck, and have their own sort of industrial/military charm to them that carries a certain robust function-over-form look.  In fact, a company called Caribou Cases makes a commercially available case system out of Pelican cases, and adds some nice features like case locks and quick release brackets.   Twisted Throttle also offers their own spin on the idea with their Storm case system.  Many people have done DIY systems, either mounting them to the side racks semi-permanently (not ideal in my opinion), using some off-the-shelf “pucks” which allow the case to be released from the rack only by opening the case first, or building somewhat crude DIY quick release systems.

After what seemed like days of deliberation, I finally decided on the Pelican 1550 cases, providing around 34 liters of storage each.  I planned to design and fabricate my own elegant locking quick release system that would mate to the Givi side racks.  In the short term I plan to use padlocks to lock them shut, but long term the goal is to add my own case lock mechanisms to the cases, a la Caribou.

After spending an evening sketching out ideas, and another evening finishing up some preliminary CAD drawings, I have the first part of the design modeled.  The idea is to create a mate to the two protruding pegs that are located on the bottom of the Givi racks.  Externally, each mating puck will consist of a durable plastic component (shown in green in the CAD) with a machined channel that captures the peg on the Givi rack.  It will be backed up by an aluminum disc with a counterbored hole to give the plastic component more strength to dissuade it from splaying at the open end.  The whole puck assembly will bolt through the back side of Pelican cases, with the plastic part facing outward.  Inside of the Pelican case, the bolts will be backed up either with fender washers or a similarly shaped metal disc with the matching three holes.  I am undecided on whether I feel threading into the plastic peg receiver will be sufficiently strong or if I will need to countersink the bolts and keep the heads on the outside of the case, with the nuts inside.

This handles the concept for the two bottom points of each case, with two of these peg receiver assemblies to be installed in appropriate places on the case.  The trickier part is a durable locking mechanism.  I have some ideas sketched on paper that I believe will work, but I need more design time before I can present them.  I am fairly certain I will be removing the latch component from the Givi racks (the protruding triangular bit on the top rung of the rack) and designing my own component to replace it.

My little EX500 bike is a bit cramped for me.  One of the worst problems is that my wrists, especially my throttle wrist, have been going numb even after only short rides.  I thought it would be worth trying some handlebar risers to bring the grips a bit closer to me, and improve the angle between my wrist and the bar.  There are some commercially available risers for the EX, but given that I have a CNC machine and a penchant for making things more difficult than they need to be, I thought I’d try making my own.

The basic idea of the commercial risers seemed sane enough, so I figured I’d just copy them.  The only real trick was measuring up one of the flanges on the handlebar, which I did a couple of weeks ago on a cool and rainy Saturday morning.  With a bit of guesswork and a few 1:1 printouts, I was able to zero in on a close match to the OEM handlebar flange, and I knew I was on my way.  After staring at the CAD for a short while, I determined I would go one step further and do a bit of a custom twist, and add tabs to hold a small “dashboard” for a GPS mount or other possibly for accessories like a Powerlet plug.

I ordered a couple of large chunks of 2024 aluminum bar stock (1.5″ x 3.5″ x 10″) off of eBay for a pretty good price, tracked down the longer M8-1.25mm bolts I would need to replace the stock bolts in the handlebars (I used 50mm length), and picked up a new 3/8″ 3 flute endmill with a 1.5″ cut length so I could actually mill the thick stock.  With all of the materials in hand, and the prospect of a bunch of motorcycling coming up this weekend, I figured I’d push to try to get the risers fabricated in an evening, and was successful, barring a couple of recoverable hiccups.

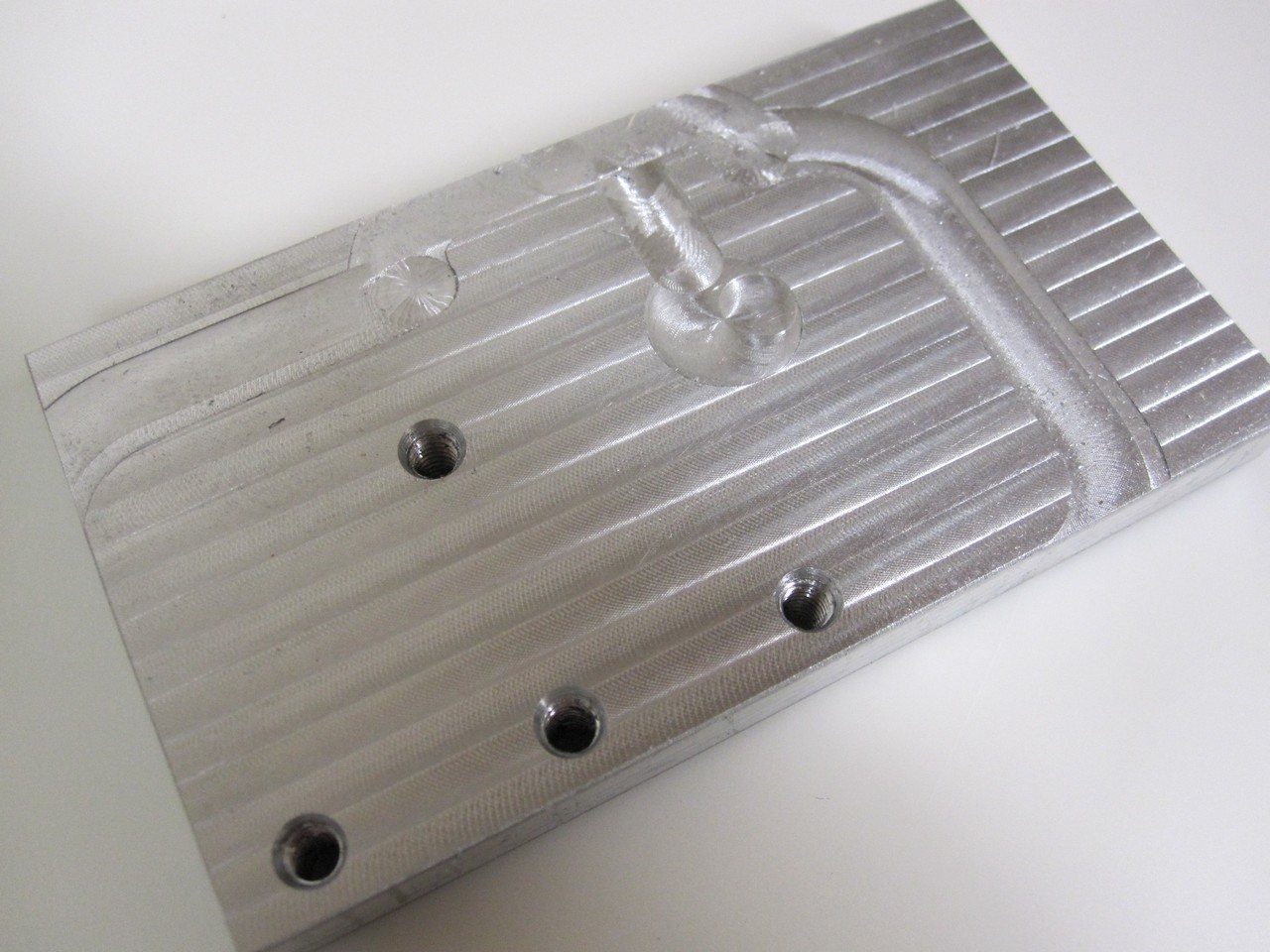

This project is the first when I really made use of the new Tormach tooling system that I bought with all of my leftover nickels and dimes a couple months ago.  I didn’t do anything super fancy, but the main part of the machining did have one tool change.  Had I done all of the drilling by CNC instead of manually, I would have done several more tool changes.  The major lesson learned is that the drawbar really needs to be tight, much tighter than is typically required for a normal R8 collet.  This is the second instance where I’ve had the tool get loose in the Tormach collet and dive into the workpiece.  Thankfully it was during contouring, and I was able to recover, though I did lose precision on the part because I had to re-zero it.  The corollary lesson is that I need to more diligently create and use a zero touchoff point for X and Y so in case of having to re-zero I can get closer than I did this time.

The third major area is improving my fixturing techniques.  I lose some amount of precision when I bolted the workpiece down to the fixture plate that I made.  I simply was not able to get it to line up with the original drill positions as closely as I wanted.  I think the cheap Chinese 5/16″ bolts I was using were all bent and forcing the workpiece this way and that, not allowing me to properly align it with the soft hammer and dial indicator.

All in all, it was a low precision part so none of the mistakes/problems really mattered.  And, as you can see by the photos, it fit perfectly fine despite the troubles.  In fact, it was one of the easiest fitups I’ve done – no problems whatsoever mounting the risers on the motorcycle this morning.

Next up is to measure and design the crossbar “dashboard” plate which will mount between the two tabs that protrude.  There will be some careful balancing of where that plate falls, to make sure I still have enough room for the ignition key.

12►

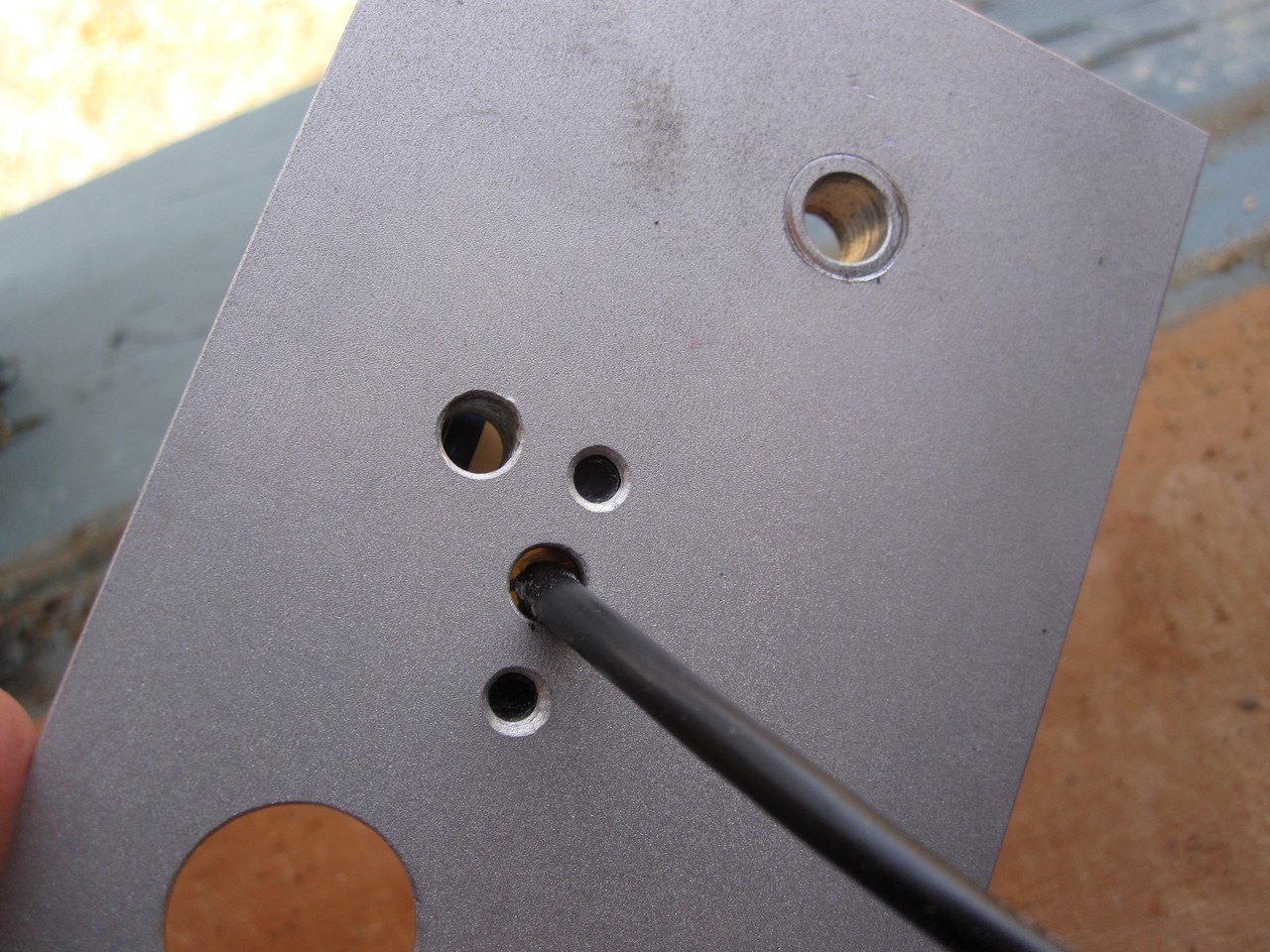

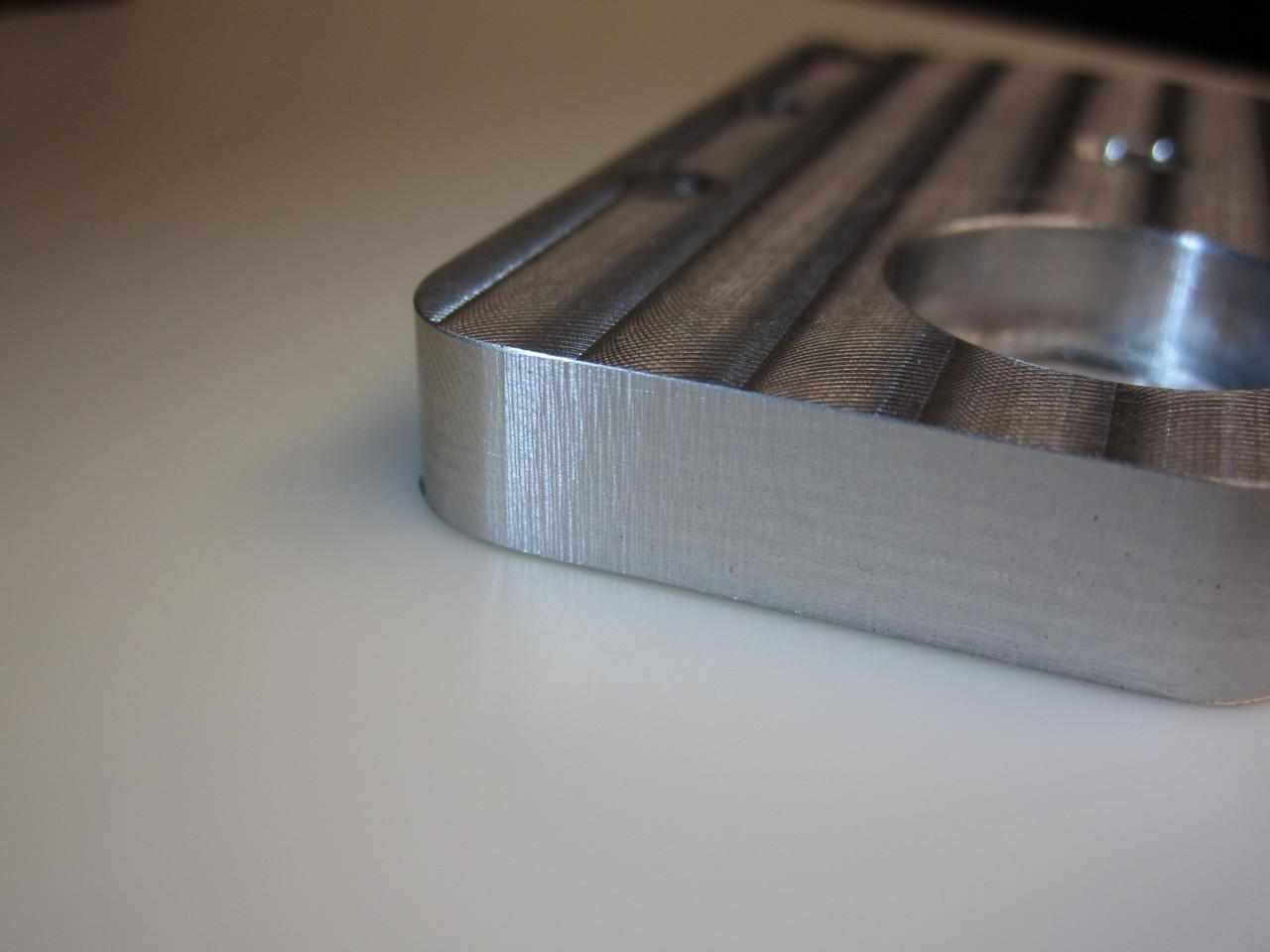

I recently got a motorcycle, and since I have a CNC milling machine, there’s plenty of excuse to try my hand at making some farkles for the bike.  My girlfriend also happens to ride a V-Strom DL-650, and needed a kickstand plate so her side stand wouldn’t sink into the dirt where she parks her moto.

Add a little bit of CAD/CAM time, a bad ‘Strom pun, and a couple hours with the CNC machine, and you get what you see here.

I have a few other projects in the works for my motorcycle, mostly in the name of making it more comfortable and safer to ride.  I’m a tall guy, and my little EX500 is a bit cramped for me.  So, I’m working on a design for some handlebar risers, and also some mirror extensions so I don’t have to keep ducking my elbows in to see who is behind me.  More on that as the projects evolve.  The materials are on order and CAD/CAM work is underway…

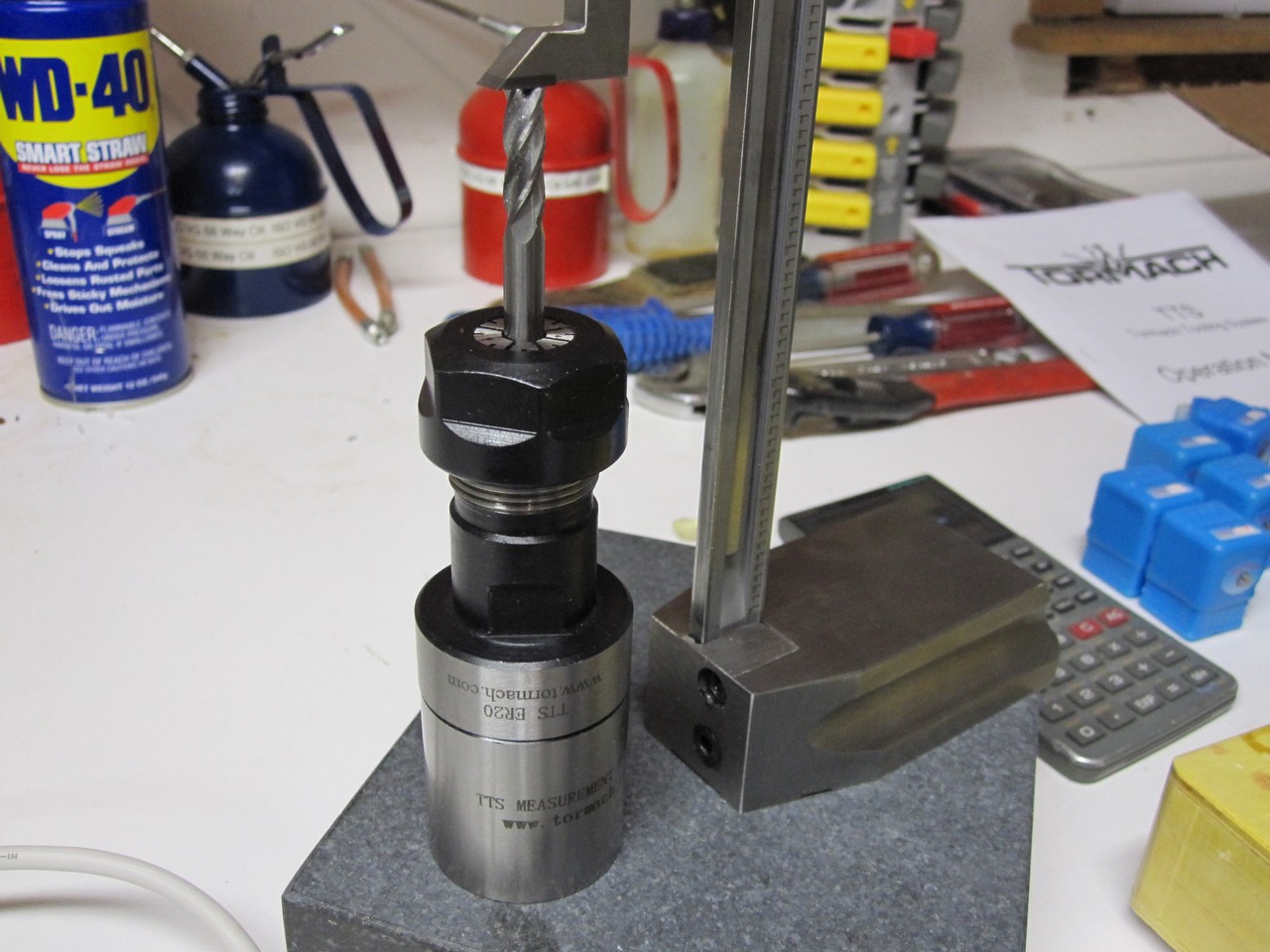

I quite literally turned a mountain of spare change (65lbs worth, to be exact) that I had been collecting for ten years into a slightly less heavy pile of metal and granite, and purchased a Tormach CNC Tooling kit.  This will allow me to set up all of my tooling ahead of time and pre-measure the heights offline.  Using the touch tool I can then safely touch off the Z height of my work, and the varying heights of the other tools and holders are automagically accounted for.  This means significantly less hassle when running programs which use multiple tools, as the tool changes are now very quick (under 30 seconds), and I will no longer have to split up my programs into multiple parts and re-touch for every new tool.

I plan to put together a video showing how this all works at some point, since it is not terribly well documented out in the world from what I can tell.  My first experiments last night look promising, and after some optimizations I think I’ll be ready to show how I’ve got it working.

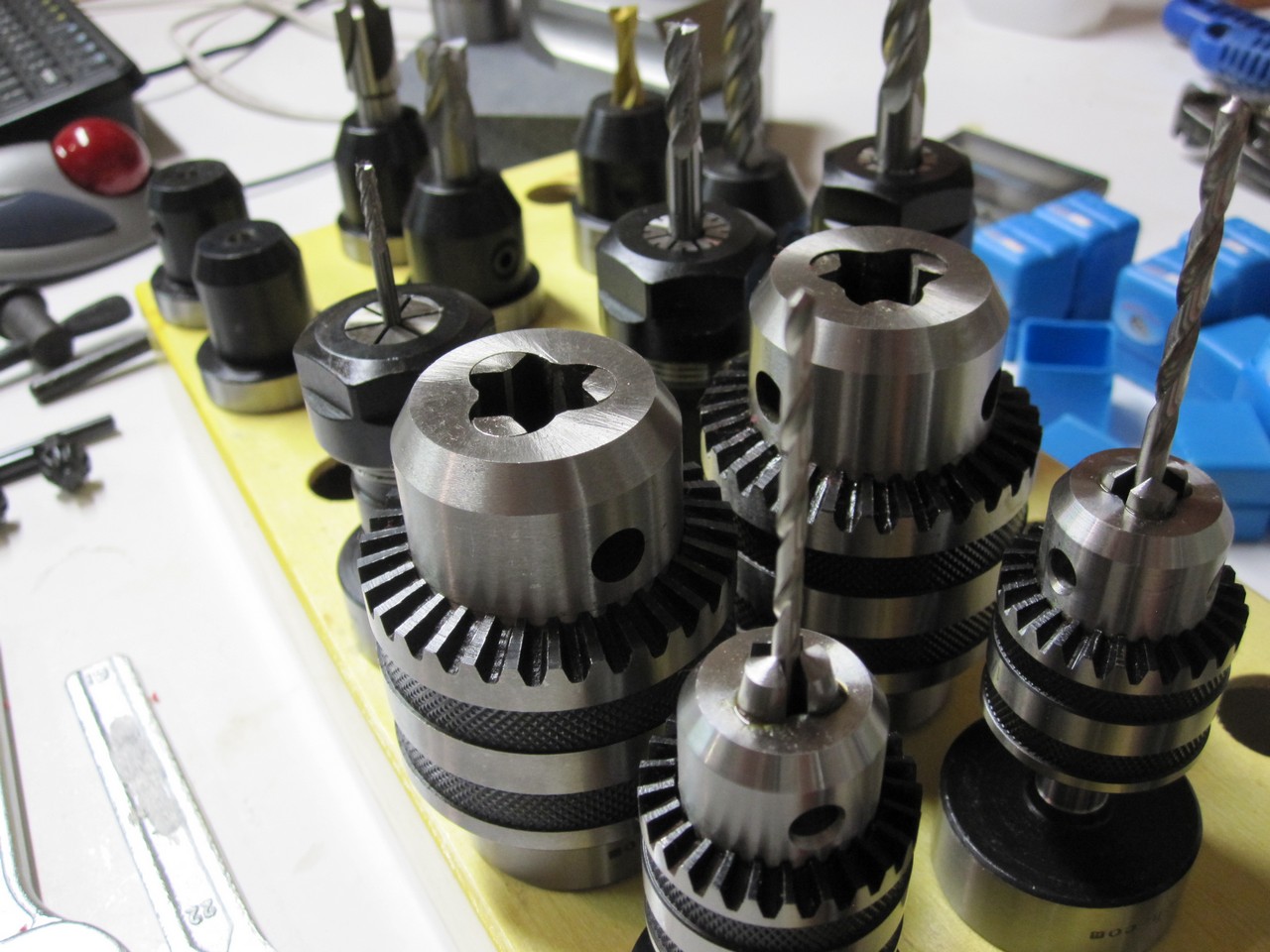

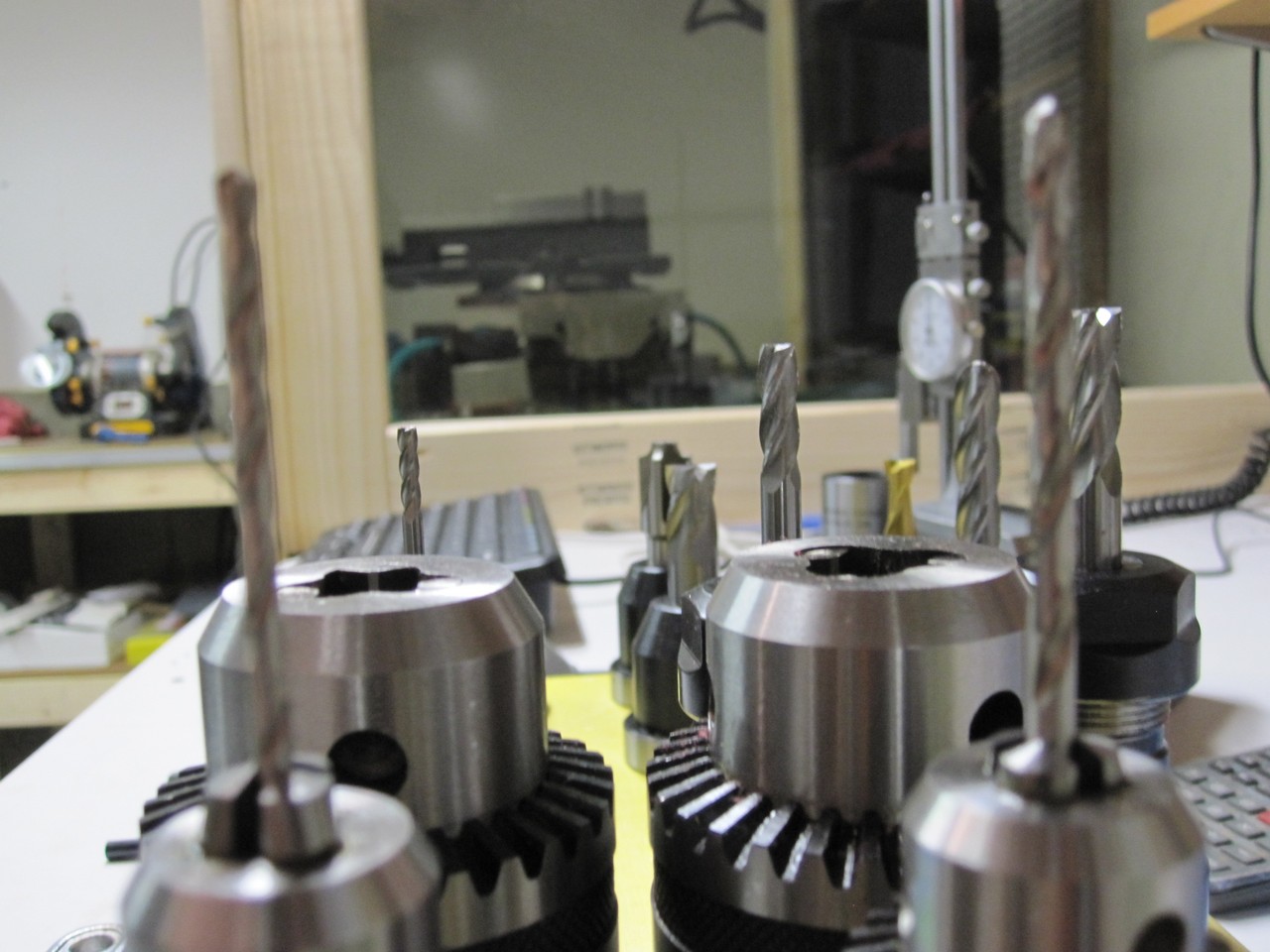

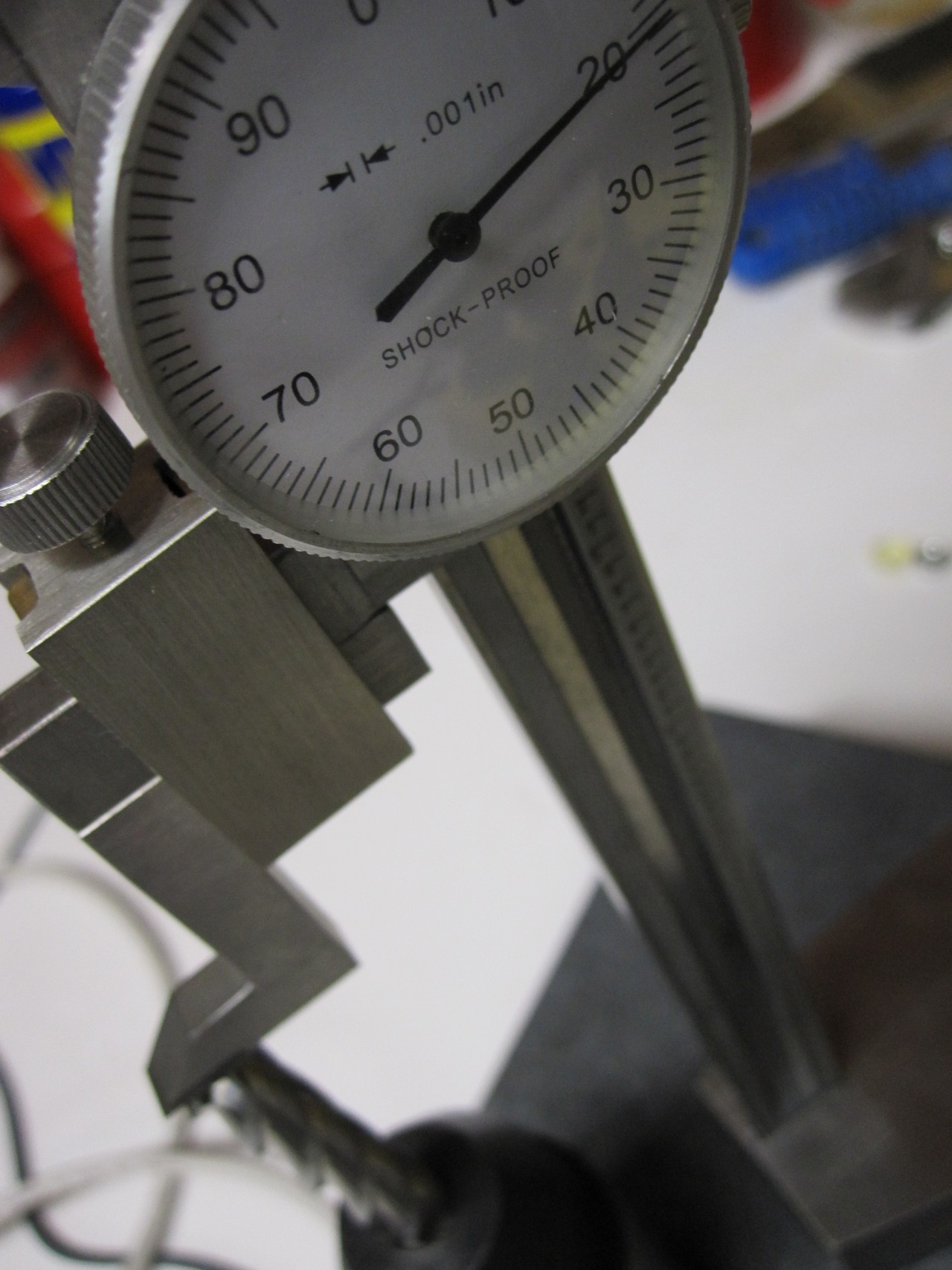

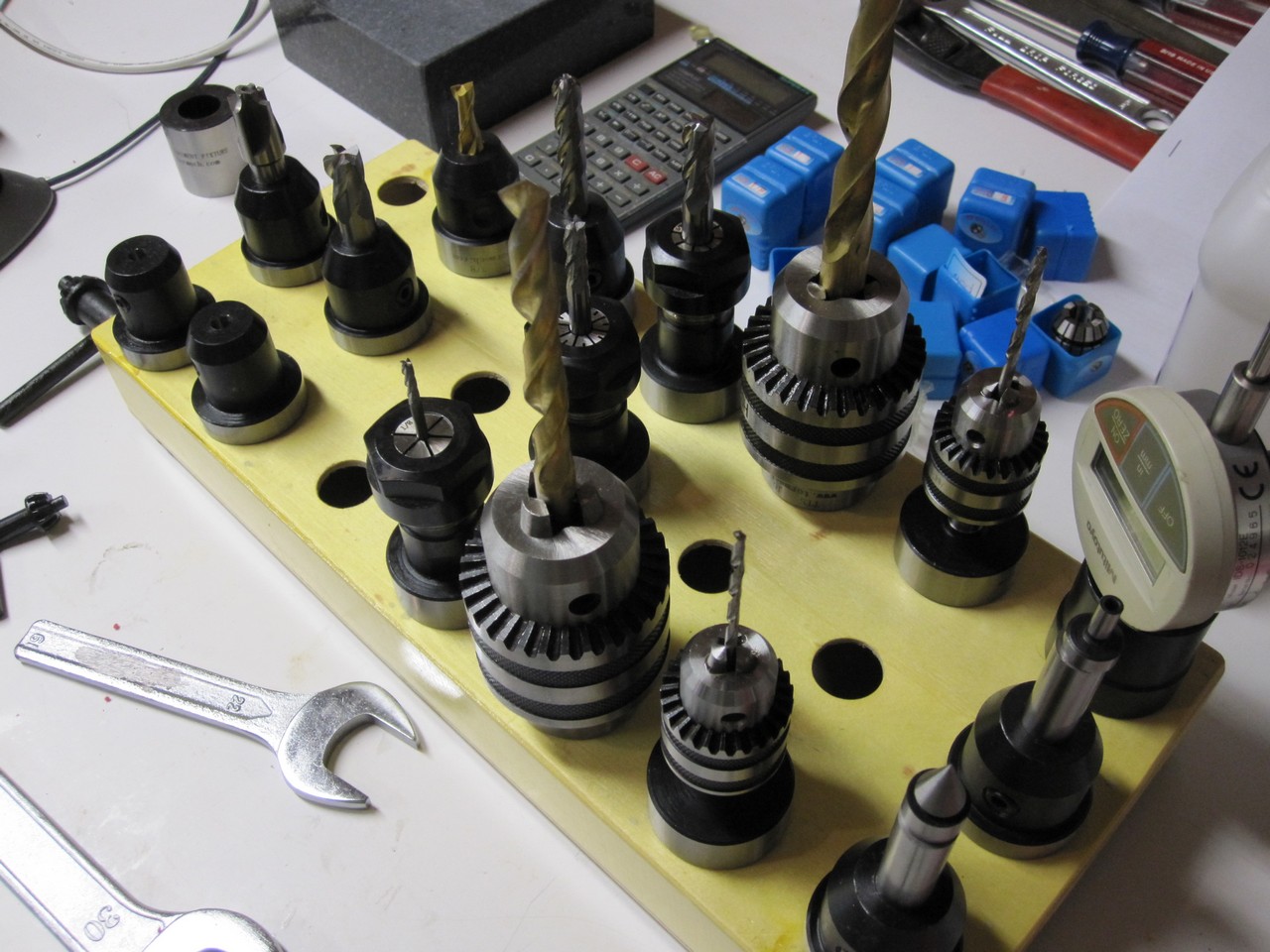

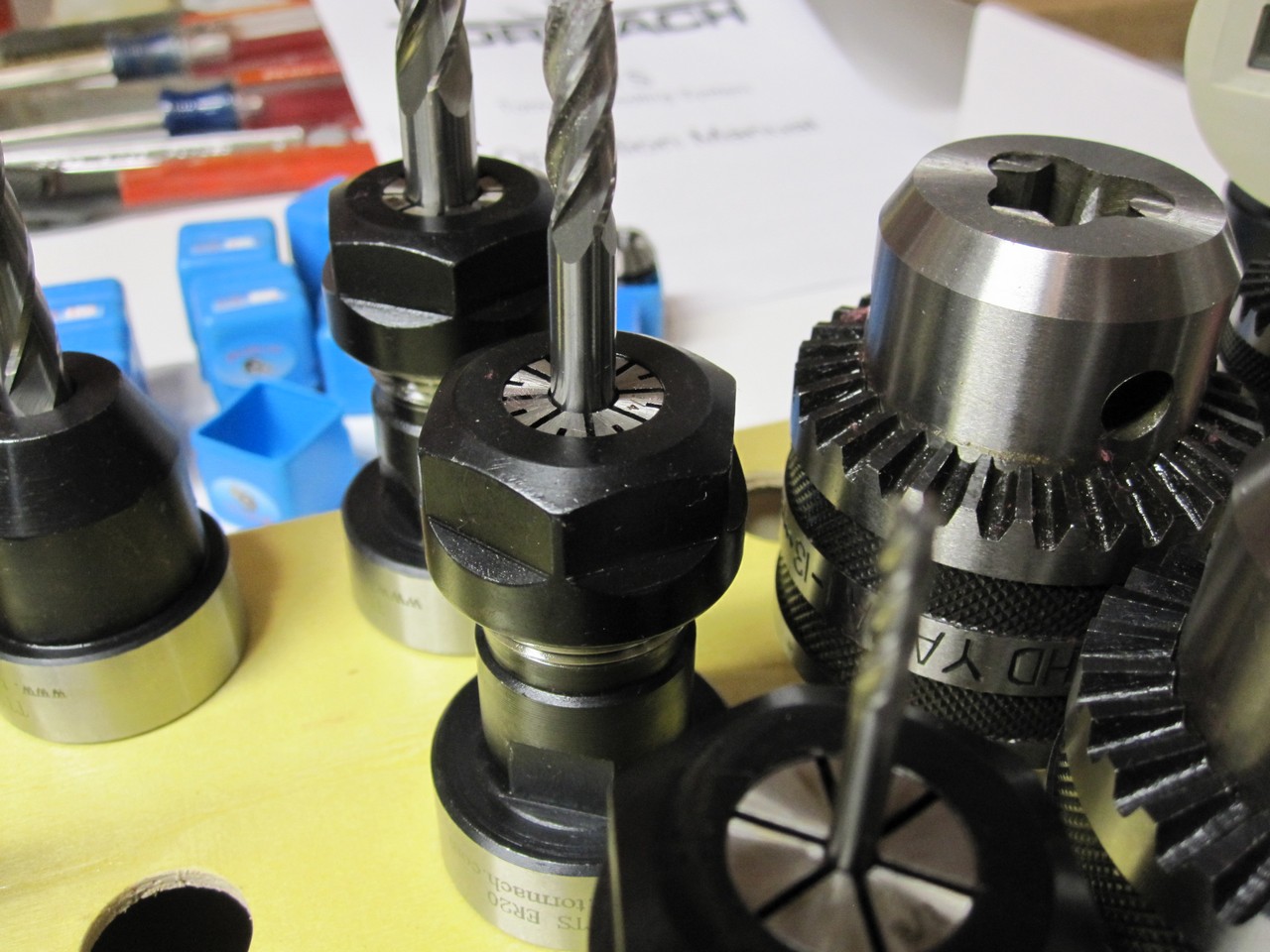

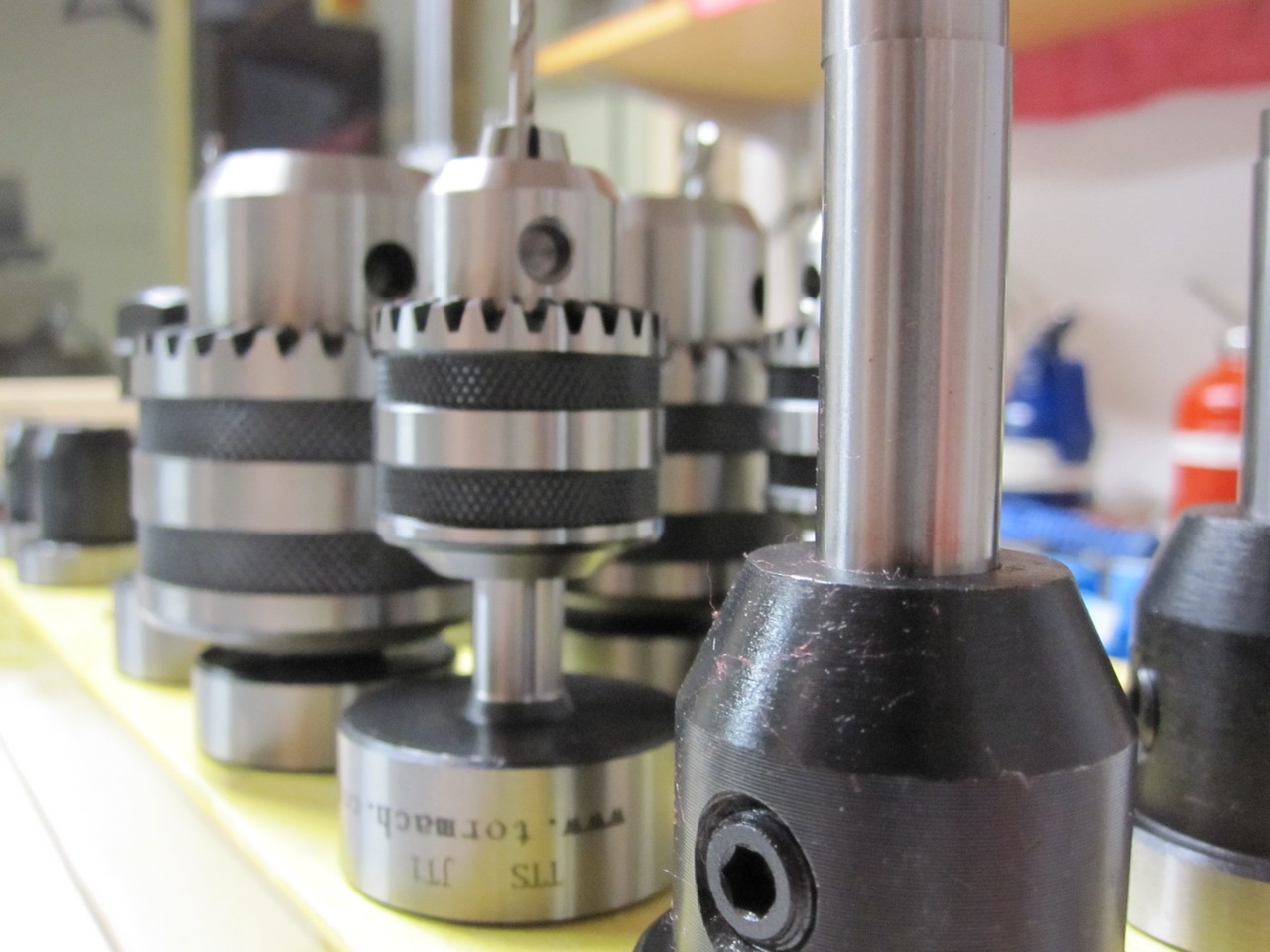

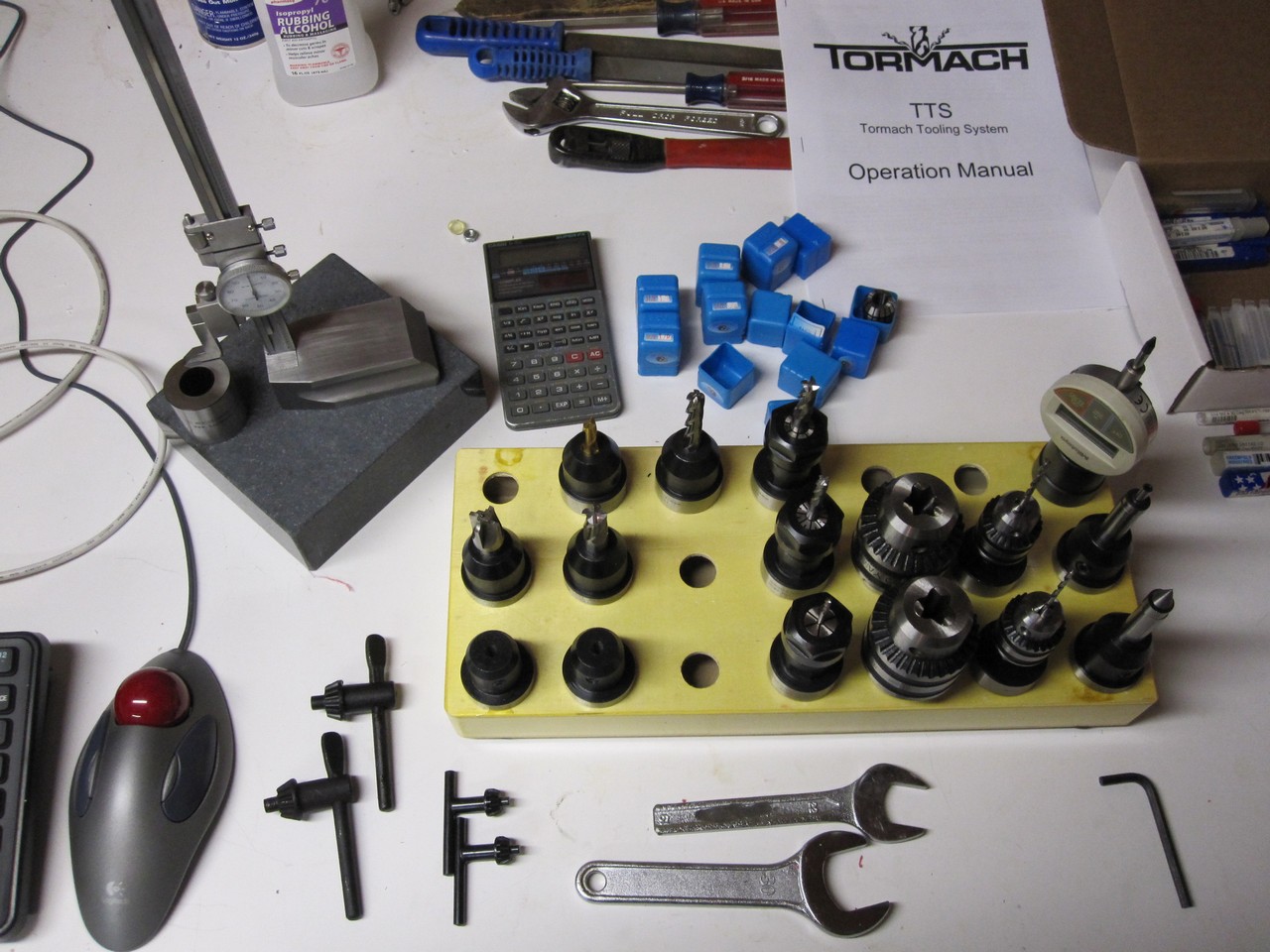

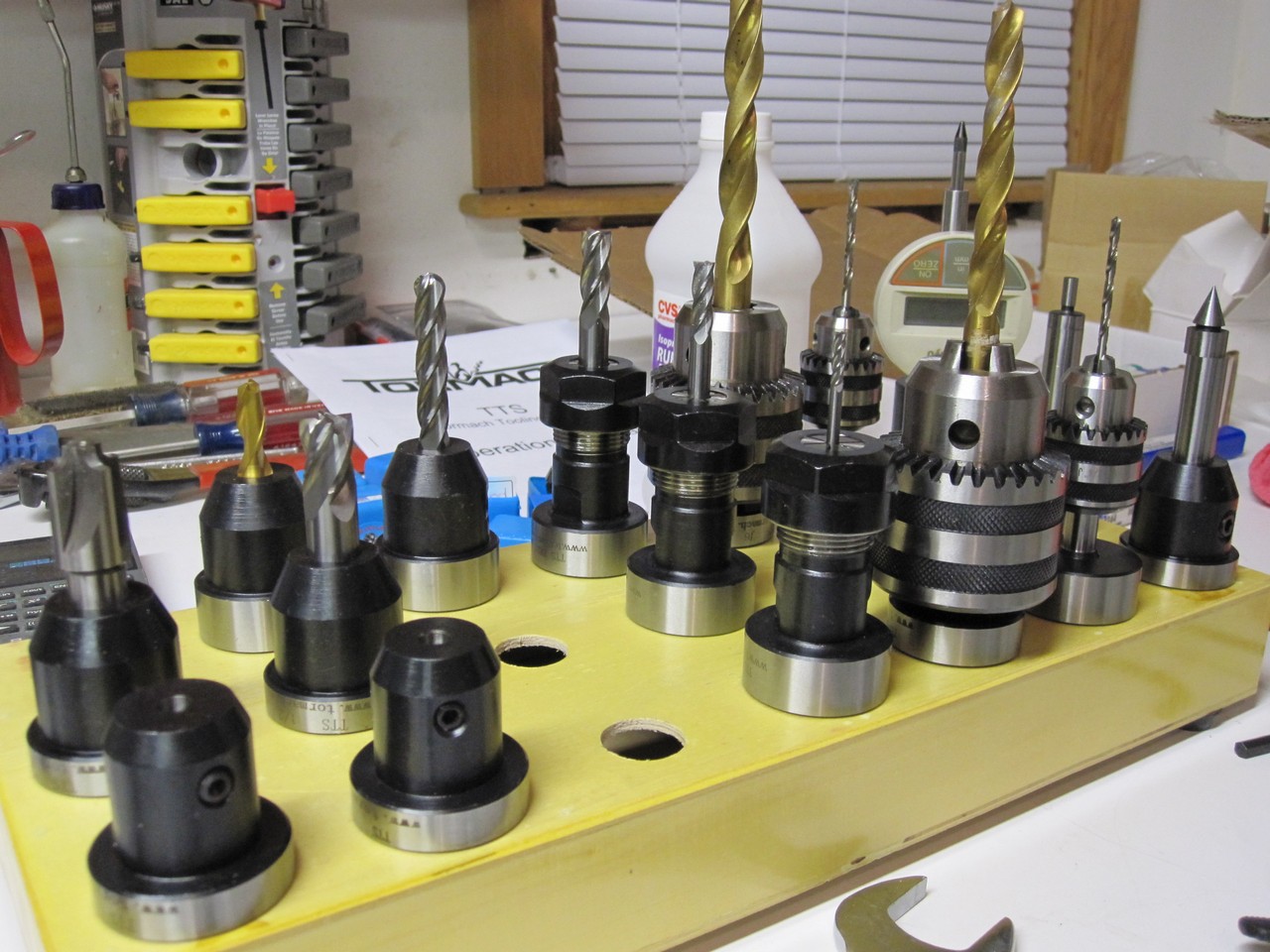

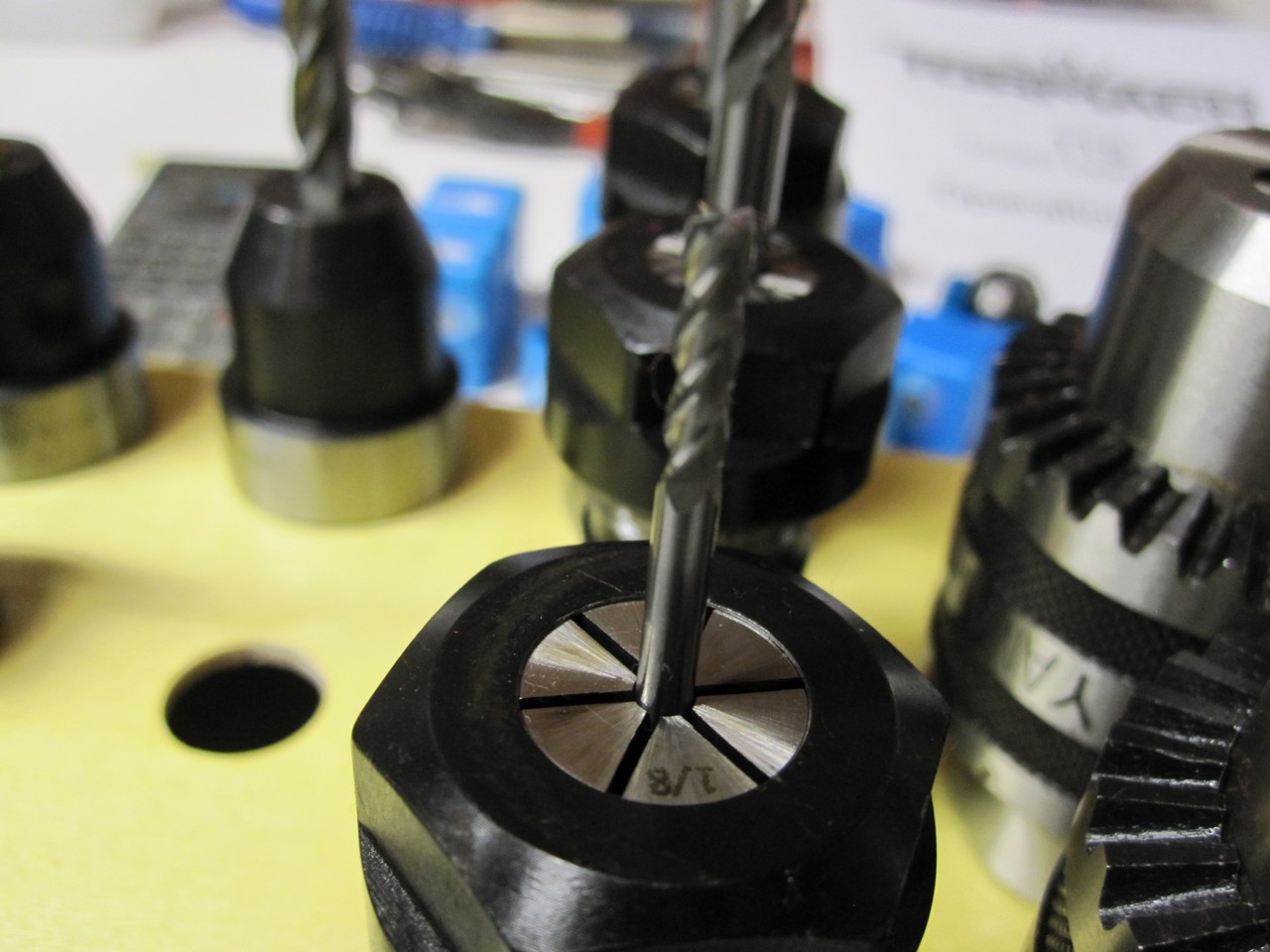

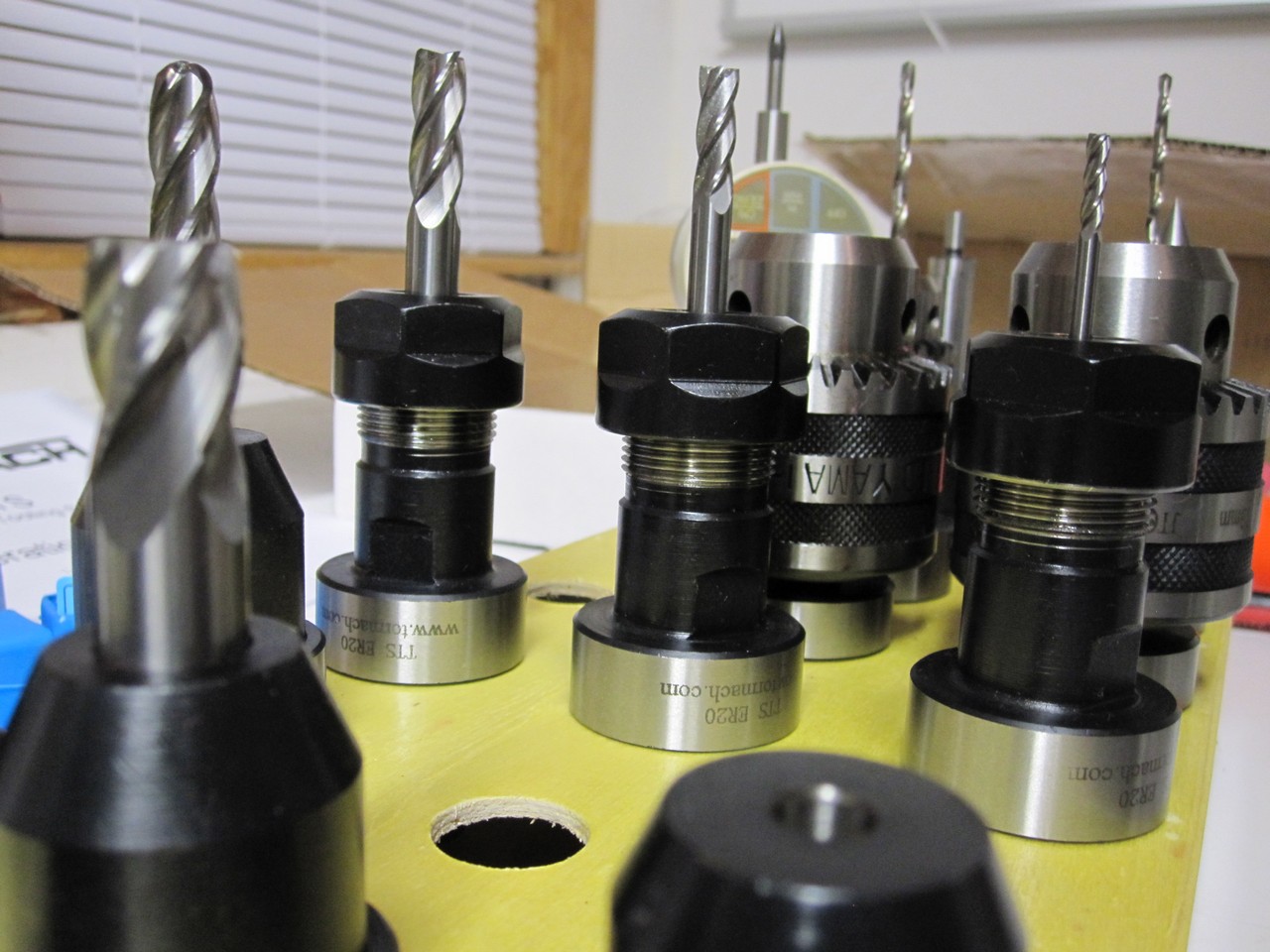

In the mean time, here are some photos of the Tormach tool holders and some of my tooling.

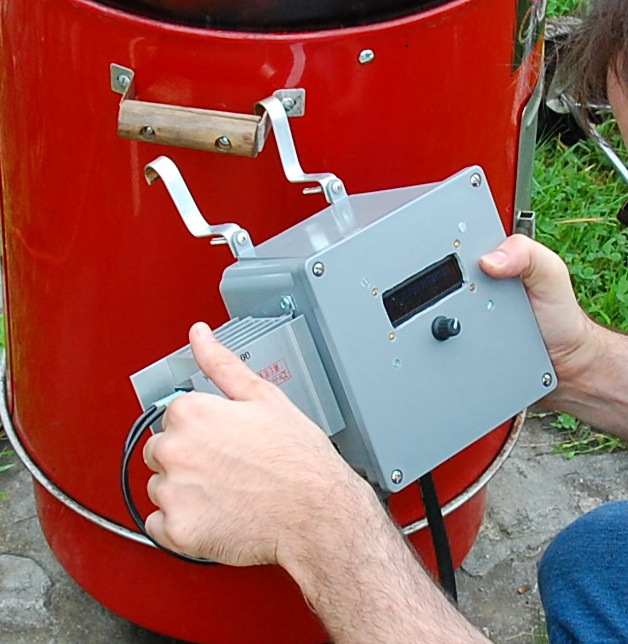

Before…

After…

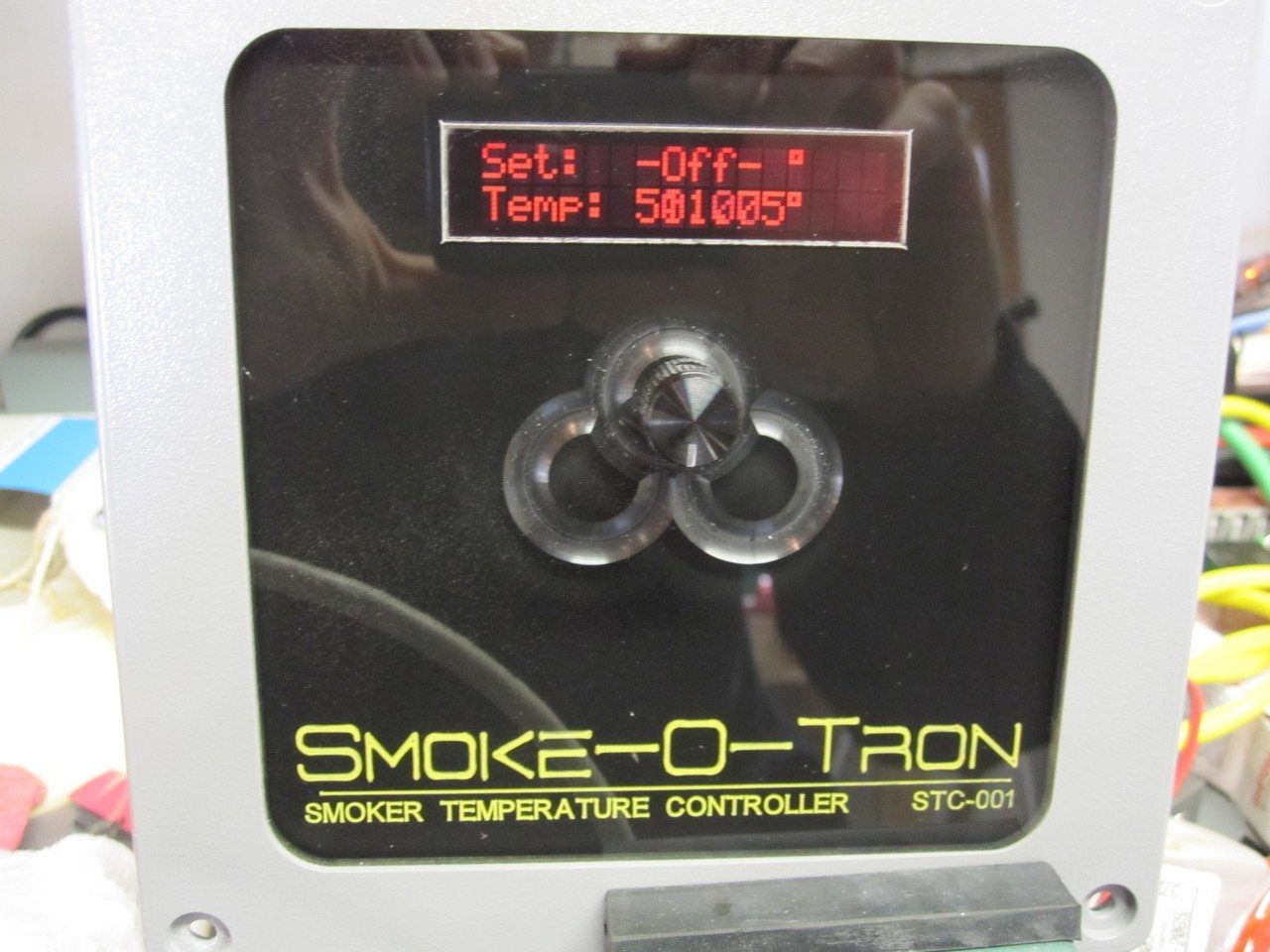

My friend Dan built the electronics for a temperature controller for his electric smoker.  I figured since I have the CNC mill, it was a moral imperative for me to do some nice enclosure work for him to make the project look slick.  Dan admitted his initial attempts at the case work with a Dremel tool were lacking somewhat, so about a month back he passed the guts over to me so I could have a go at it.  It took a few attempts to come up with a design I was satisfied with and execute it well enough to consider it done, but I chalk all of that up to gaining experience on the machine.   I was pleased to finally be able to present the finished product to him last night!

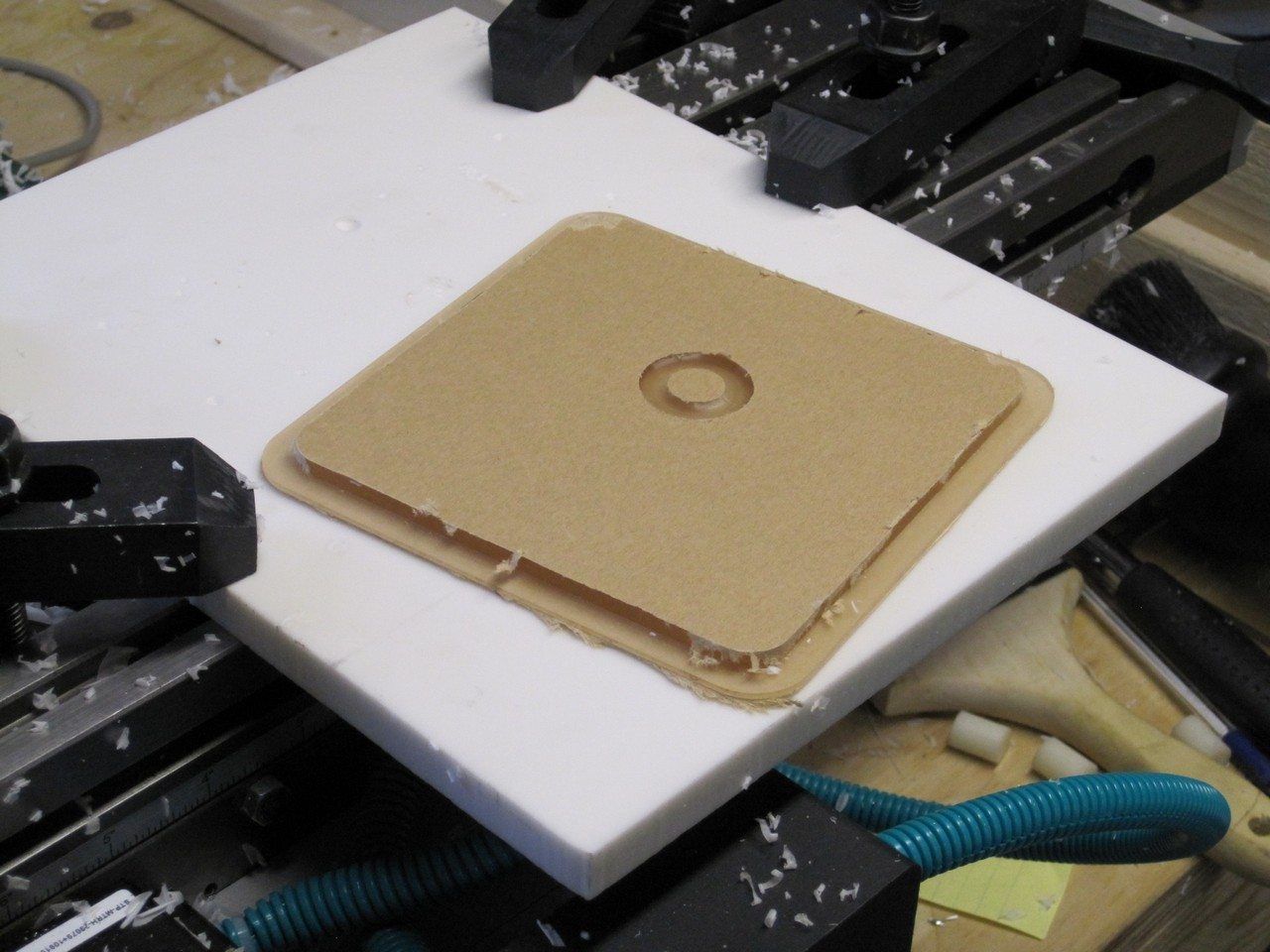

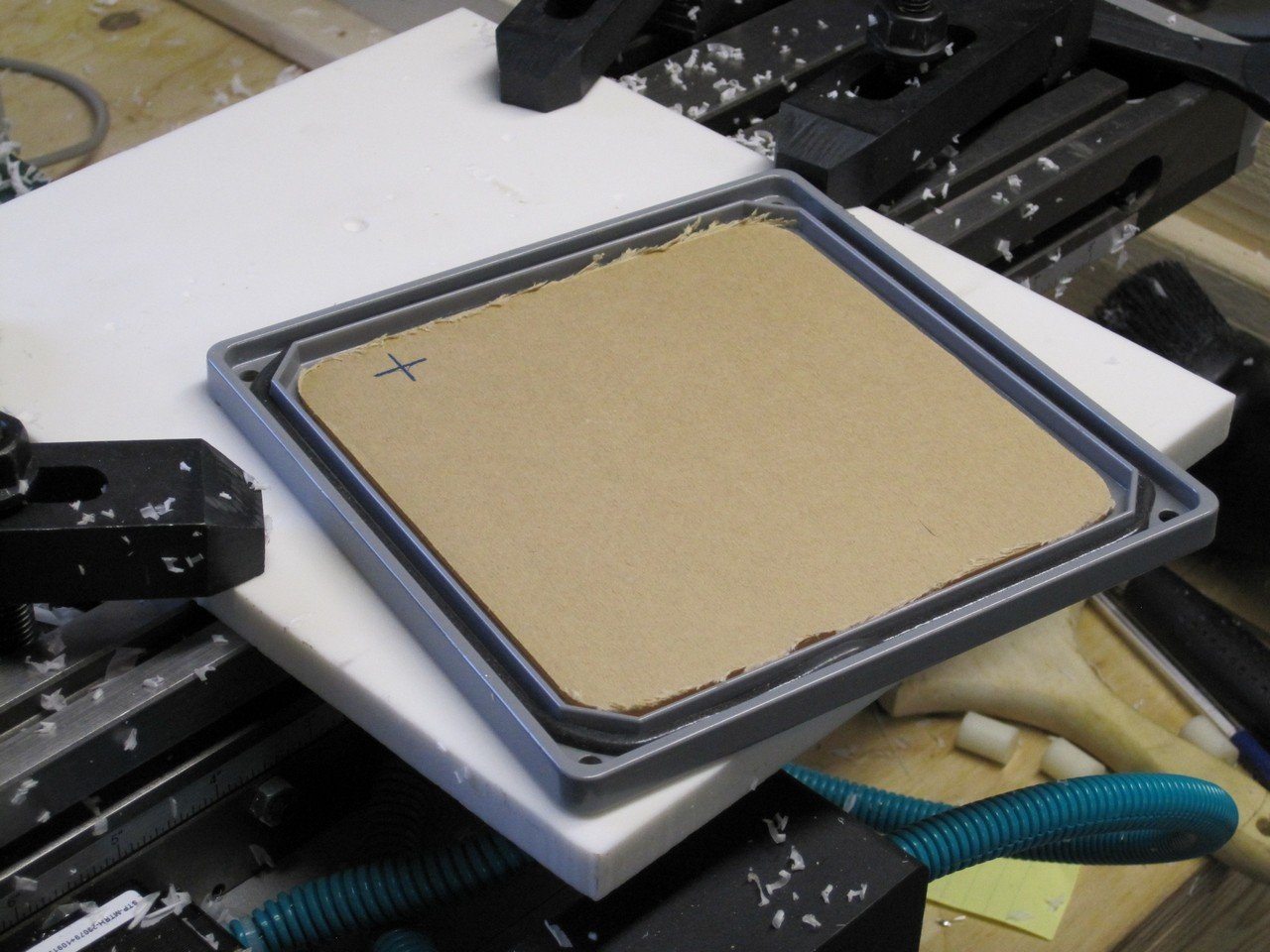

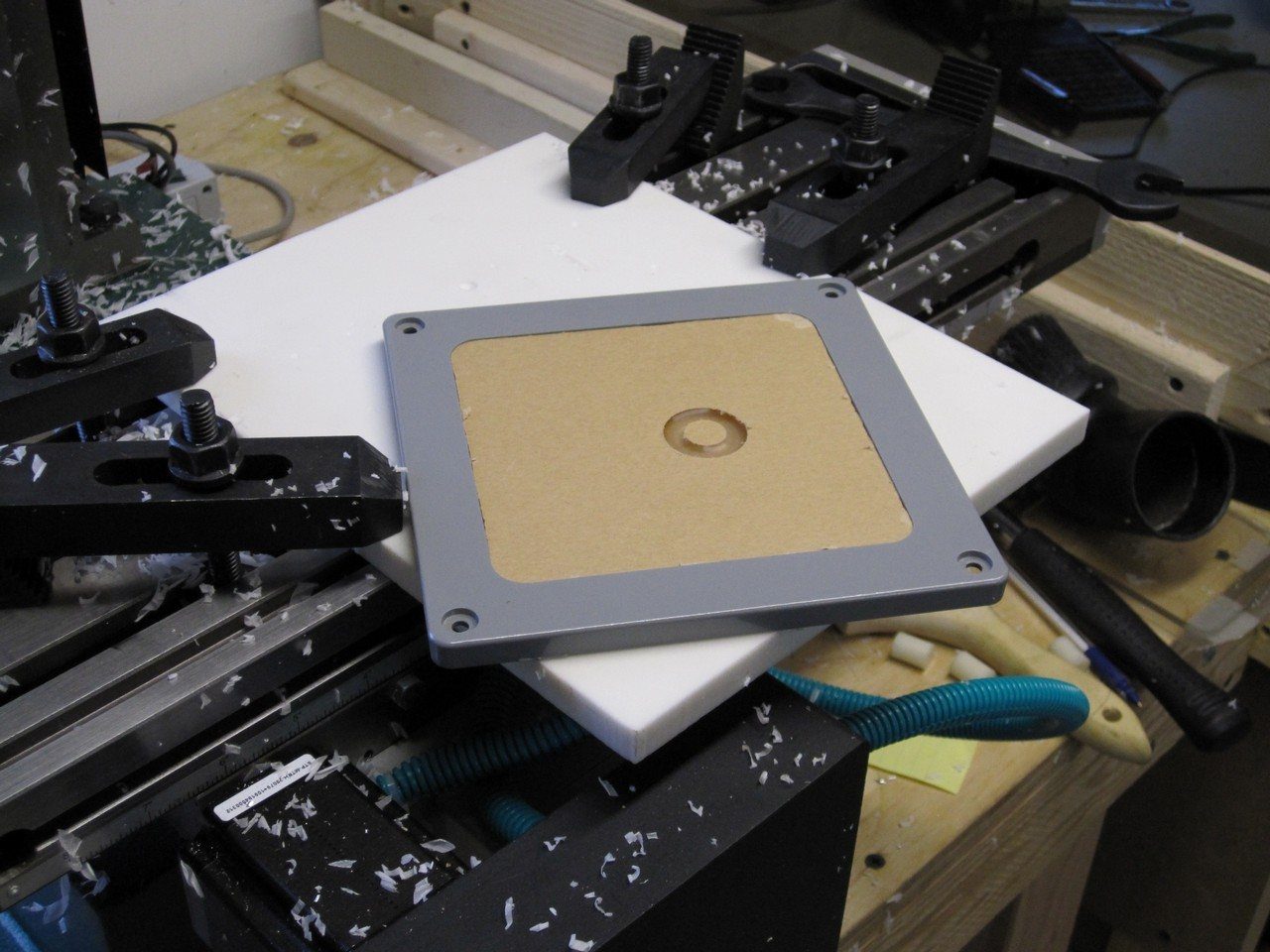

The electronics originally fit into a waterproof PVC Carlon box.  The lid had been previously attacked with a Dremel, but I figured if I cut out a large window and made an insert for it, we could salvage it as well as end up with a nifty look.  So, I started out by CNC milling out a roughly 4.7″ square from the lid.  I then made a clear polycarbonate insert, just slightly smaller by about 0.010″, so it would slip fit inside and stay in place with a flange.  The polycarbonate insert received some decorative milling on the front panel, and some functional drilling on the rear panel to provide mounting and a place for the knob to pass through.  The insert also got an engraving treatment with some text using the new high speed spindle mount that I built last week.  Since getting engraving working well, I had tried a few experiments of back painting engraved text.  I did the same for the Smoke-O-Tron, using some water-based Rust-Oleum hobby paint.  I made sure the see-through LCD window was well masked off with the original paper that came with the polycarbonate as well as some supplemental electrical tape.  I sanded the back of the insert, avoiding the LCD window, with 220 grit in my random orbit sander, and applied a couple of coats of black spray paint.

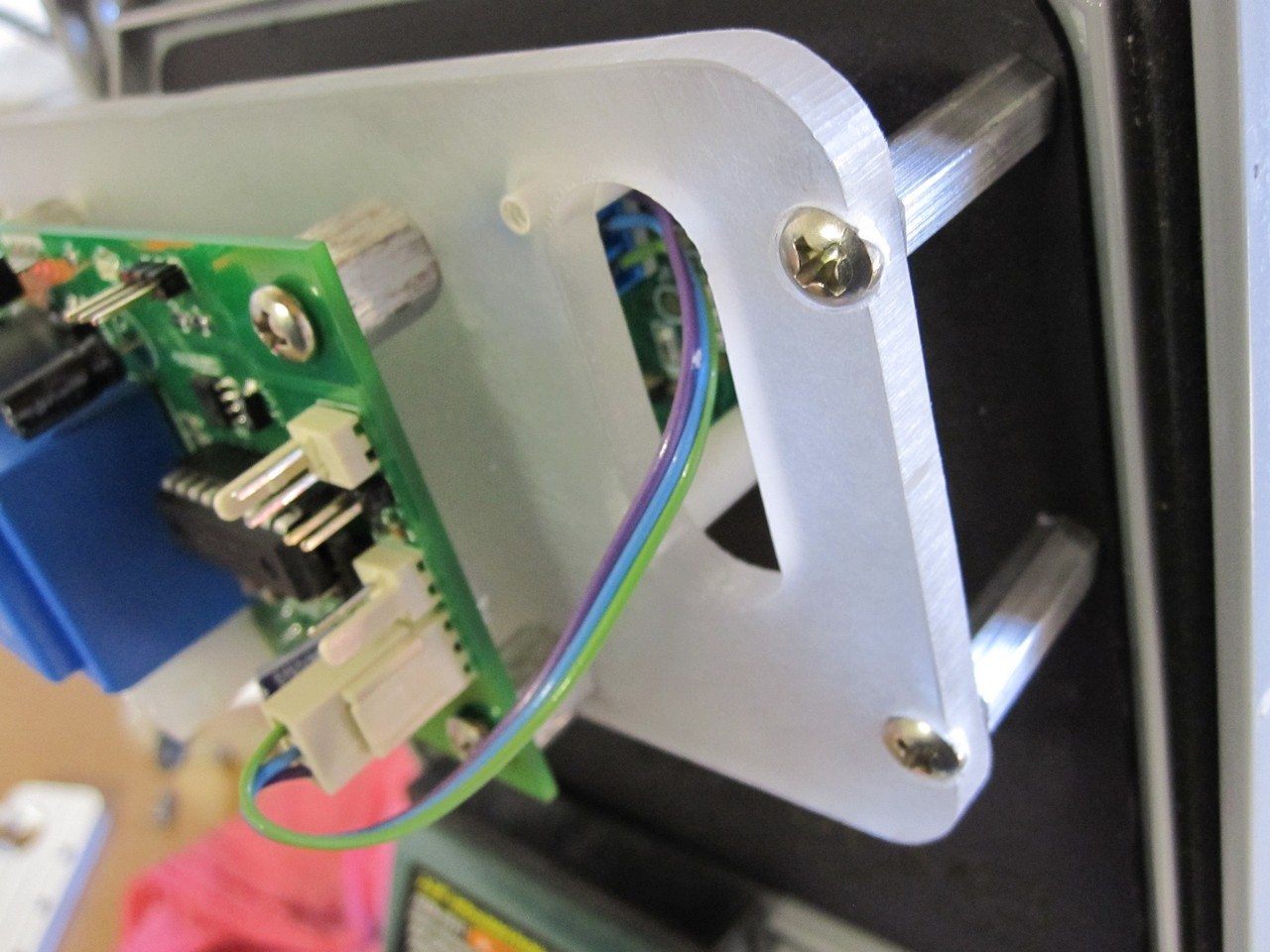

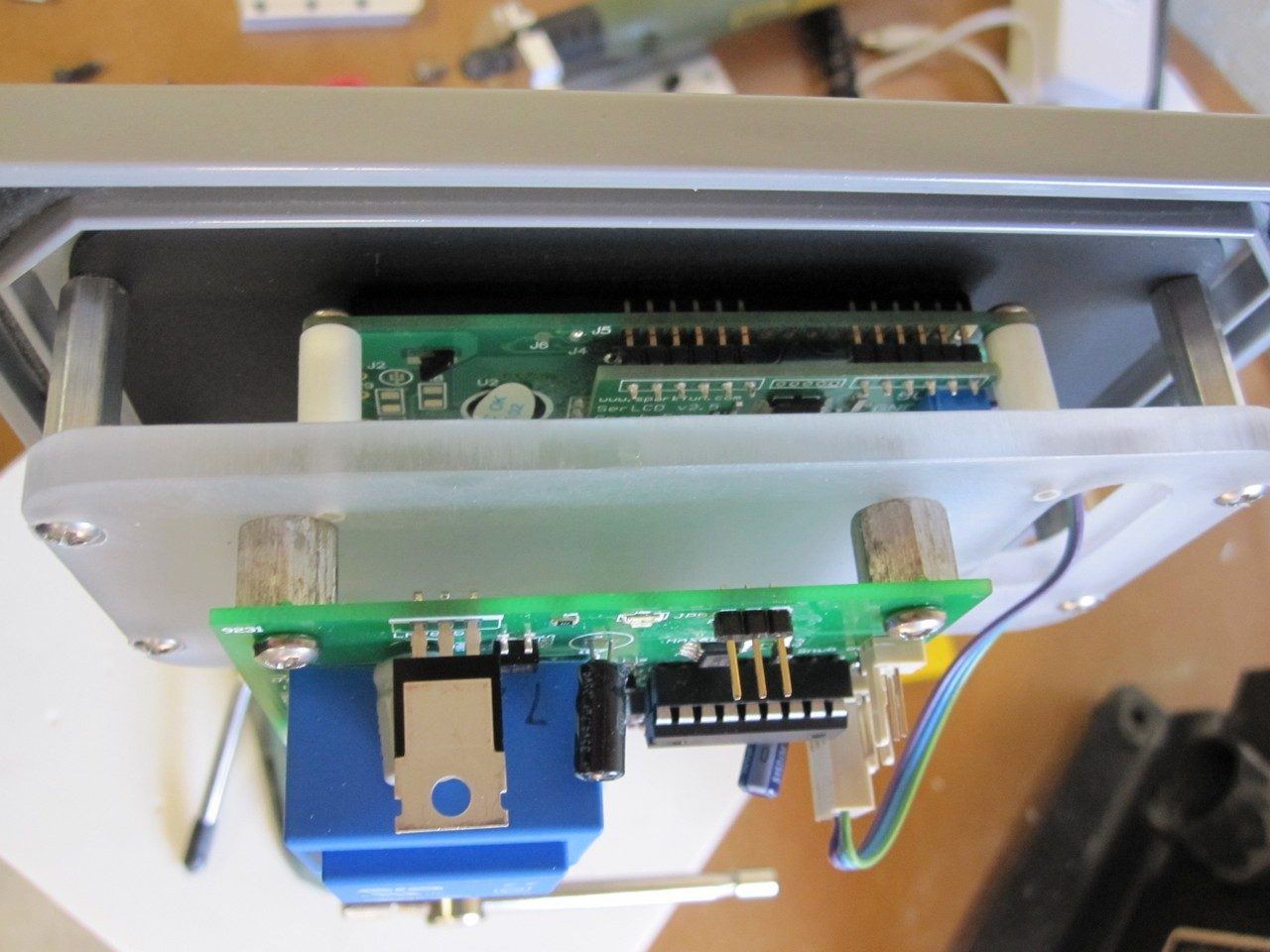

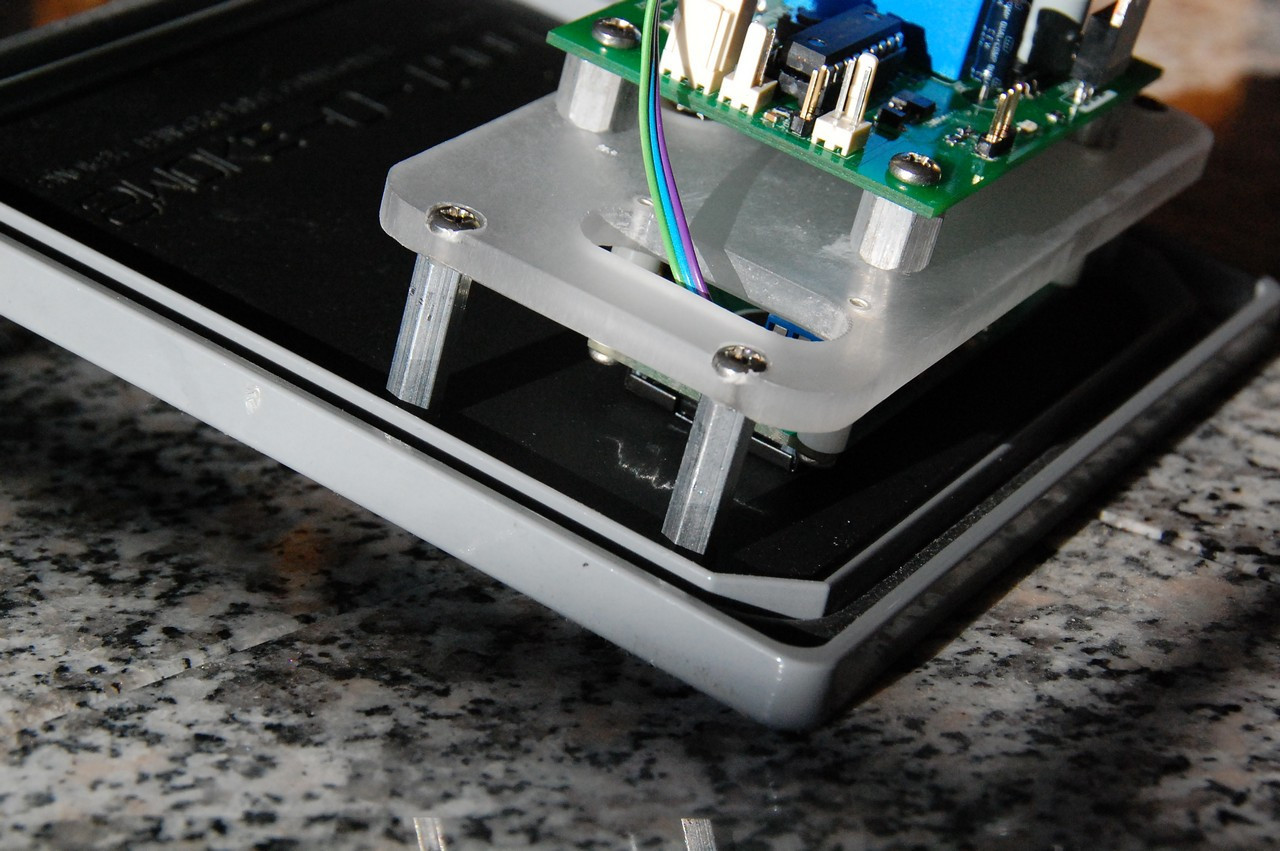

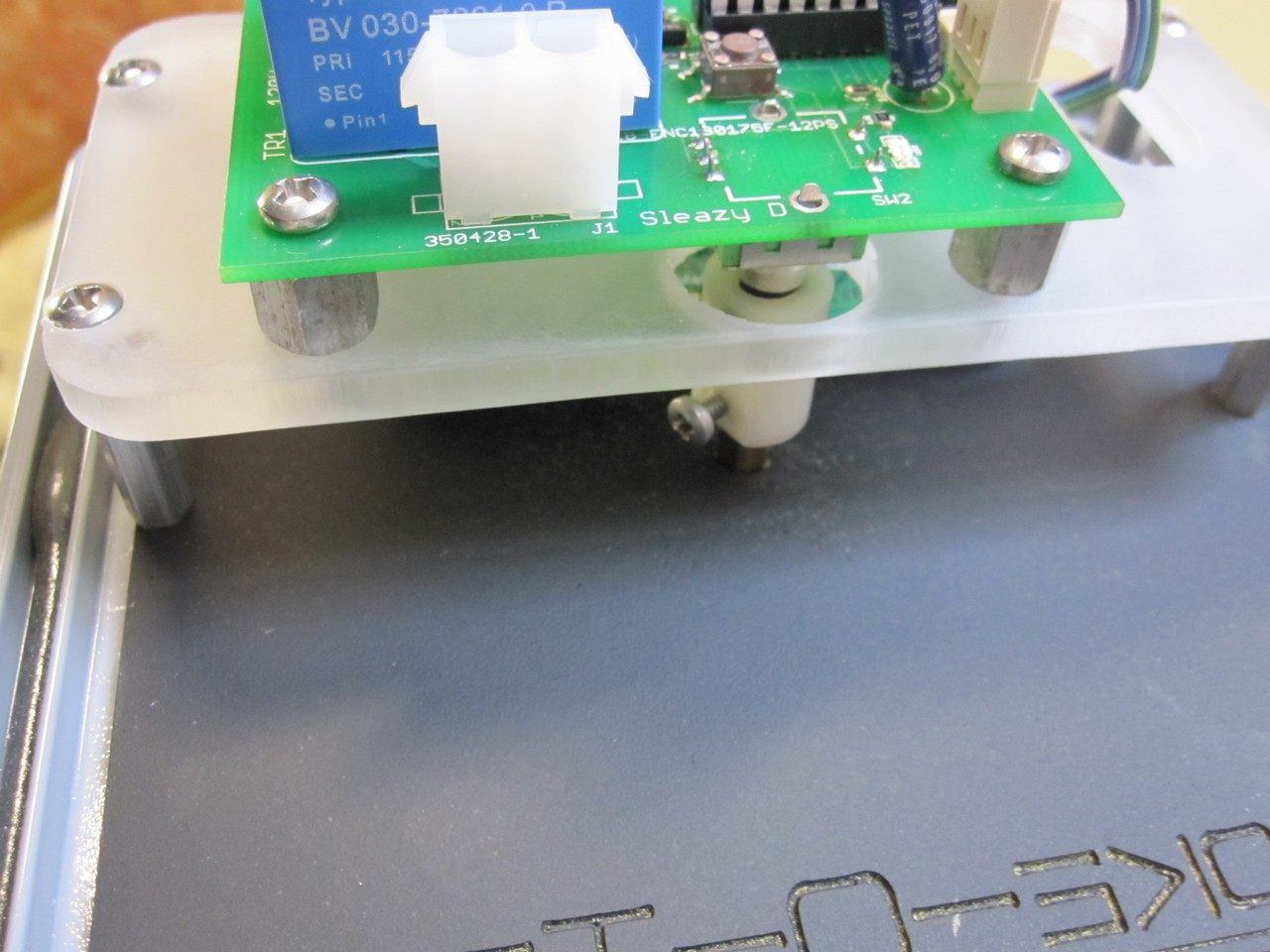

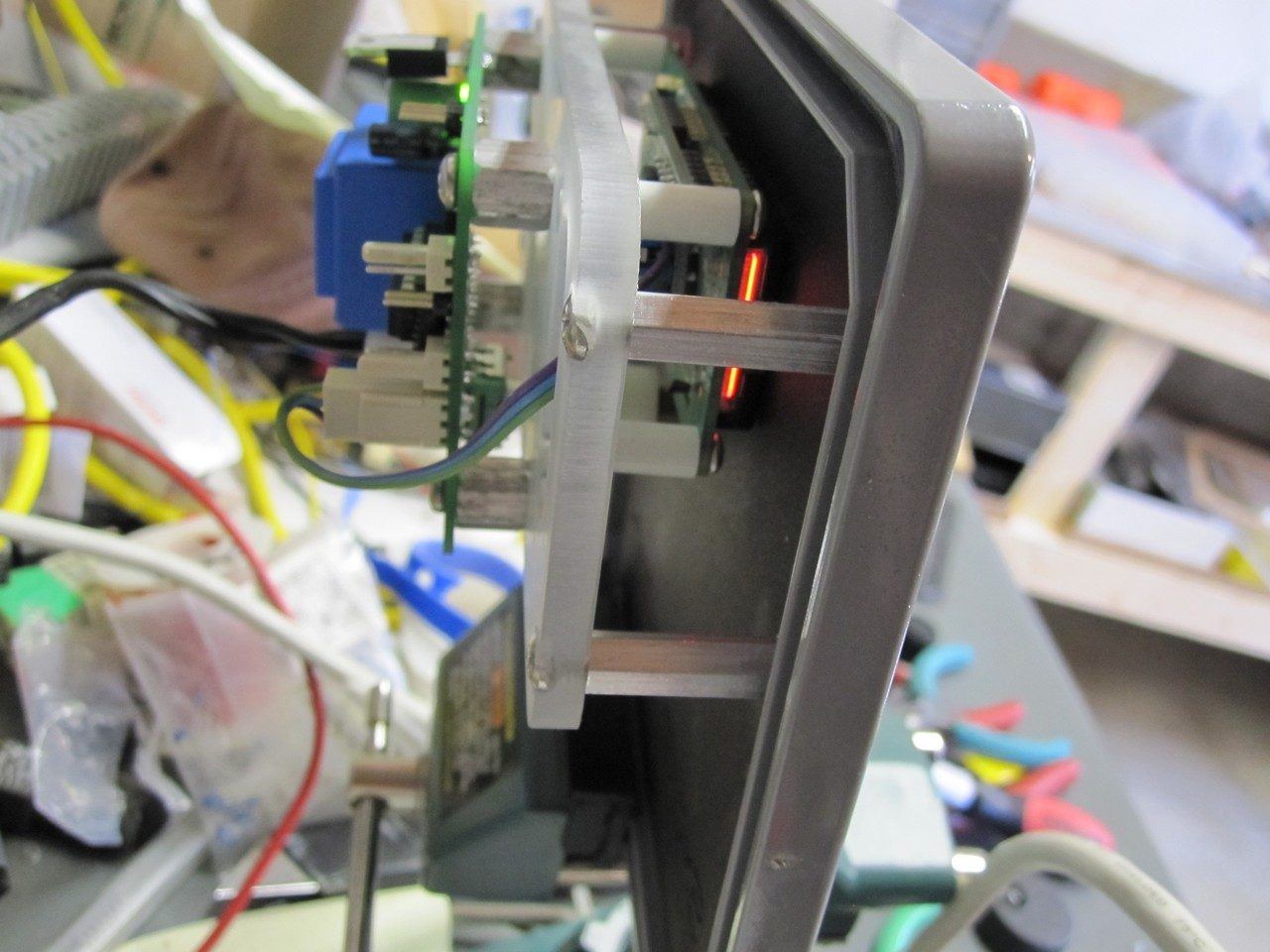

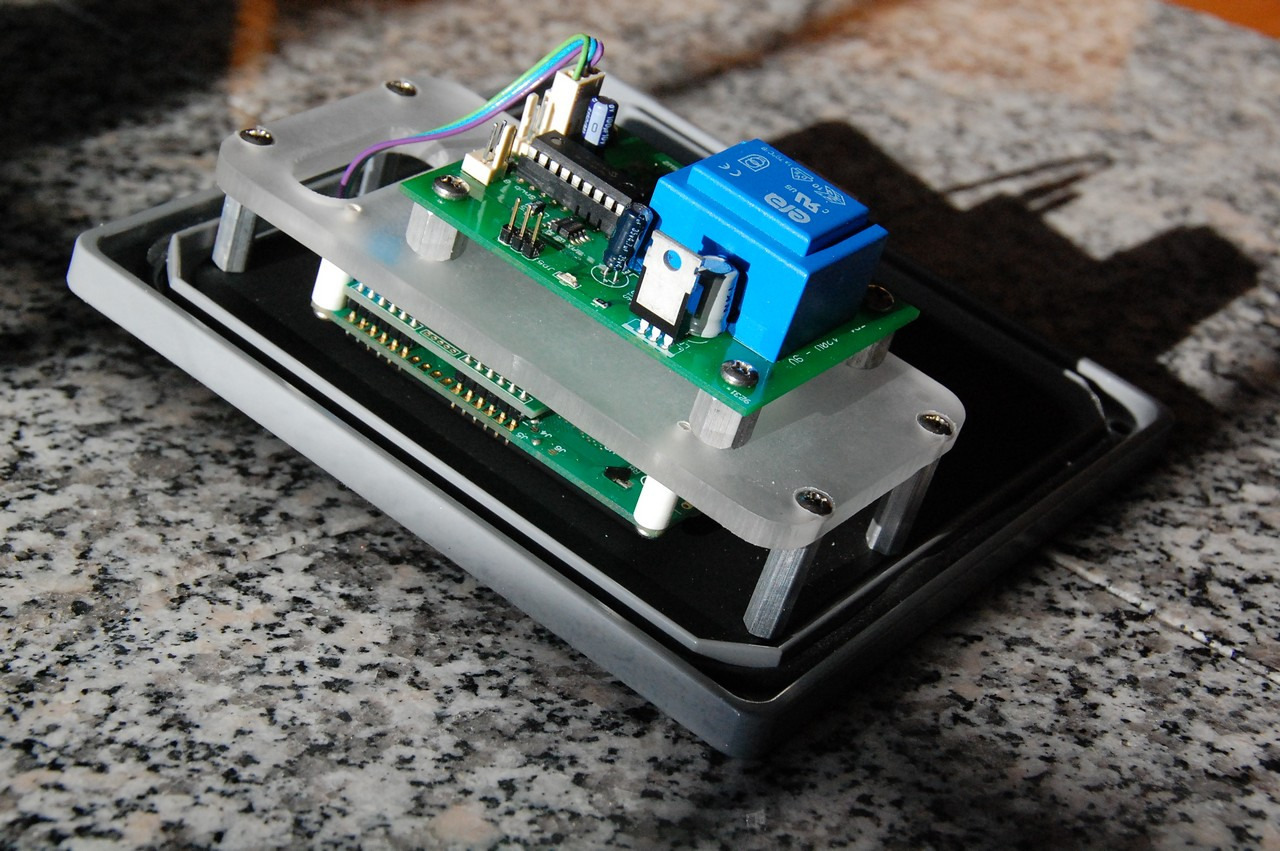

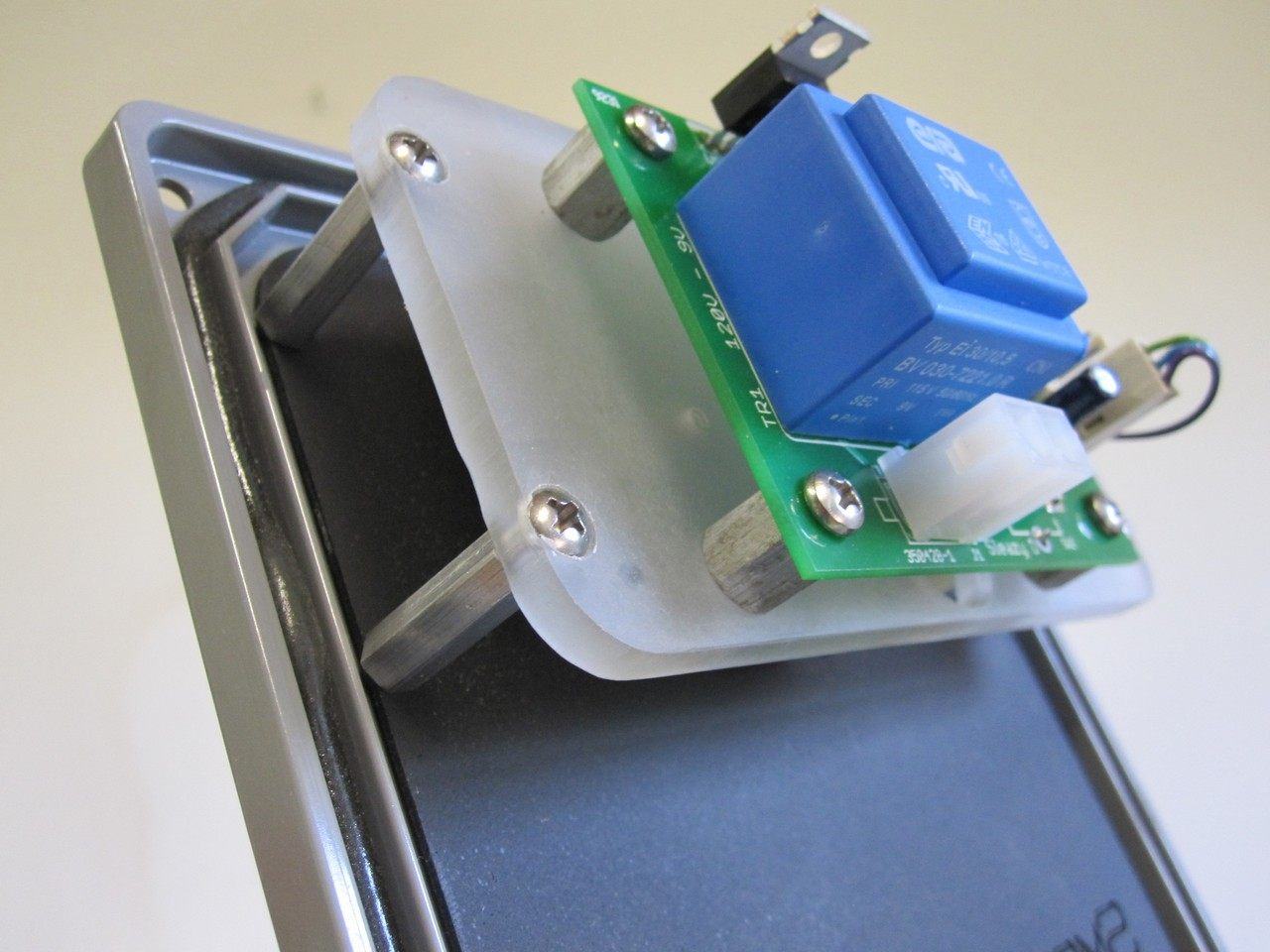

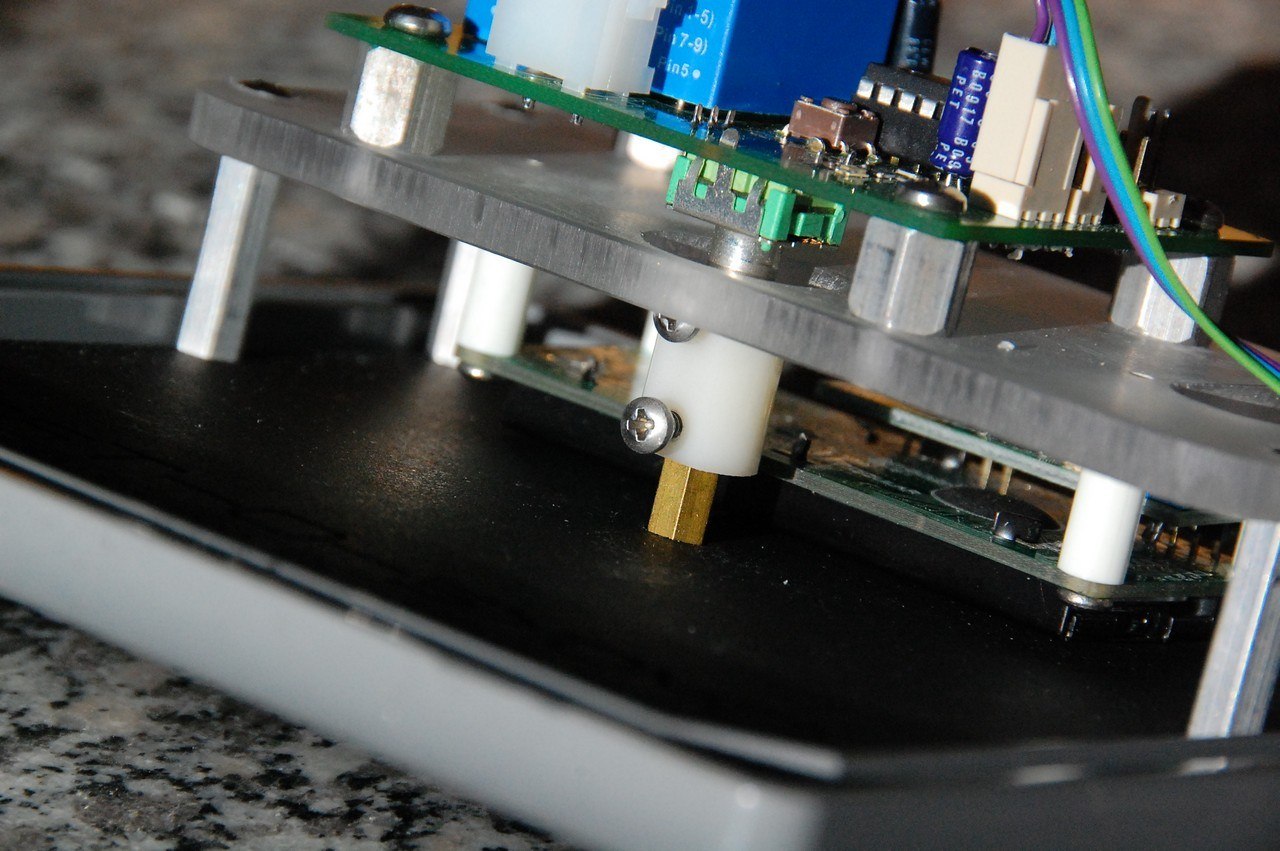

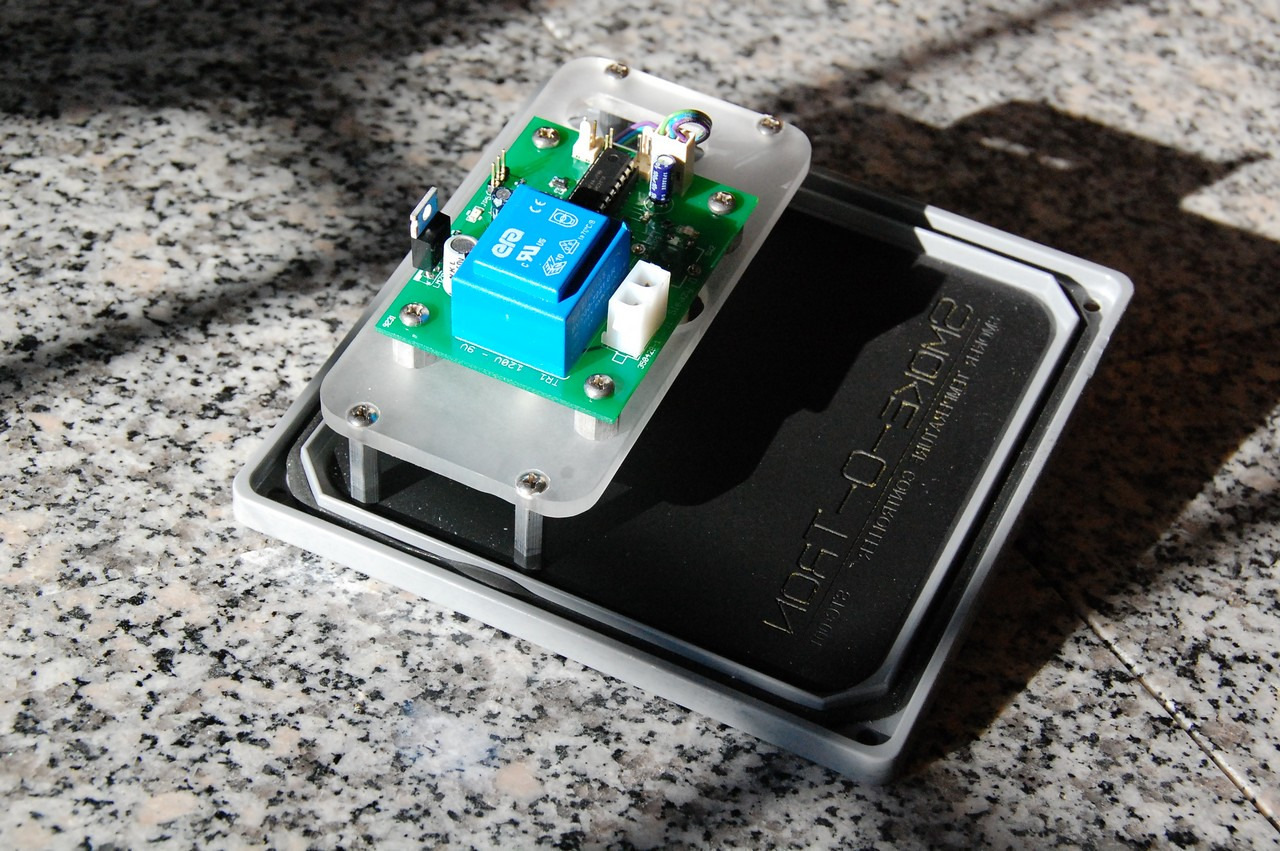

The main electronics consists of the main PCB and a small character LCD.  After one misguided attempt of doing blind tapped holes in the clear insert (ugly and visible), I came up with the much cleaner “mezzanine” approach.  This is often done in front panel work in devices, especially when varying heights have to be accounted for.  The particular scheme I chose allowed a completely clean front panel look with no visible screws.  The electronics mount to both sides of a small polycarbonate plate, and the plate itself is mounted to the PVC enclosure by way of some custom-length standoffs.  The standoffs also serve to sandwich the front panel PVC insert in place.

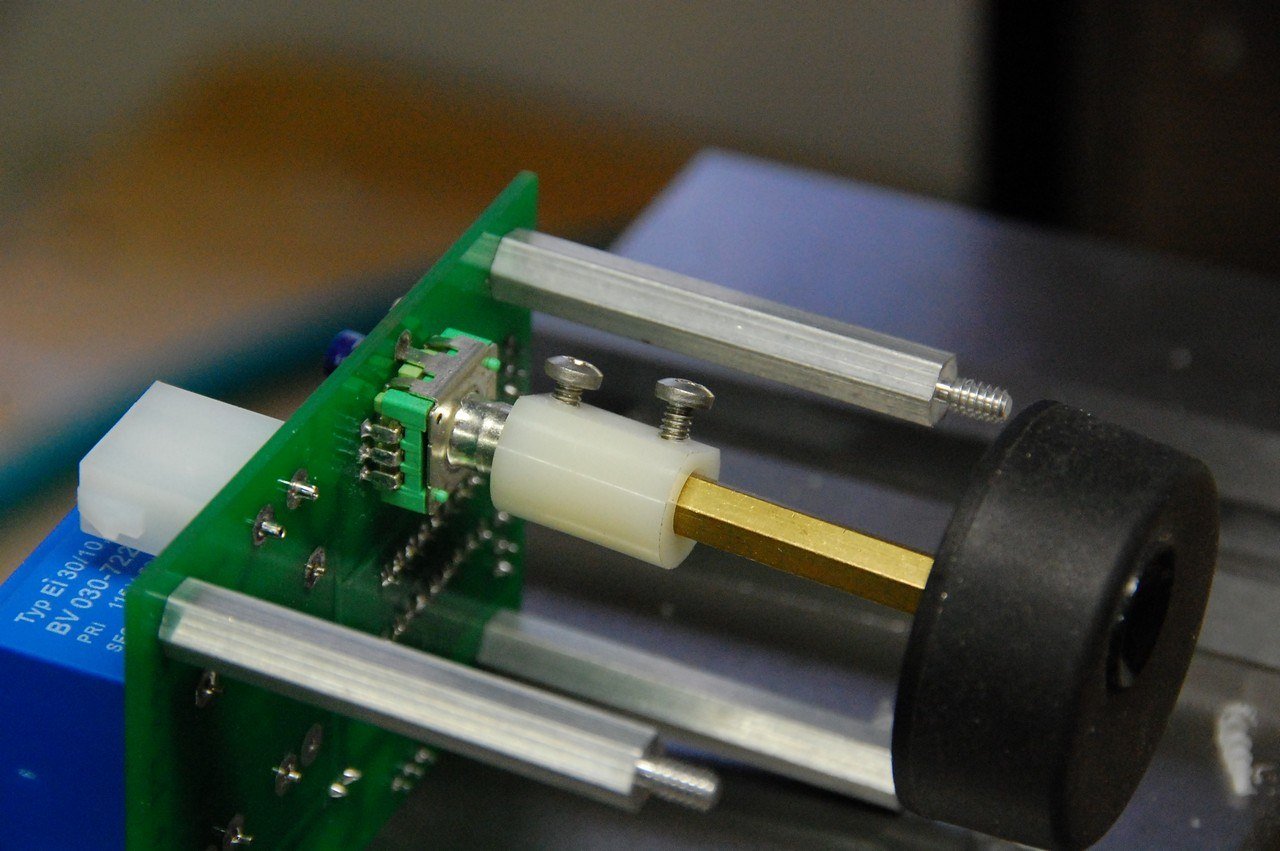

I also made a quick shaft adapter/extender for the encoder wheel, which adapts from 6mm to .250″ and provides a long enough shaft extension that passes through the mezzanine, front panel insert, and into the knob.

All in all, I’m fairly pleased with the end product.  It looks slick, and I have learned a few new techniques for future projects.  As usual, here is a video which details the making of the enclosure, and a bunch of pictures as well.

12►

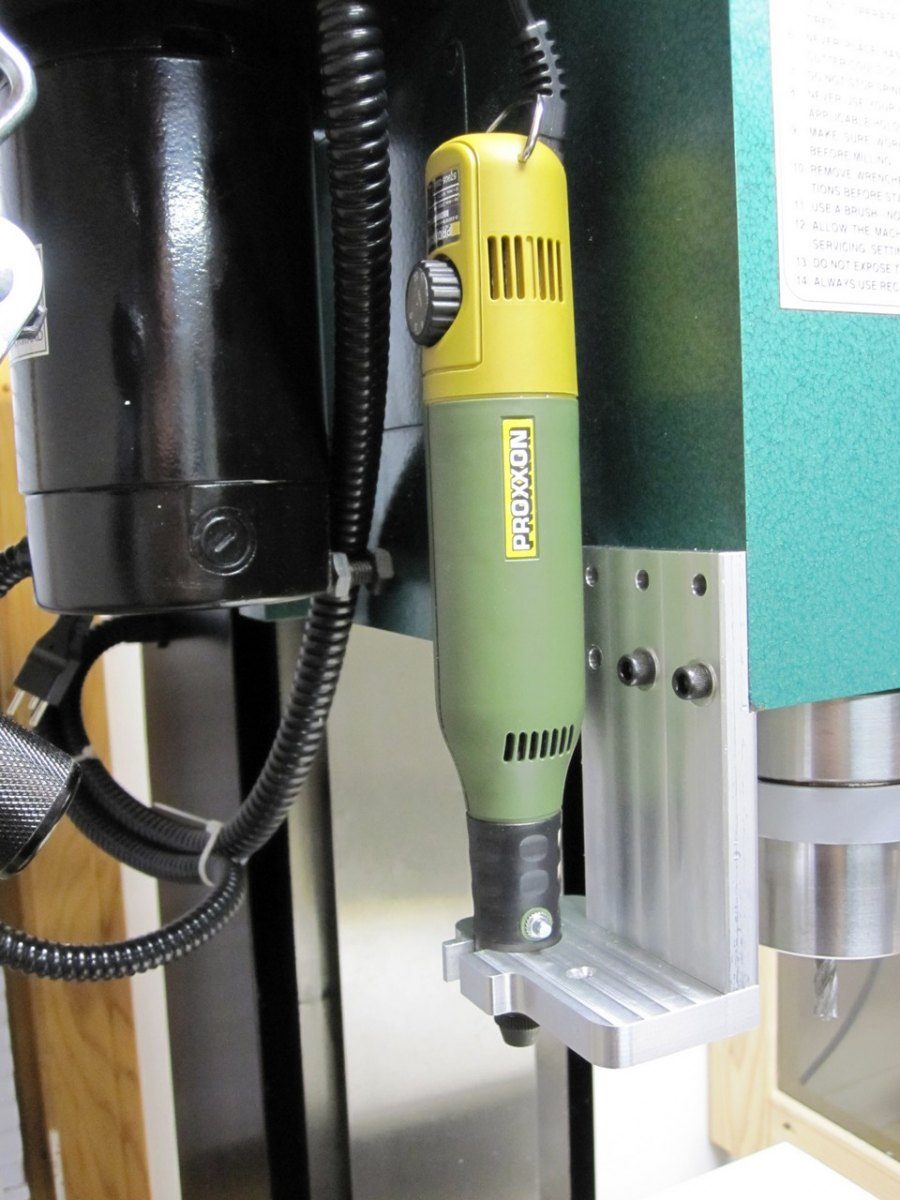

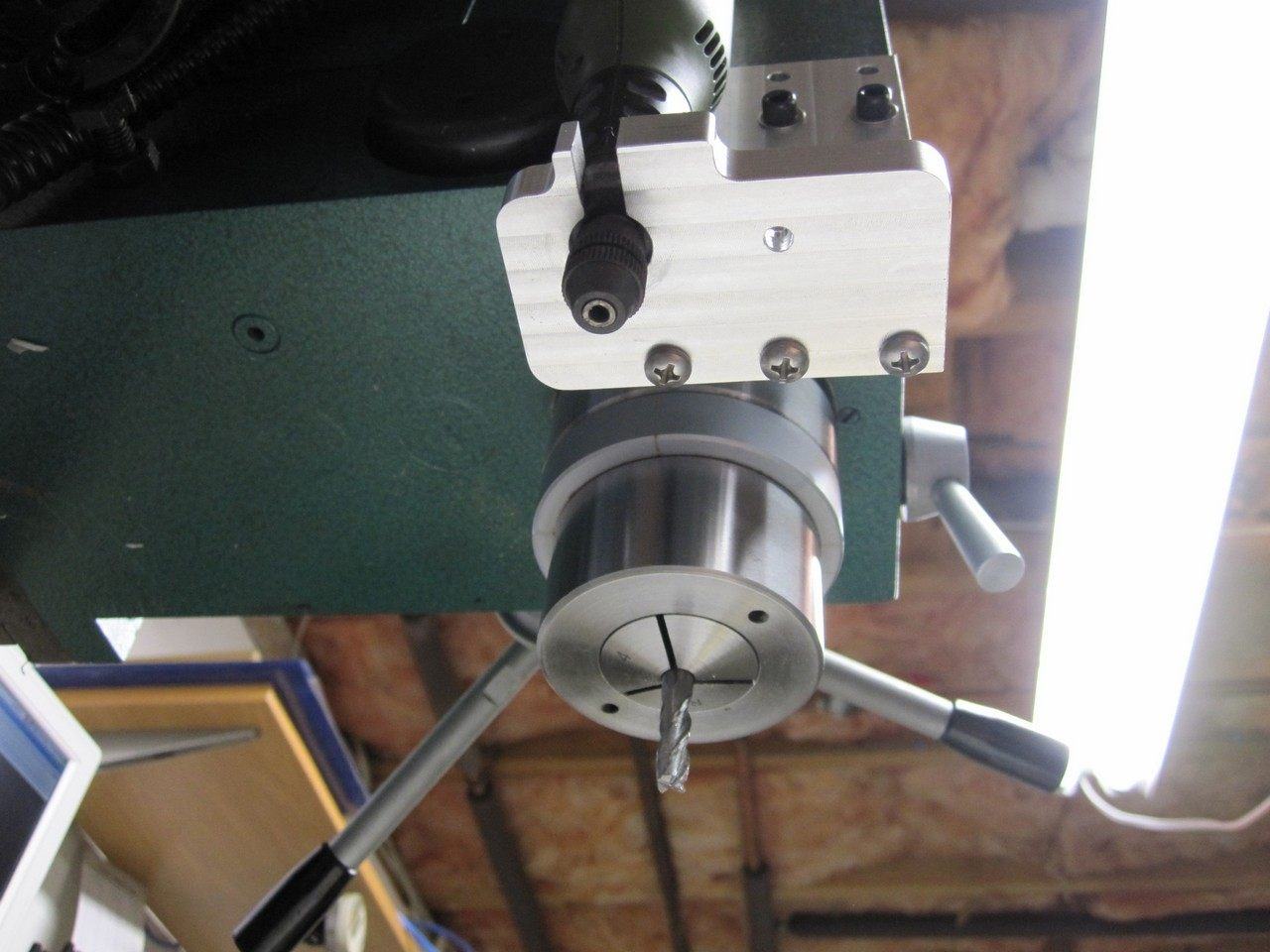

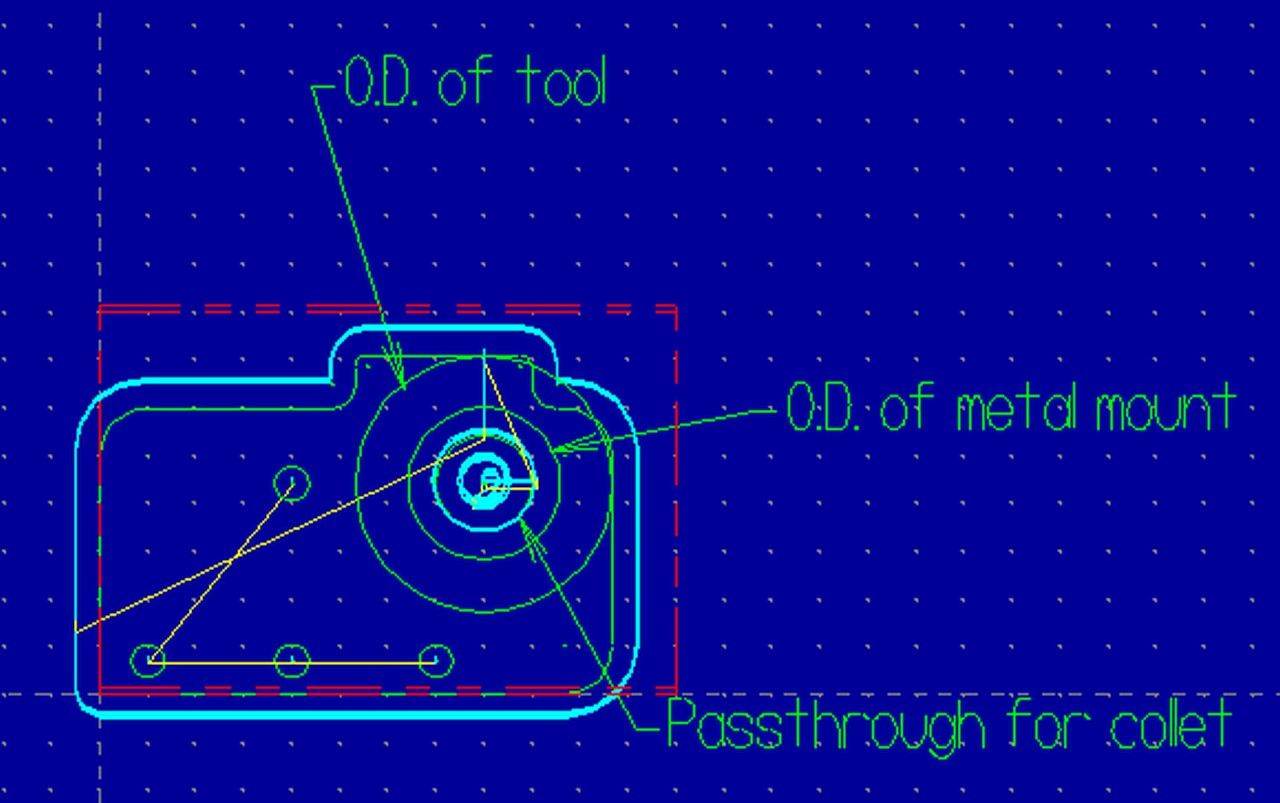

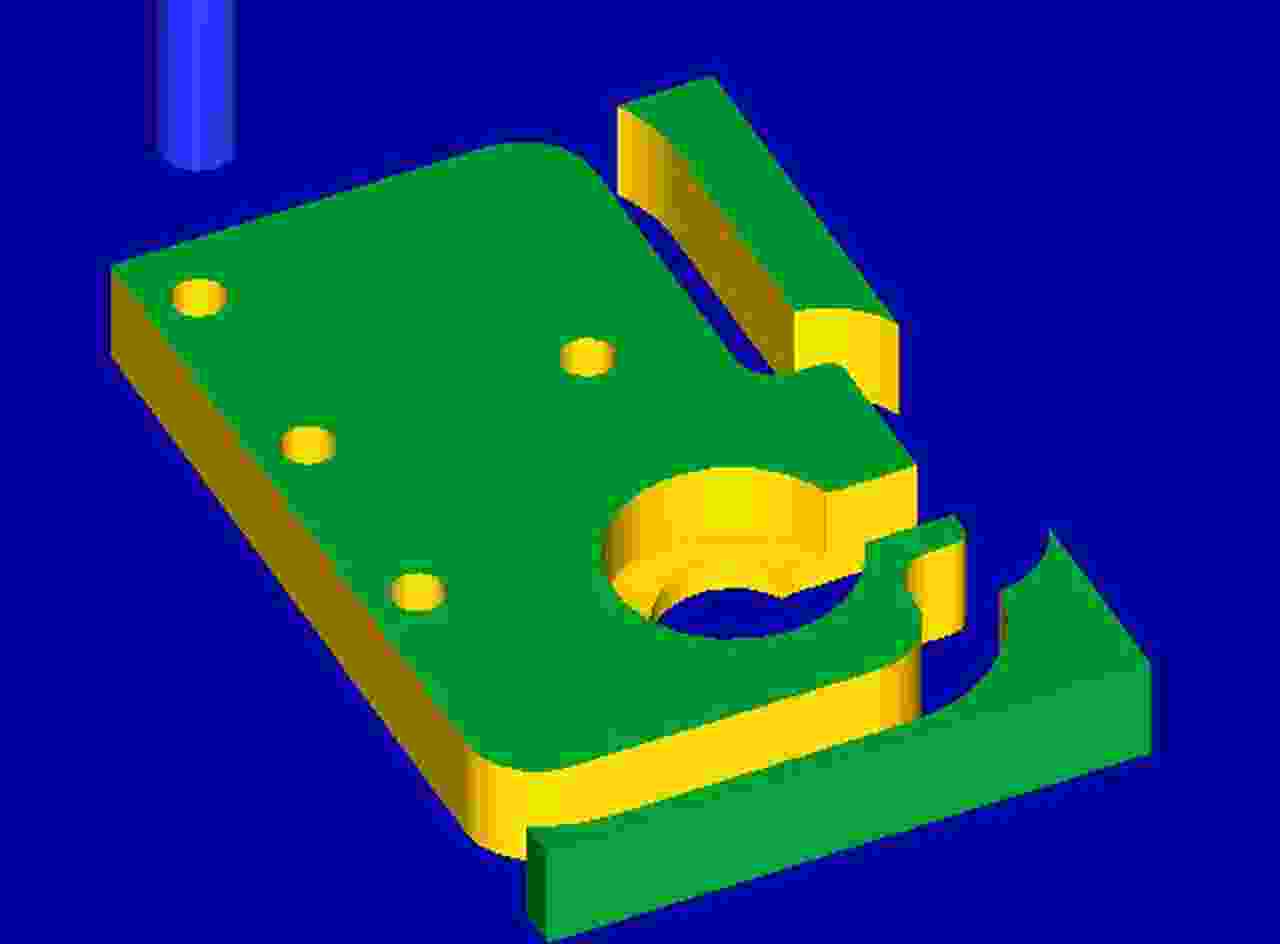

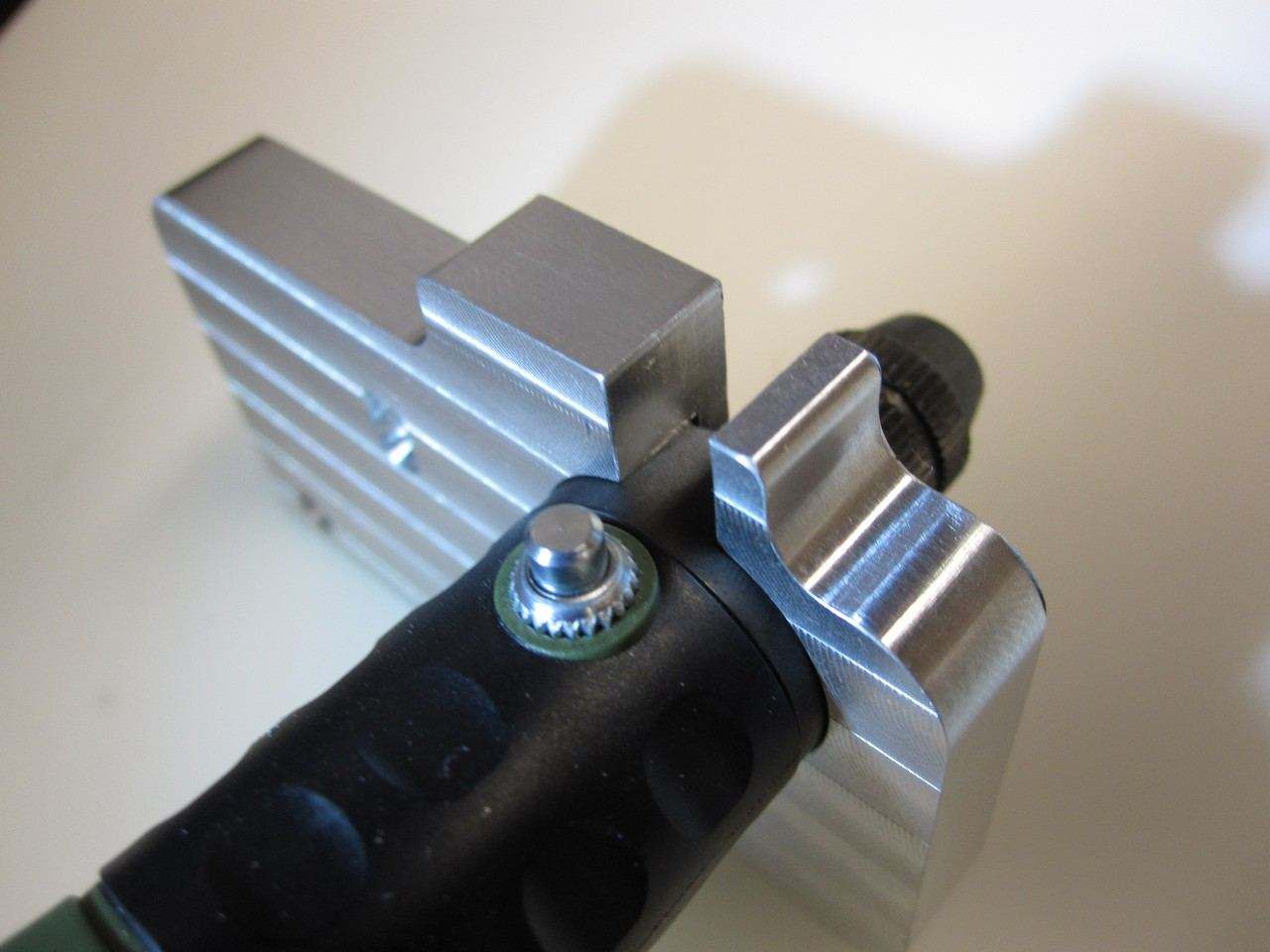

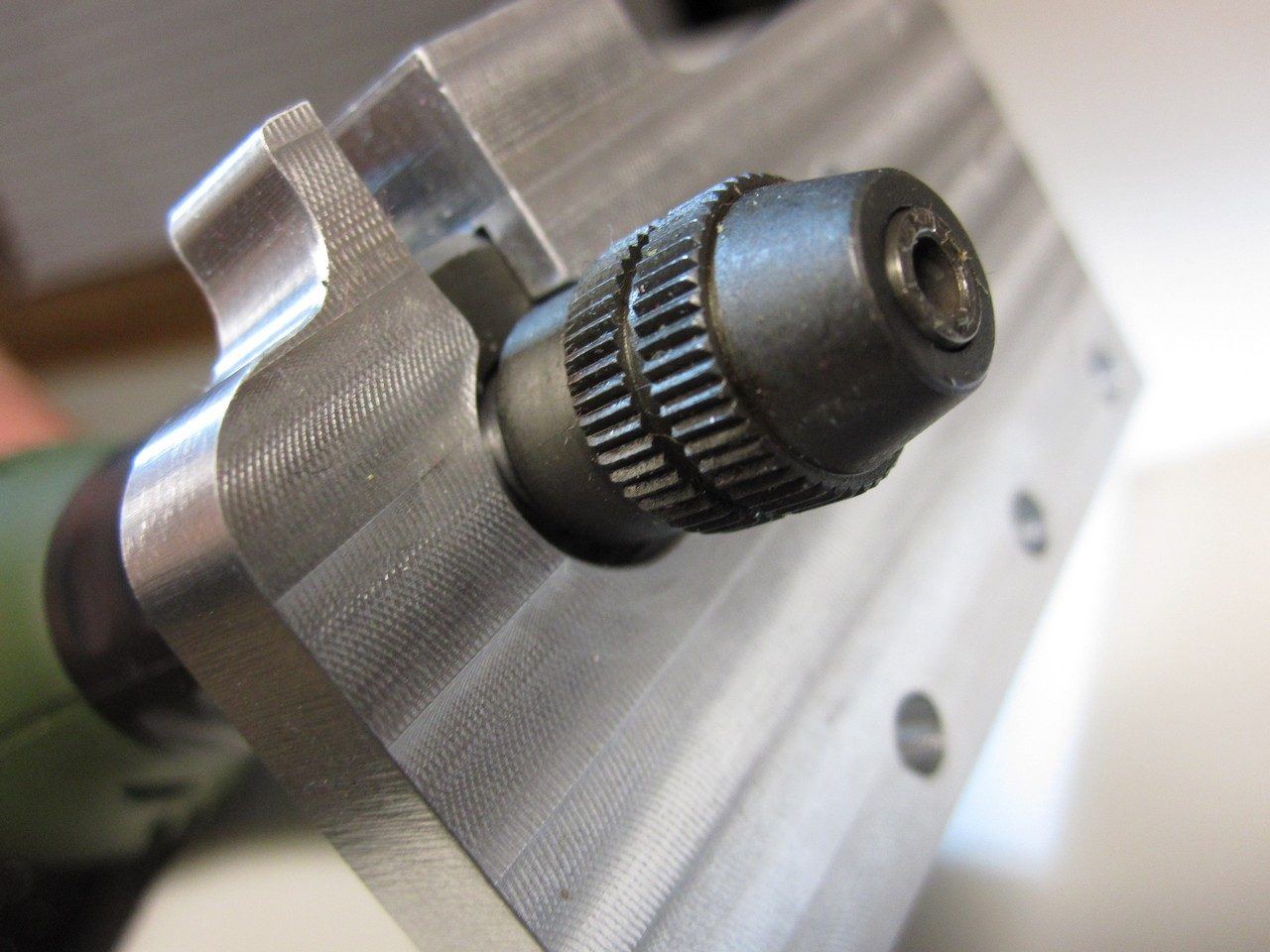

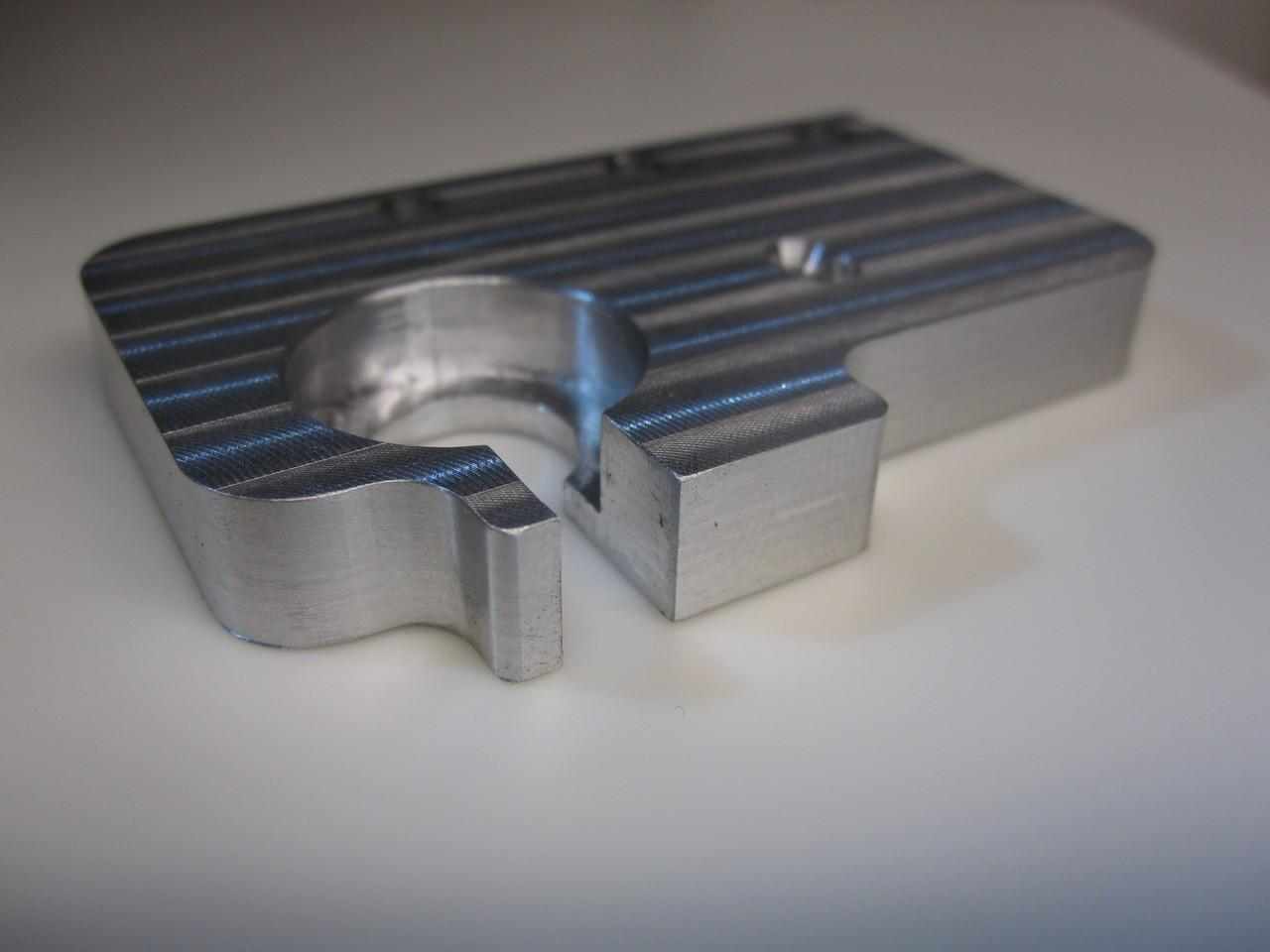

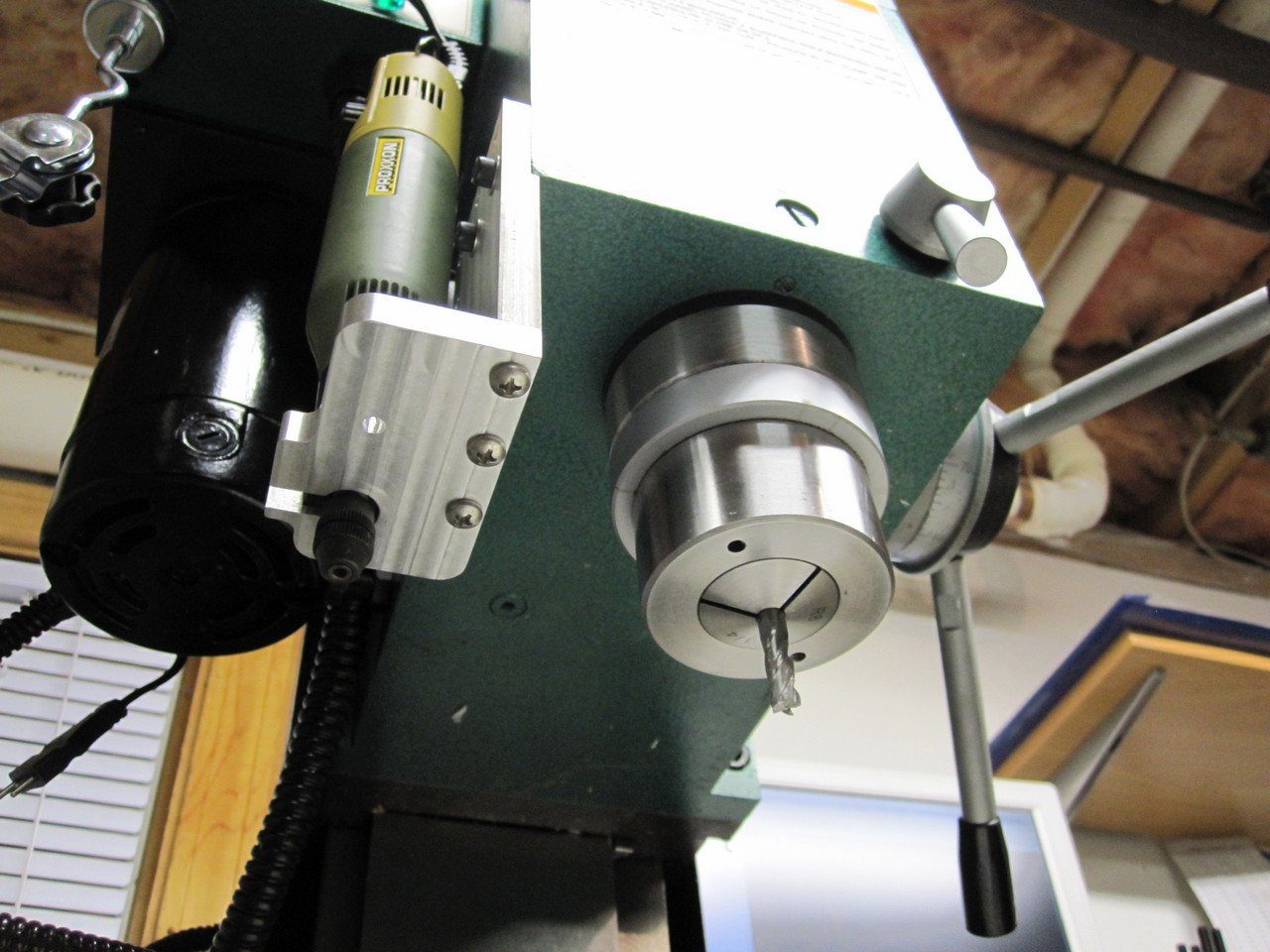

I’ve been working for the last week or so on a mount to hold an auxiliary high speed spindle on my mill.  I chose a Proxxon Micromot 50/EF tool, which is a fairly slim 12V handheld rotary tool (think Dremel).  I wanted something powerful enough to do high speed engraving, but probably not a lot more.  The tool spins at 20,000 RPM unloaded, which is literally 10X faster than what my X3 mill spindle spins at.  The general rule with cutting tools is that you need higher RPMs when the tool diameter shrinks, and the engraving cutters are ridiculously small.

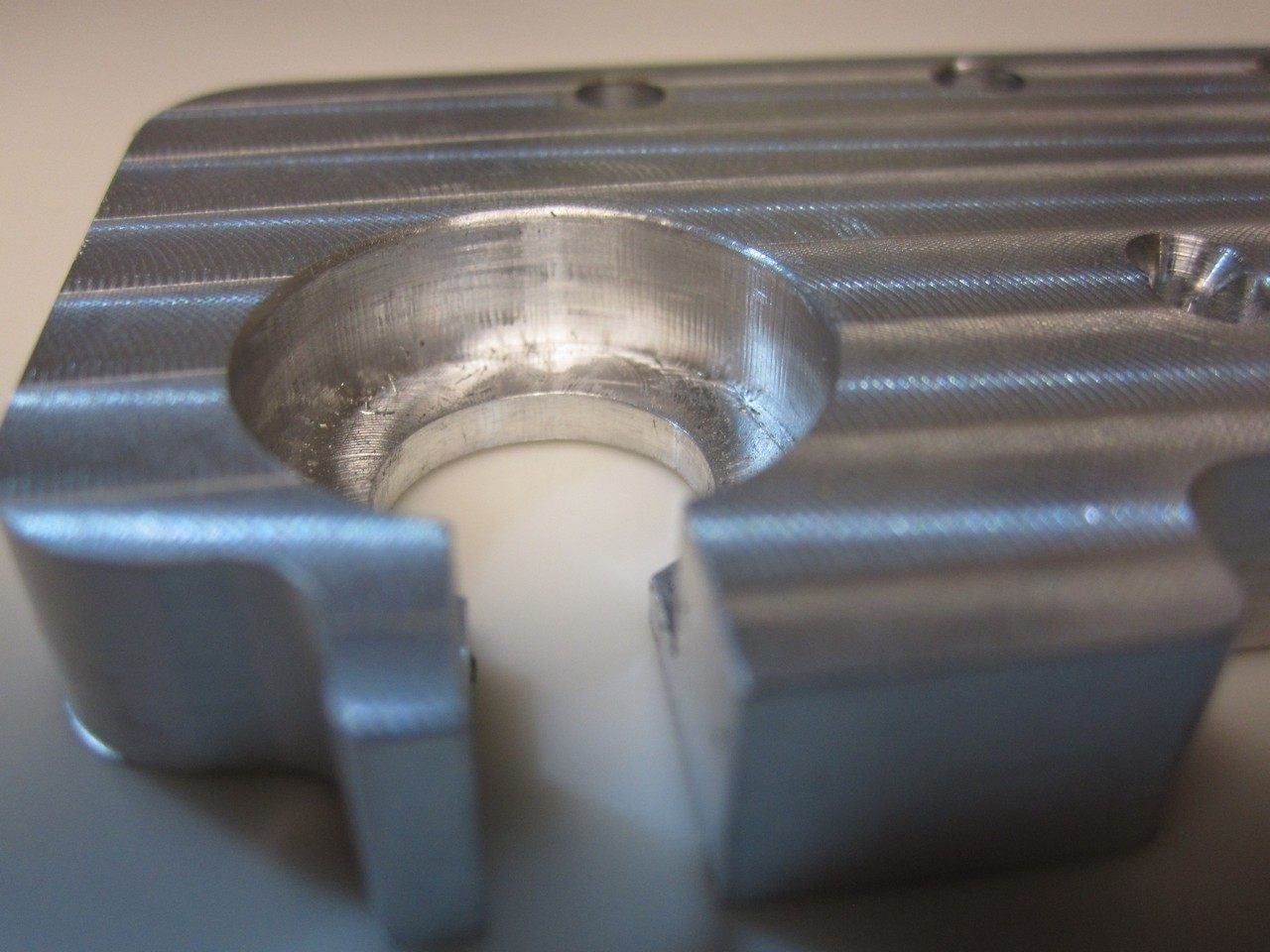

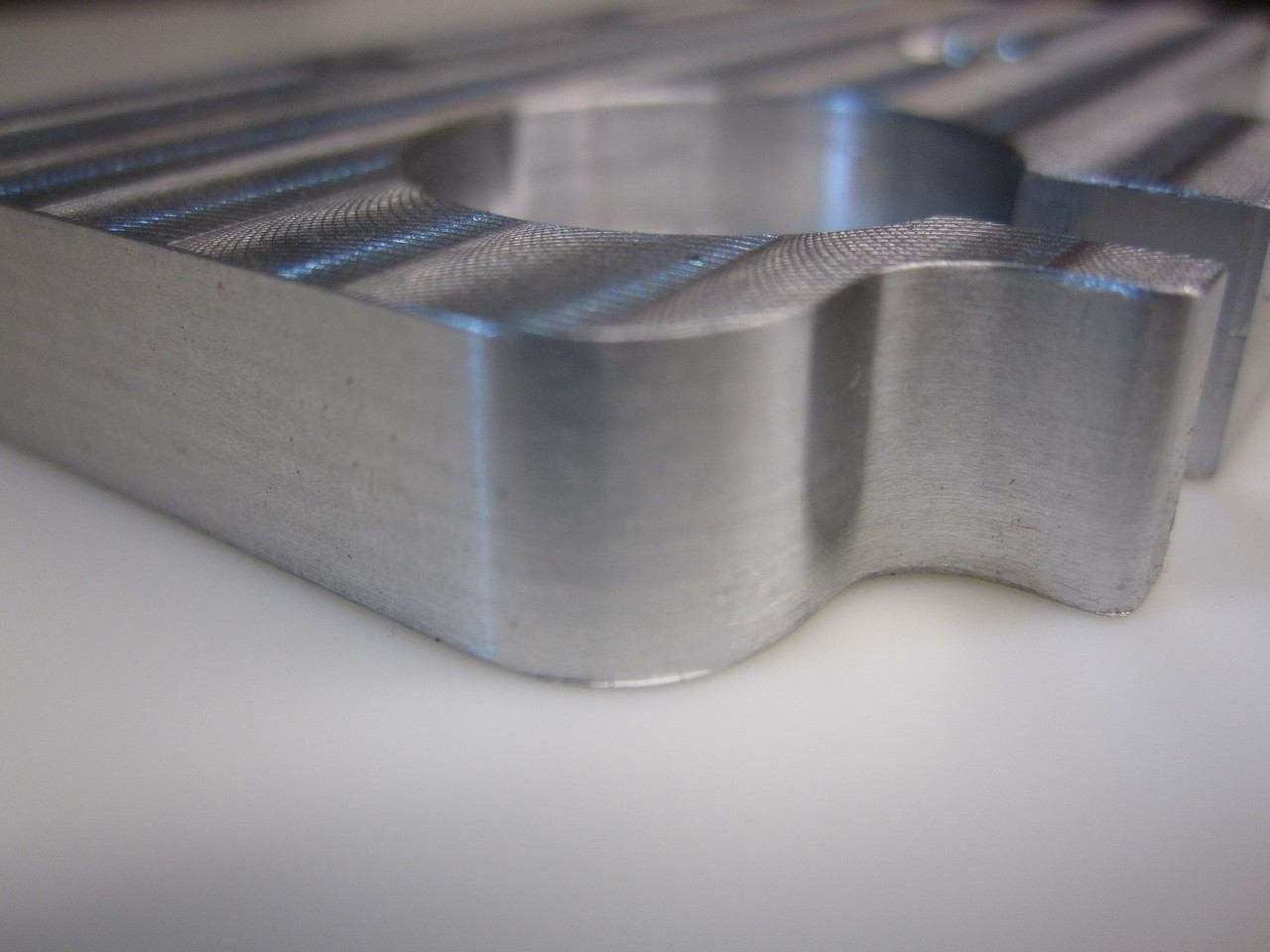

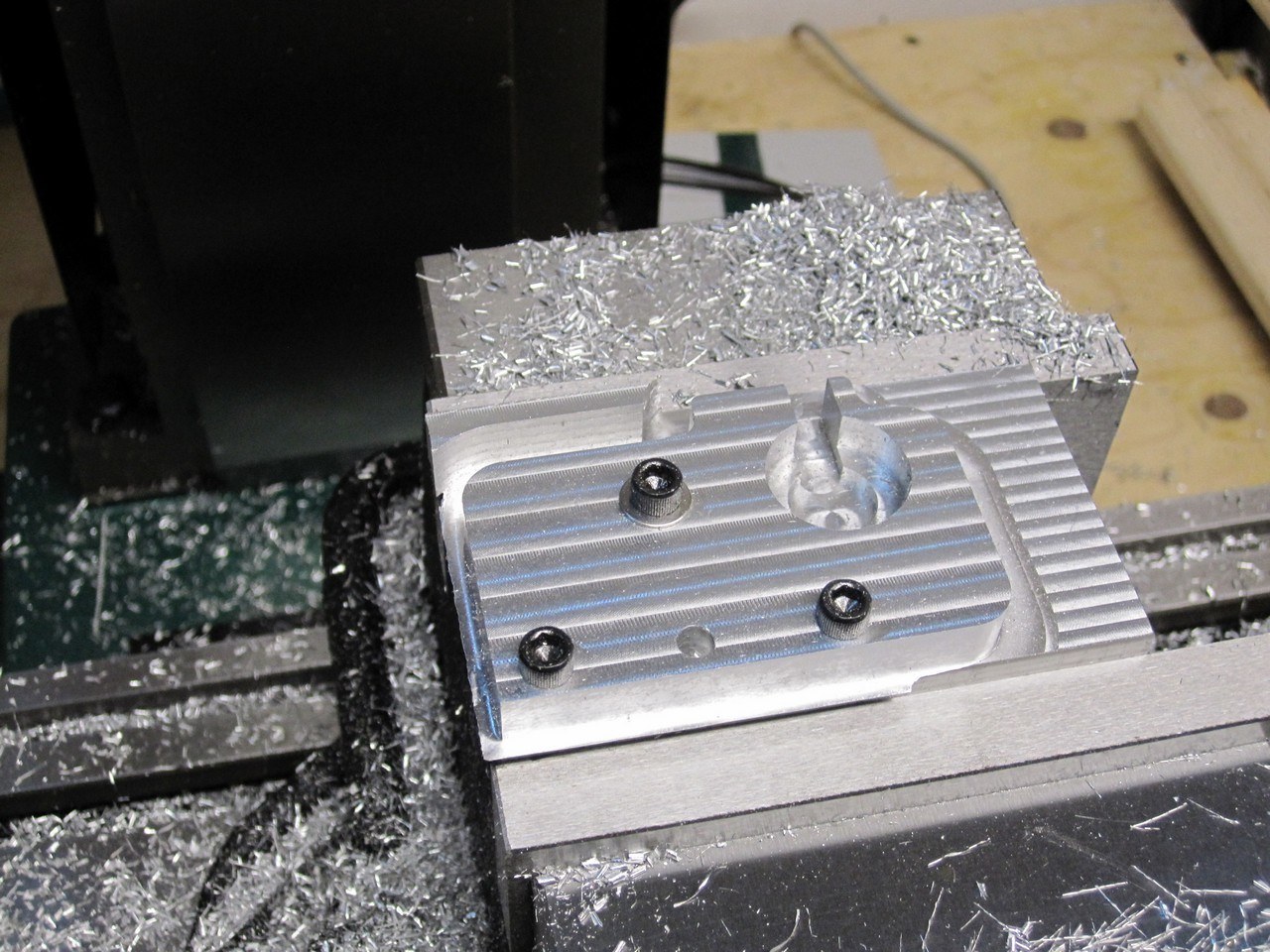

I wanted to use the opportunity to try out some new techniques and make the part “the right way.”  I knew I wanted to try making a fixture for the part, and I wanted to pay extra attention to speeds and feeds and shoot for a nice finish on the part.  It took one attempt with taking cuts that were too aggressive to dial back and fine tune the feed and depth-of-cut (DOC).  The second attempt turned out much better, and I attained a nearly mirror finish on the vertical surfaces, along with a much happier sounding tool.  I used a mix of MDI (manual commanding of the machine, e.g. ‘go to X=1.0 Y=0.175′), manual drilling with the quill, a facing wizard program to face off the aluminum stock, and CAD/CAM to design and generate G-Code for the bracket.

I put together a video that shows many of the steps of the process for making the part, with a quick bit at the end showing the high speed spindle doing some engraving.

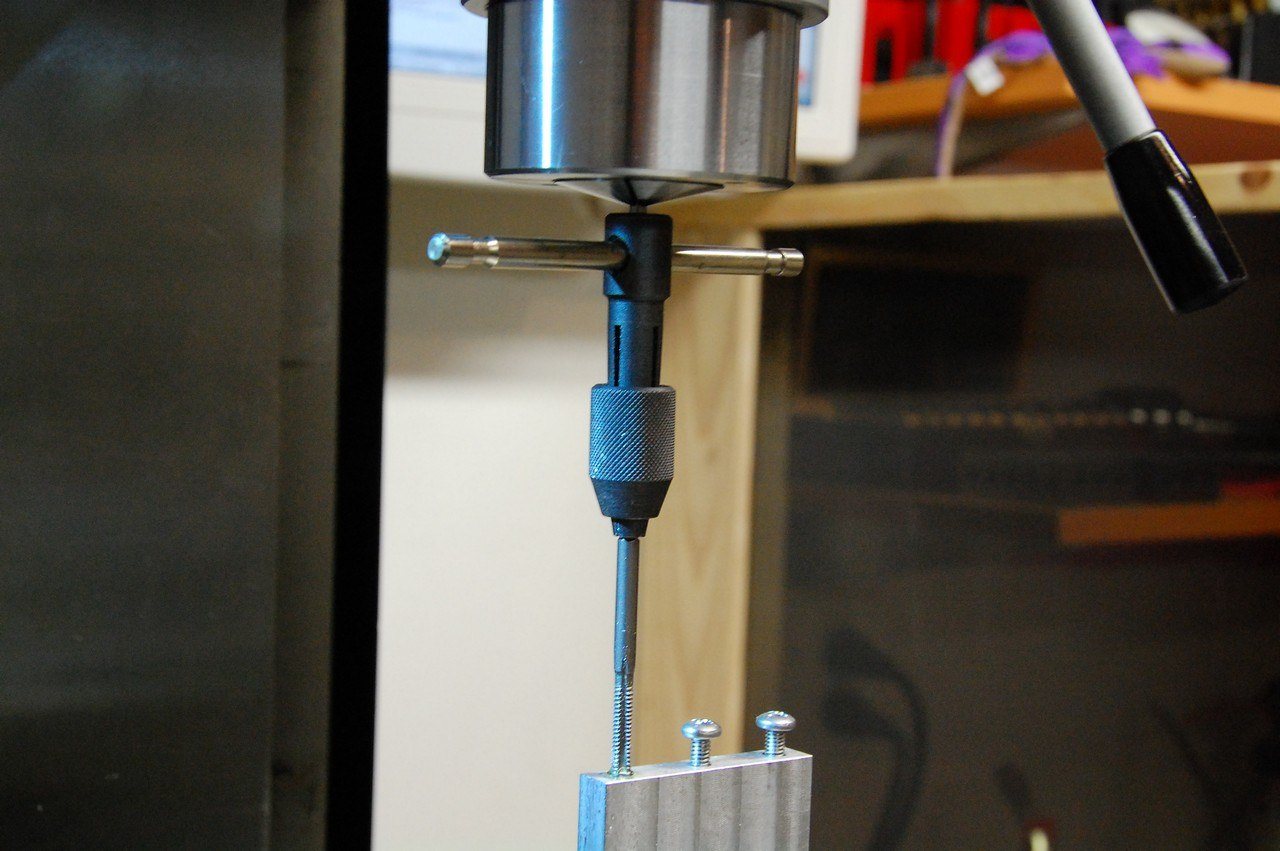

I still need to drill and tap for the clamp screw, but the fit was tight enough to run the engraving without it.

Here are several photos of the process, too.

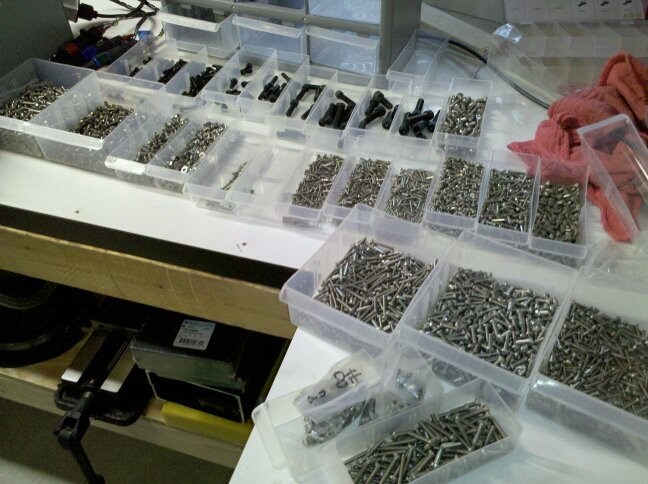

I received a big assortment of 18-8 stainless steel hardware from eBay, with a lot of useful sizes/threads.  It was a decent deal, given how expensive good quality hardware tends to be.  I’m sure I’ve got way too much of several things, and still lack things I need.  If you happen to see something on here you need, let me know, chances are I’ll sell you a bunch for a good price, or will trade for more variety.

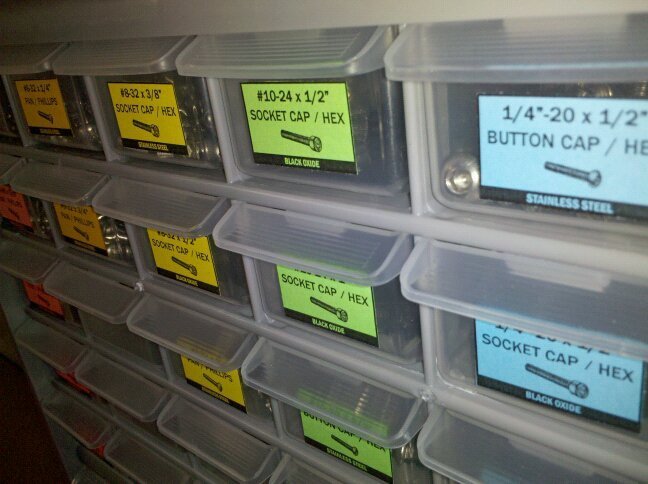

Of course, I had to organize them in something, so I picked up a cheap plastic 39-drawer bin from HD for $20 and went to town with some custom-made labels.  I did the labels in OpenOffice Draw, with pictures from McMaster-Carr.  Printed them out on various colored paper, cut them out, and sprayed them with 3M Super 77 spray adhesive.  The colors indicate size, and the text and images give the details.  Should be a fairly nice way to find stuff, providing I am motivated enough to keep the drawers current as I add more hardware over time.

Read more »

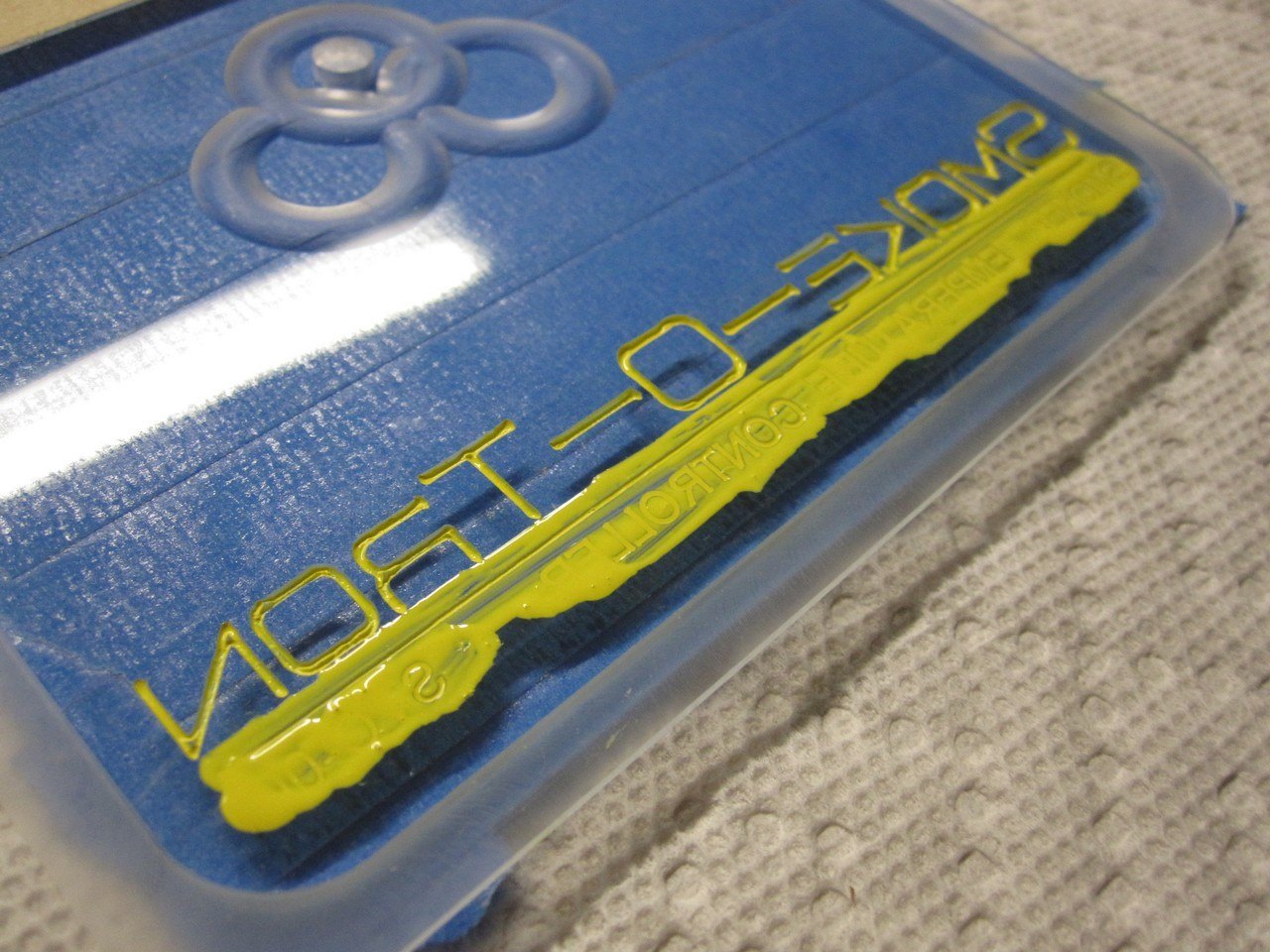

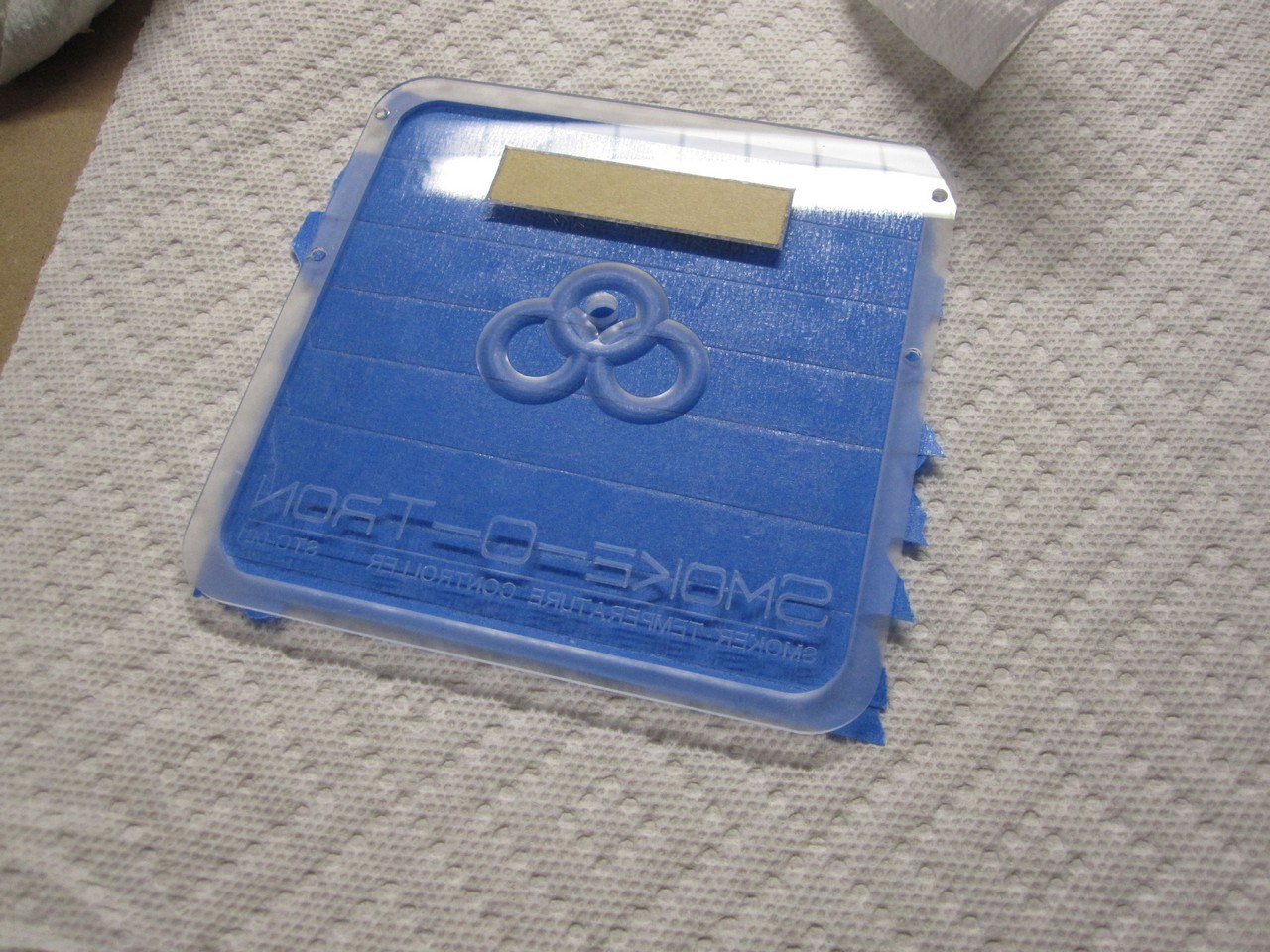

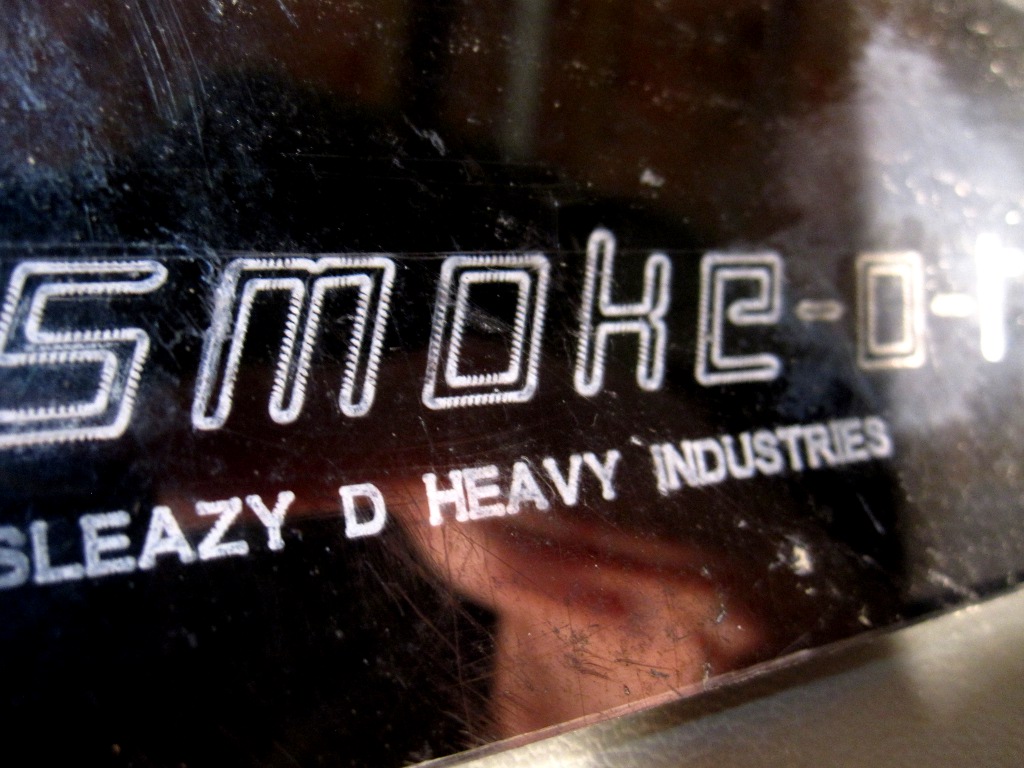

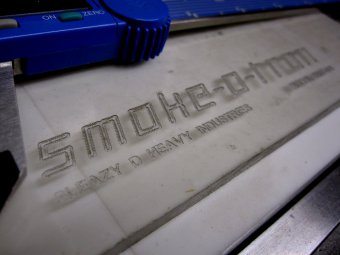

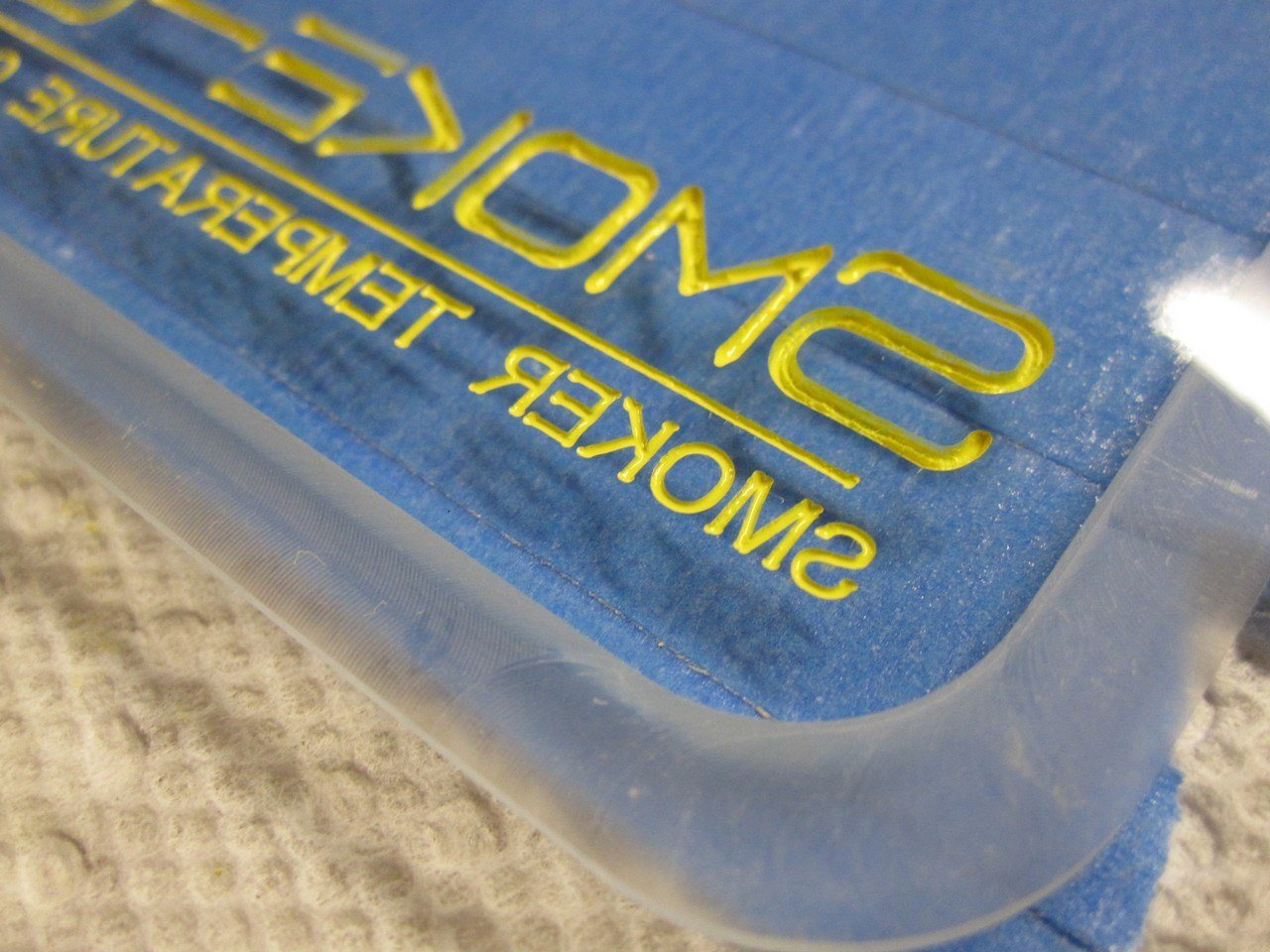

Did an engraving test tonight with some new engraving bits that I got from this eBay seller.  Decent results, though I am plagued by the X3′s slow spindle speeds.  I tried an experiment of painting the engraved text and then backspraying the entire piece with flat black, to see the text through the 1/4″ polycarbonate.  It looks pretty decent – kind of a classic look, but still better (and less hokey) than anything I’ve produced on my own so far.  The closest I’ve come is printing text on a laser printer, carefully cutting it out and using a Sharpie to color the edges, and sandwiching it between a front panel and a piece of clear plastic.

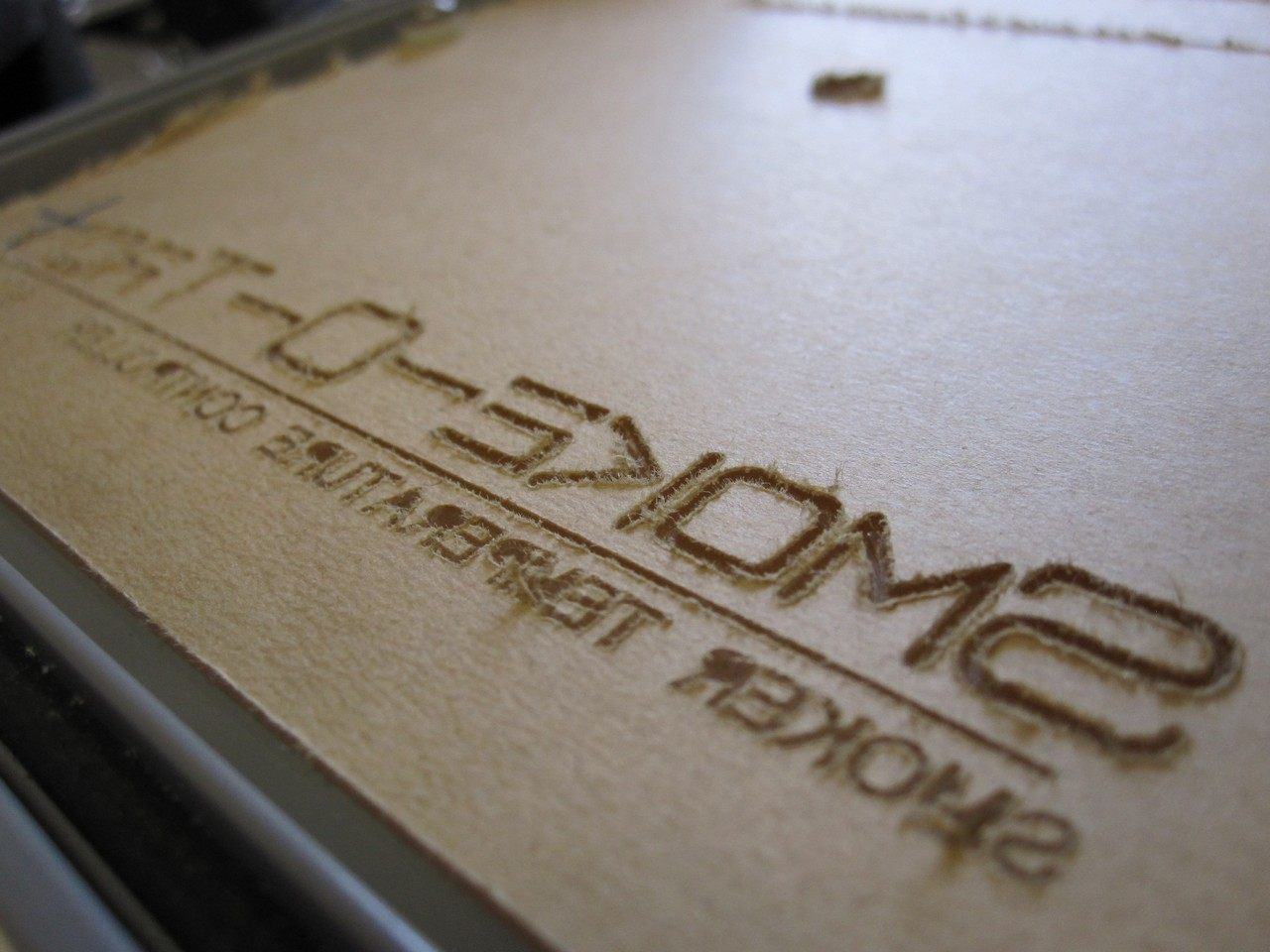

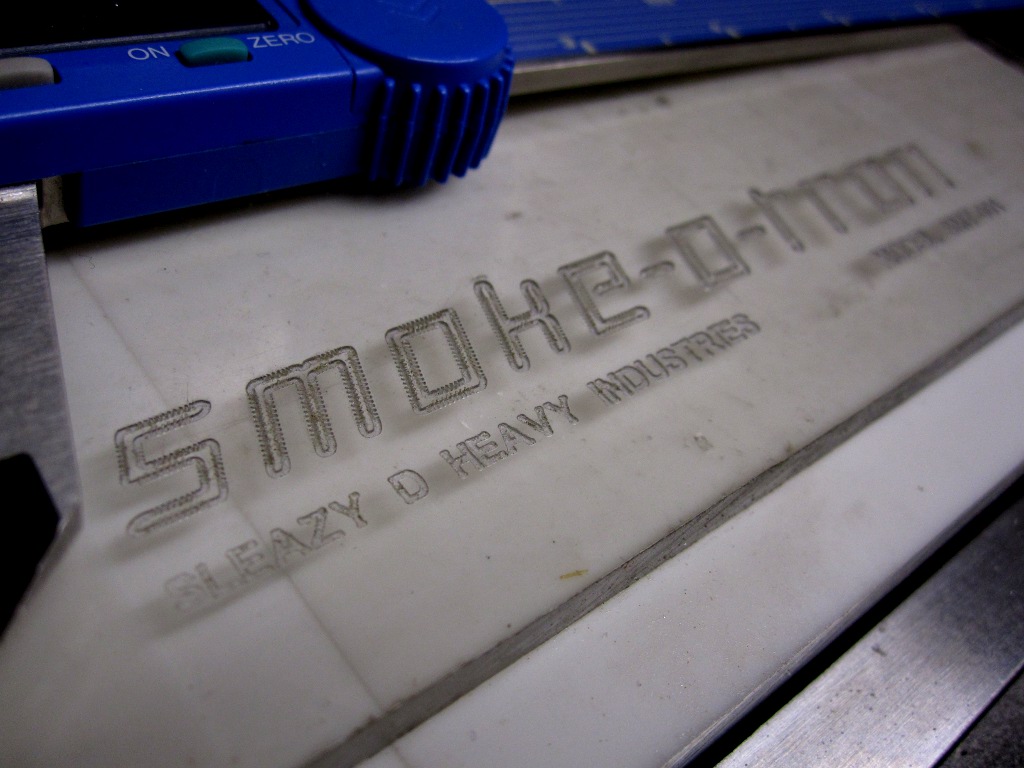

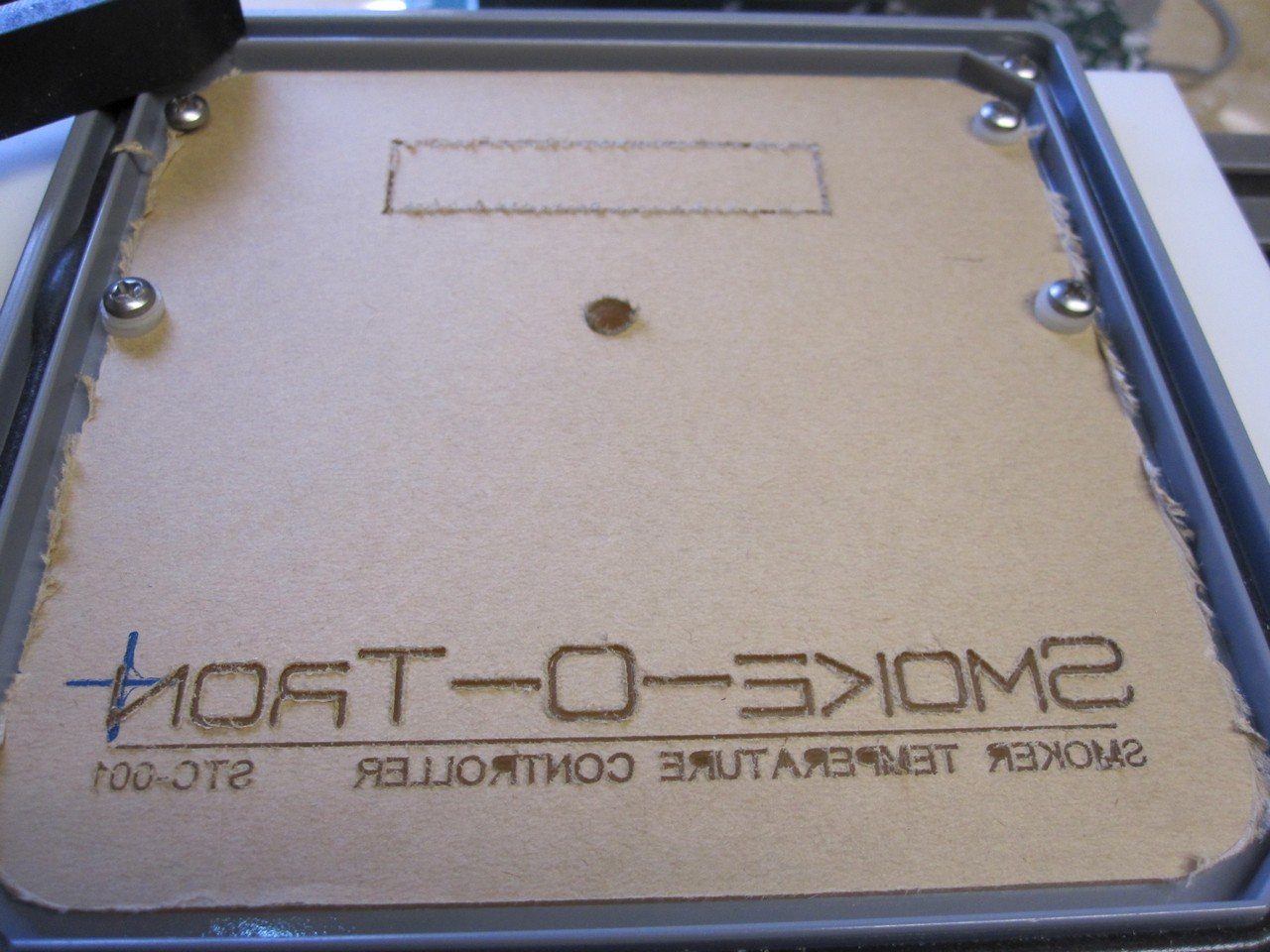

This is an experimental run for my friend Dan’s “Smoke-O-Tron” temperature controller that he designed and built for his meat smoker.  I am doing a little bit of enclosure work for him to make it look snazzy, and work on my own CNC mill enclosure-making chops at the same time.

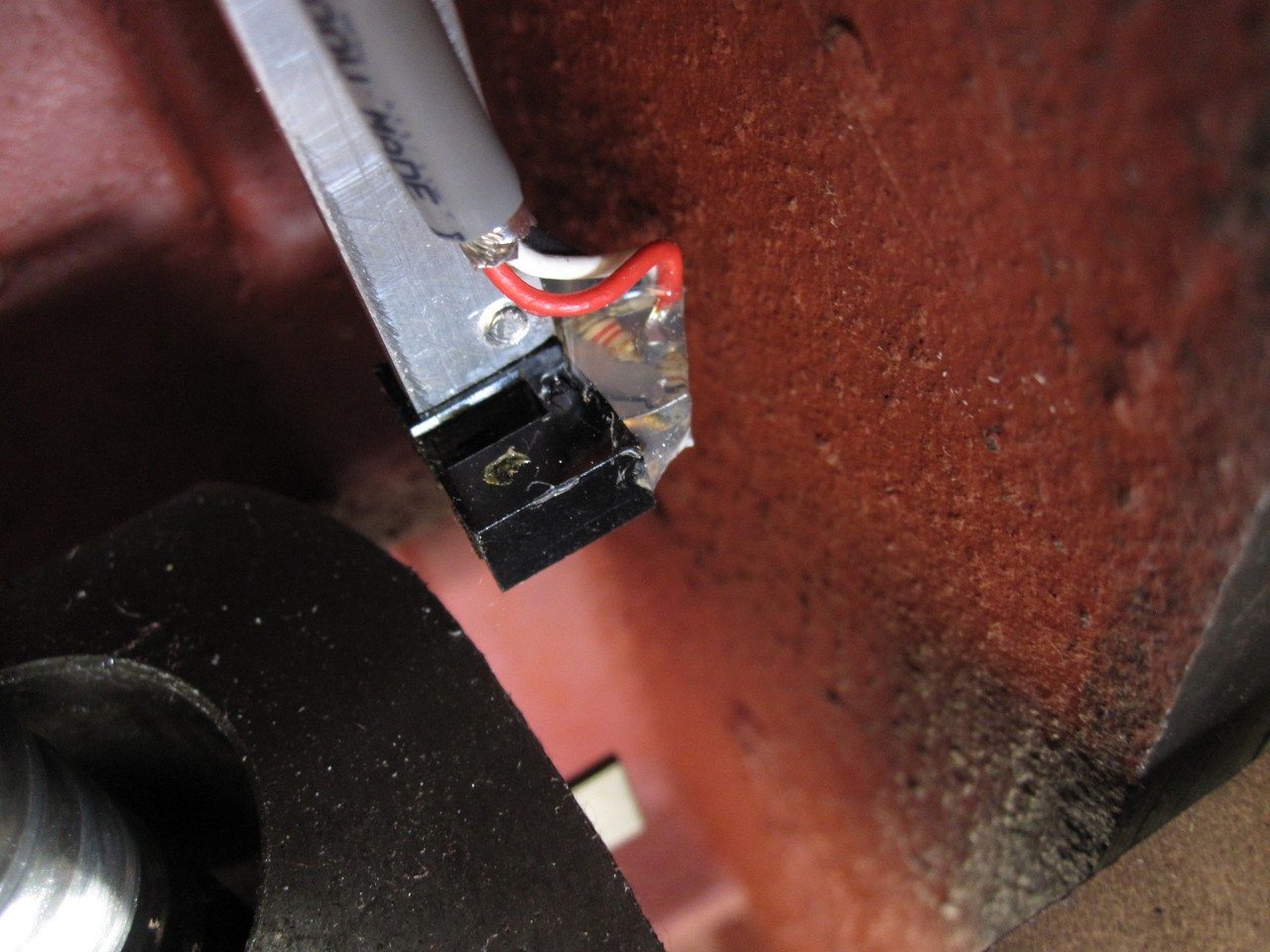

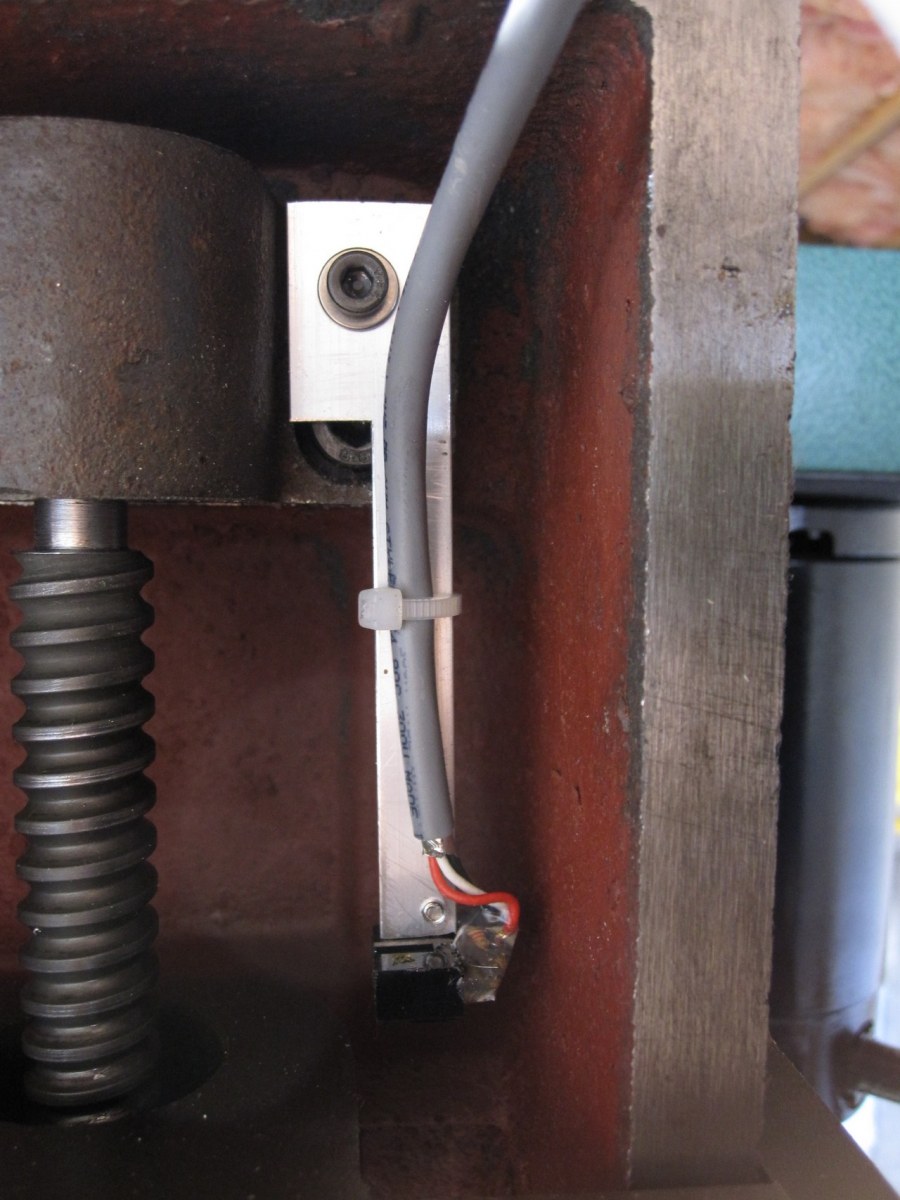

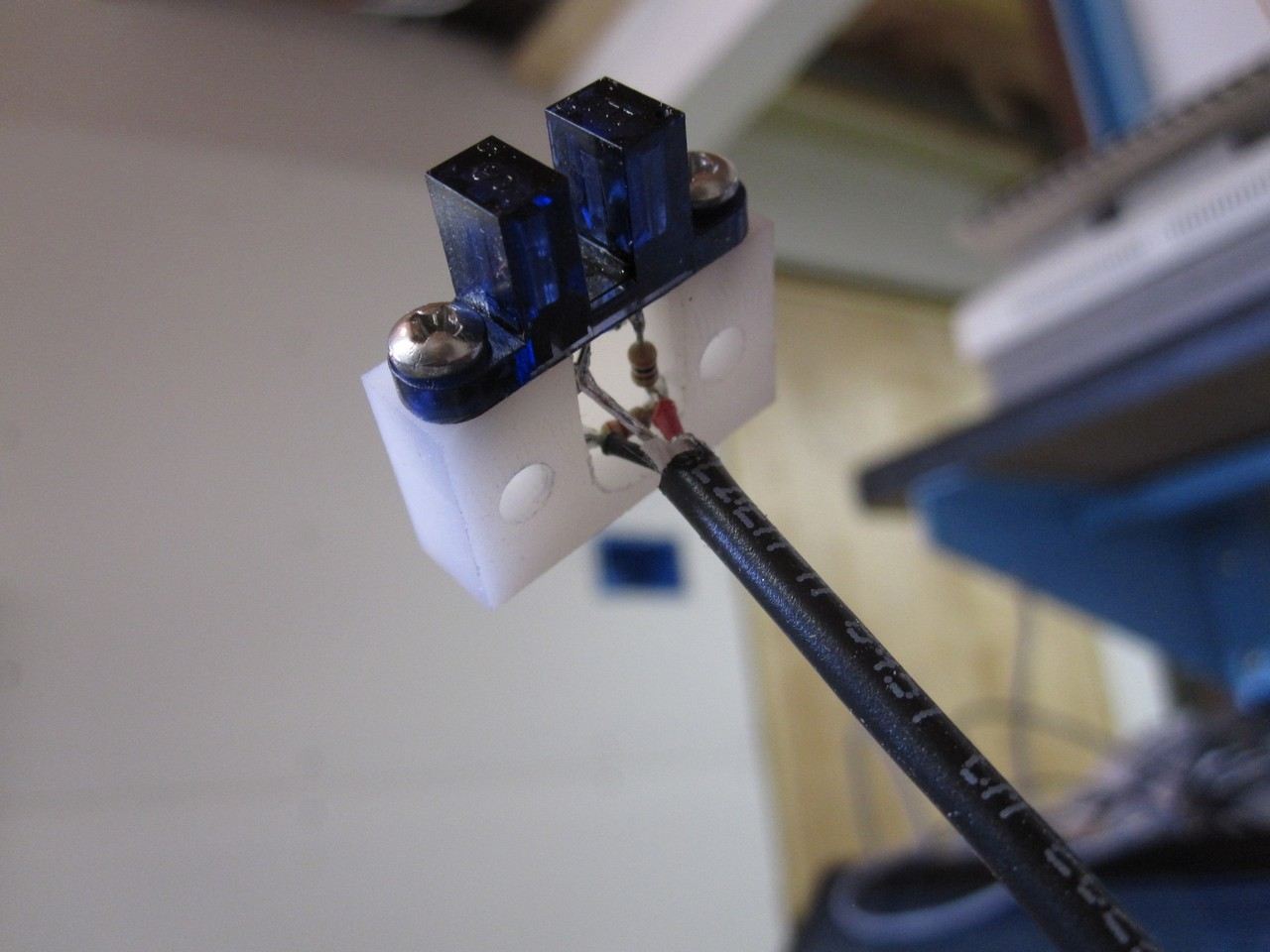

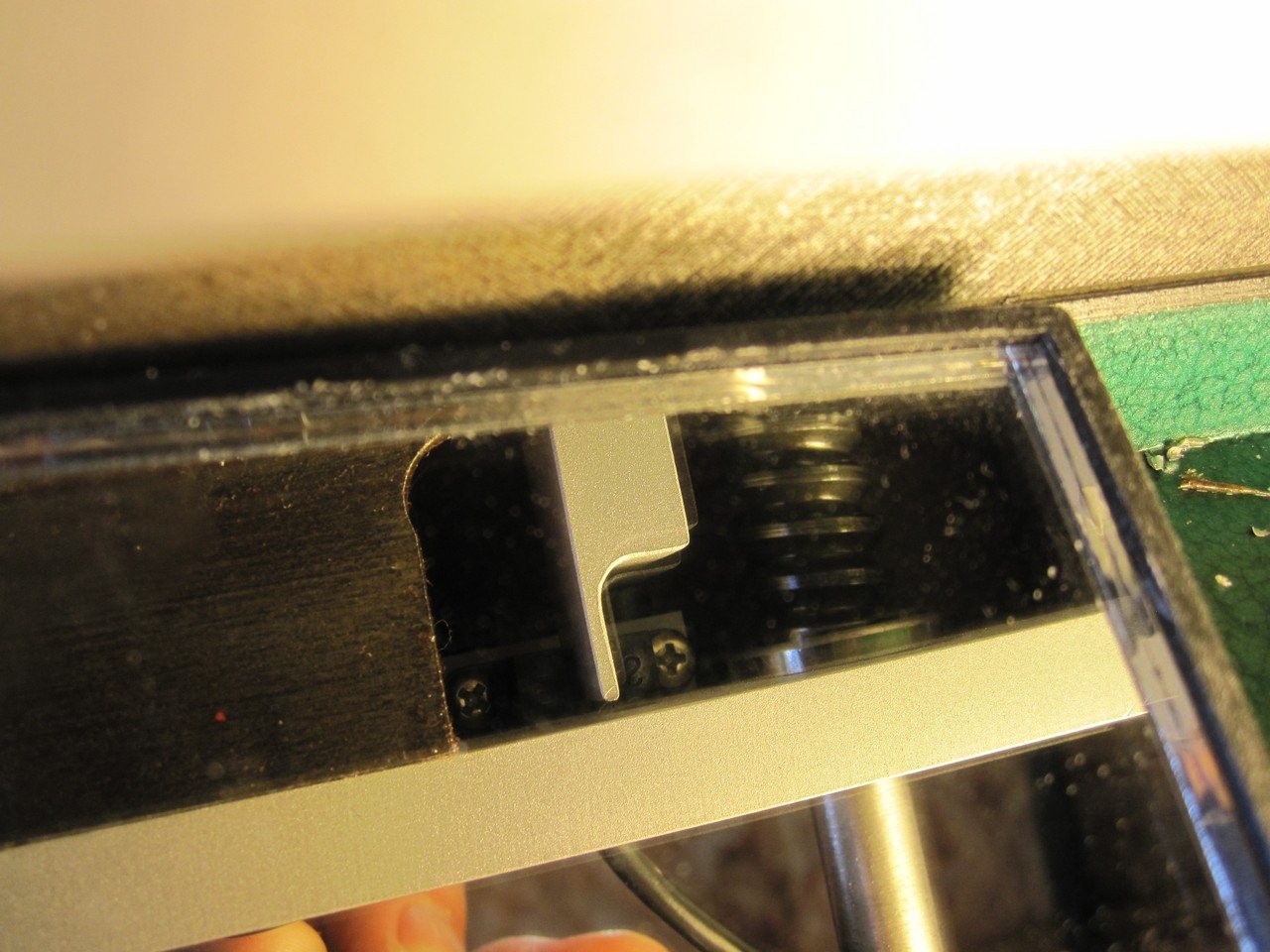

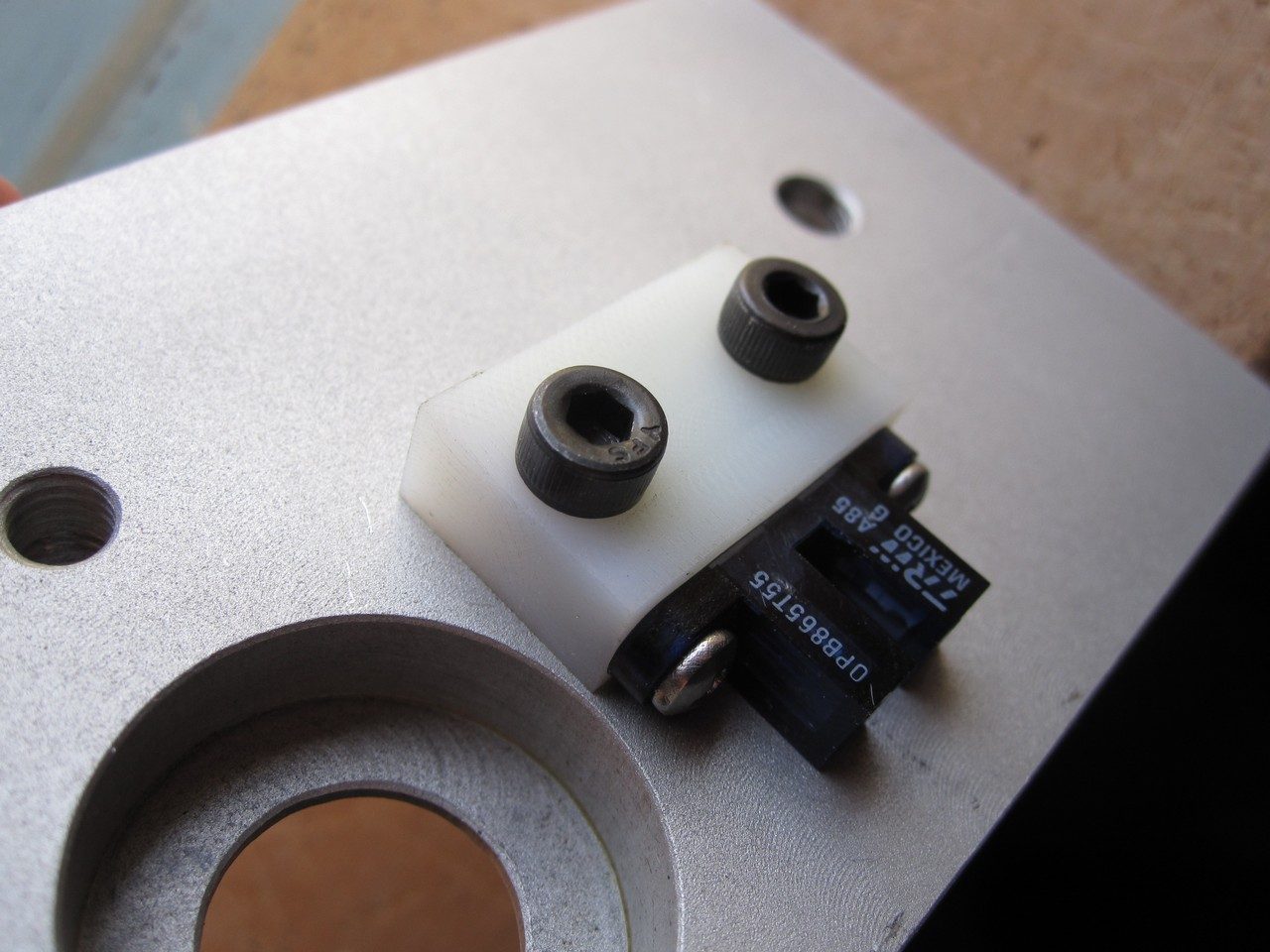

After more work than I anticipated making the Y homing sensor mounting block and making a bracket and sensor setup for the Z axis, tearing down half of the machine, rewiring, adjusting/loc-titing/rebolting, circuit hacking, and other general tomfoolery, the machine has functional homing capability!

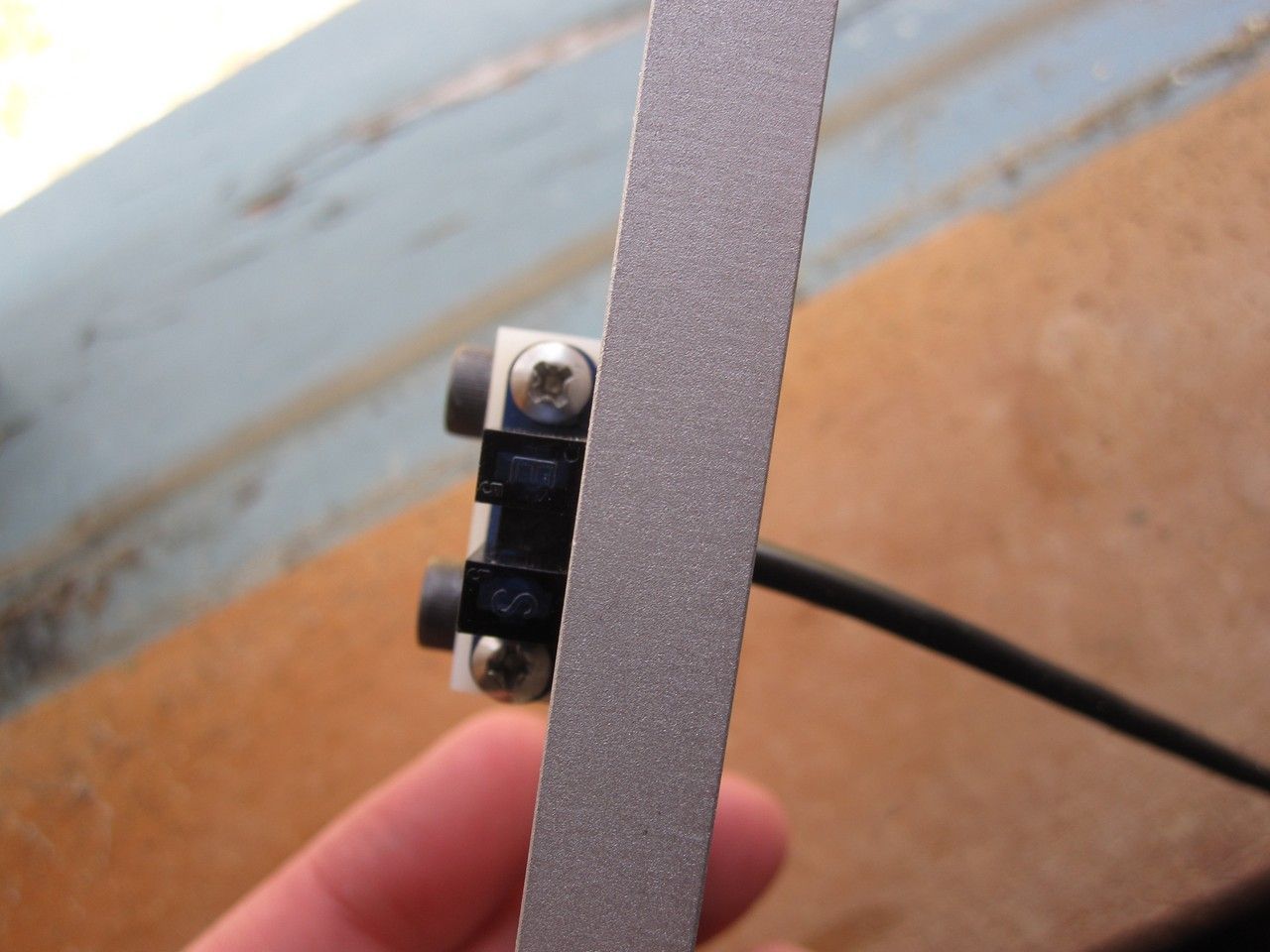

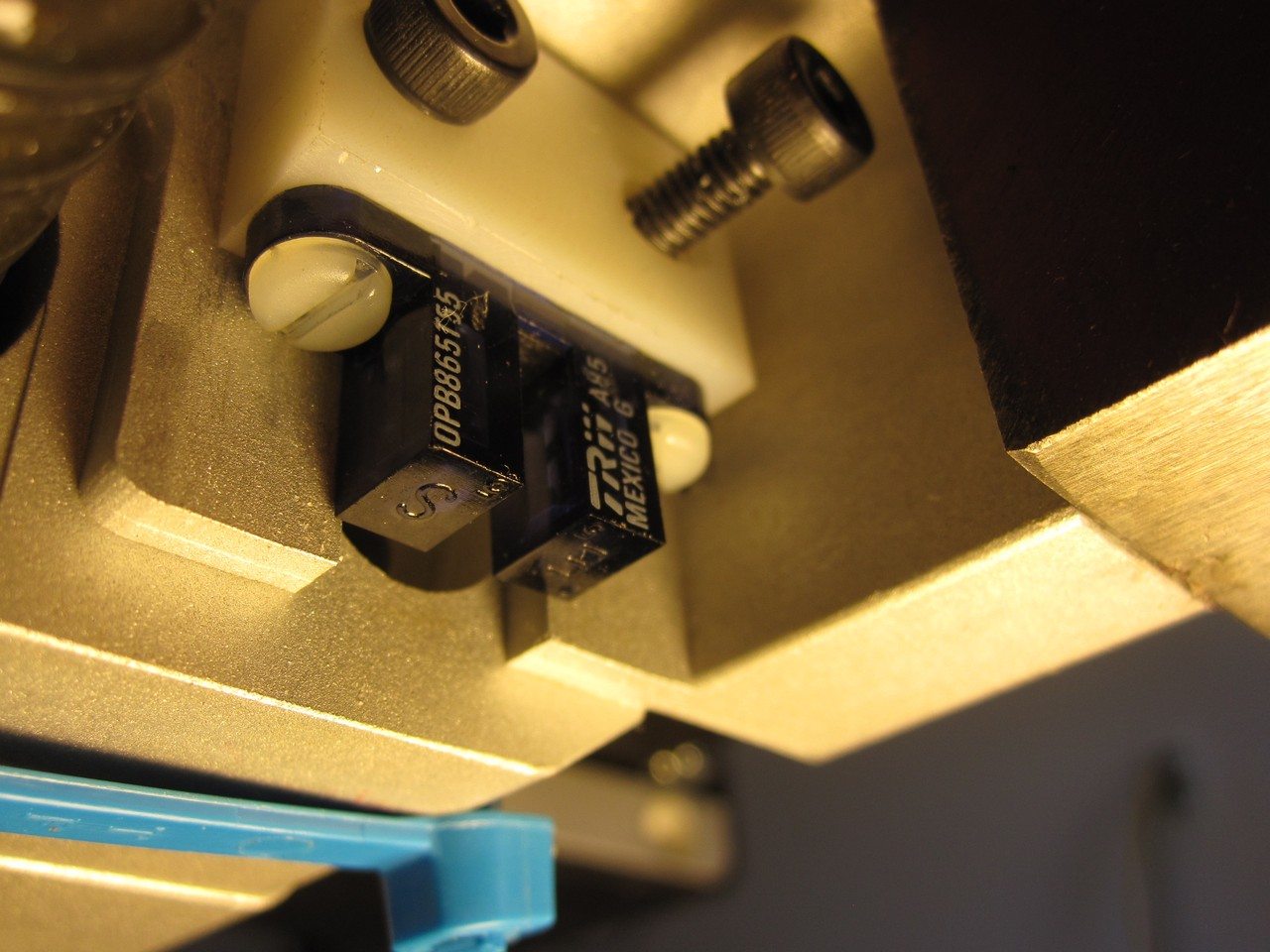

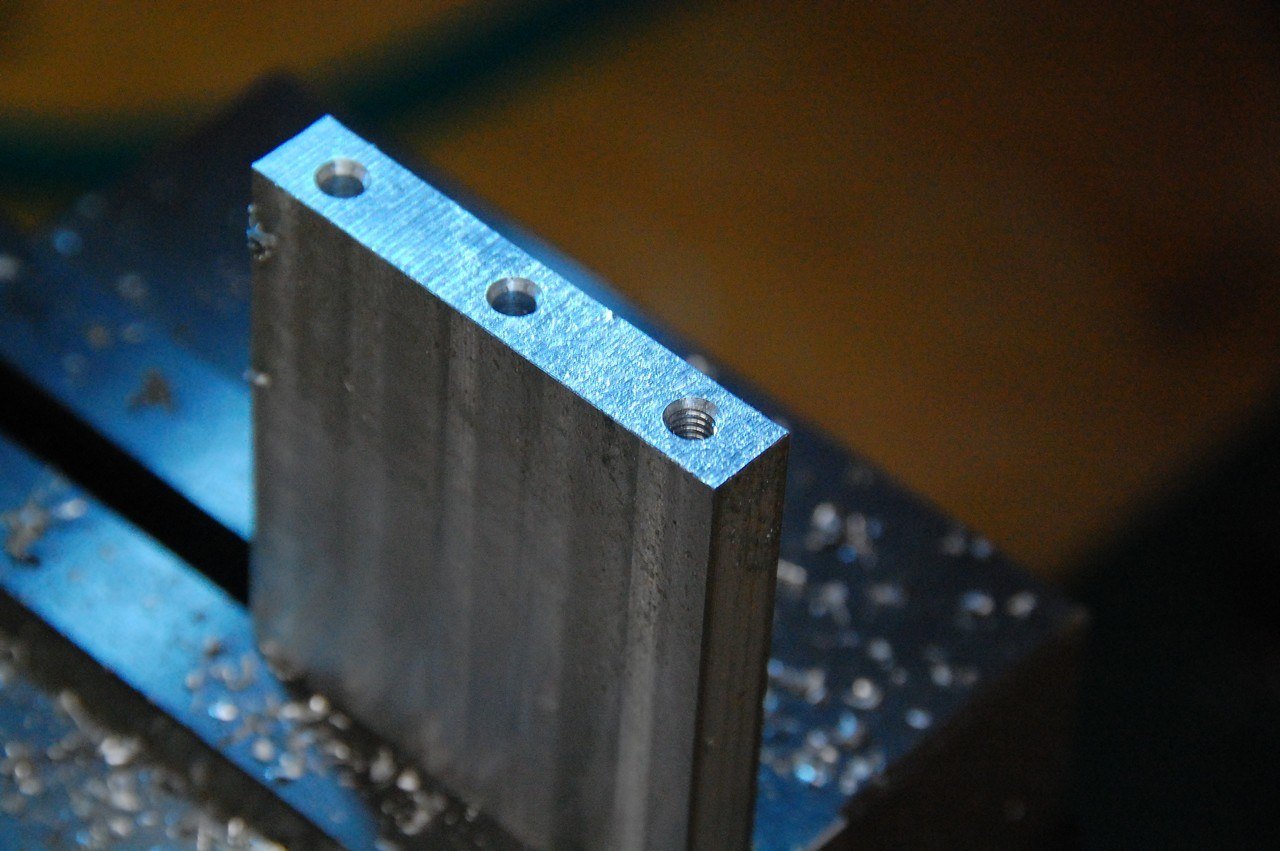

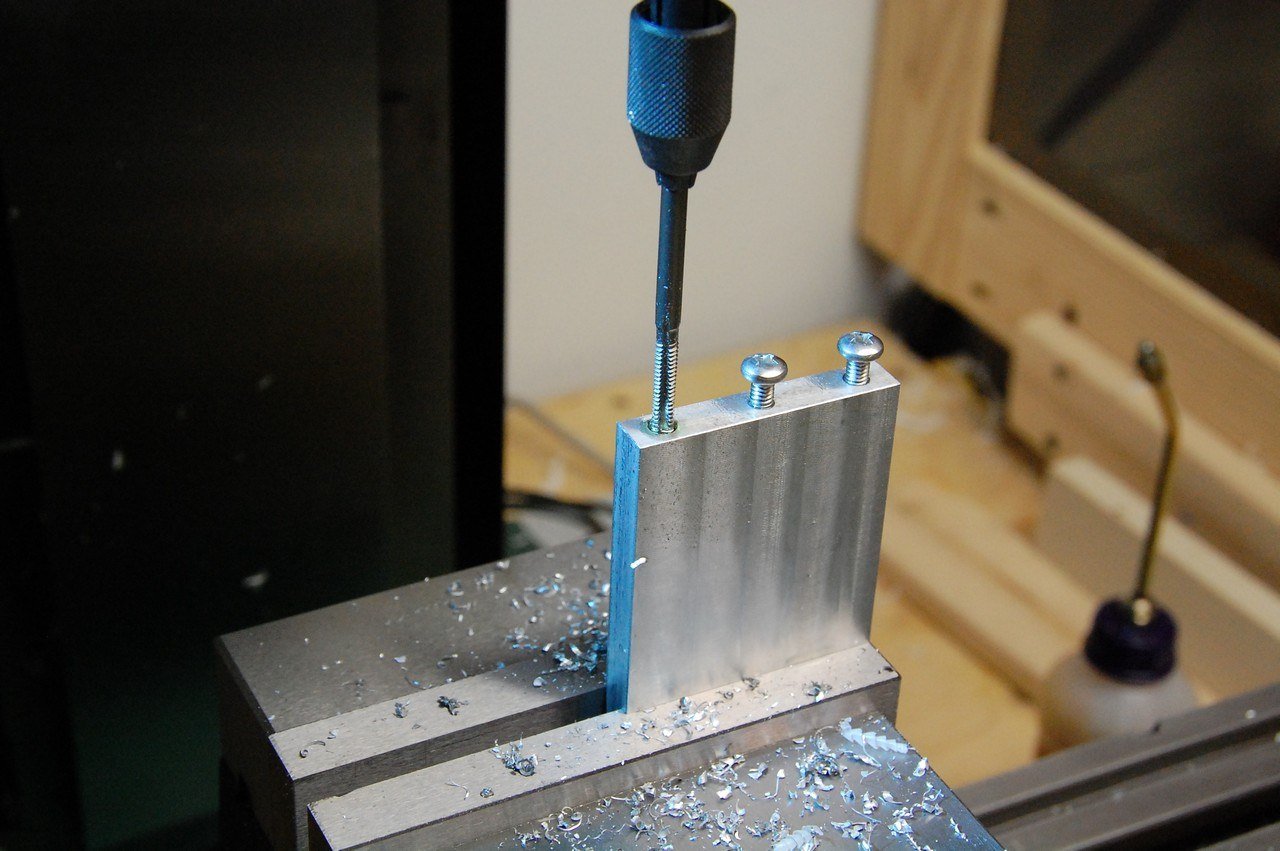

I ended up using the second block I had made when I machined the X block on Friday night.  It needed slight modification to work for Y, as the mounting holes were slightly different.  I unfortunately crushed one of the sensors discovering this (there’s no visibility to sensor when it’s installed).  The Z bracket was fairly straightforward, and I came up with a slightly simpler scheme than the ProMiCA version.

With all three axes installed, it came time to get them wired up to the control PC to test them out.  This proved to be a royal pain in the neck, and I had to construct some filtering/cleanup circuitry to eliminate some really bad noise.  The issue seemed to be that the ‘on’ level of the sensors I used was giving me around 1.4 volts output, and with the stepper drivers turned on, they were spewing out enough noise to bump the inputs over the TTL threshold.  I tried a few combinations of filtering caps and pullups/pulldowns, but nothing helped.  I finally had success with a simple RC filter on the input to a Schmitt triggered inverter (74LS14) that I happened to have kicking around from prehistoric times.  Seriously, that particular chip probably dates from my high school robotics hacking days, so it’s doing its ilk proud in my CNC.

Here is the final result, after EMC2 was configured properly for homing:

And here are some photos of the process:
