Symphony of Steppers

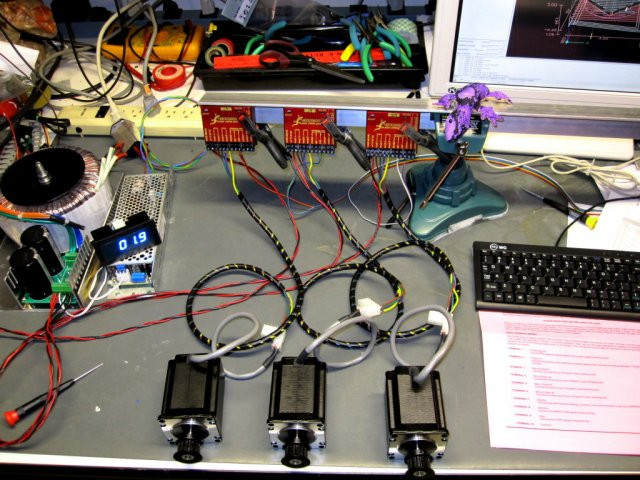

I wired up all three axes today, and also hooked up the super high quality 200V DMM module that I picked up on eBay direct from China.

Here it is whirring away to the dulcet tones of Andrew Bird from my shop speakers.  It’s running the torus demo from the EMC2 live CD.
